XCMG XGTC 60-AU

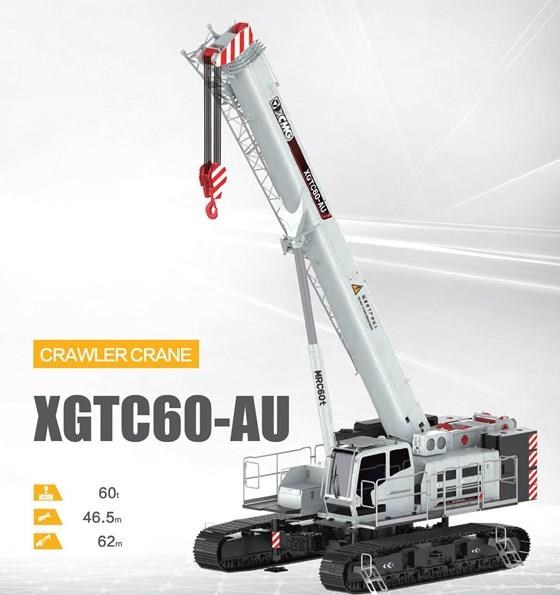

XCMG XGTC60-AU Telescopic Crawler Crane
PRODUCT OVERVIEW

The XGTC60-AU Telescopic Crawler Crane is a highly versatile 60-tonne class lifting solution designed for projects that require strong lifting performance, compact transport dimensions, and excellent mobility on soft or uneven ground.

Manufactured by XCMG, the XGTC60-AU combines the fast setup advantages of a telescopic boom crane with the stability and low ground pressure benefits of a crawler undercarriage. This makes it an ideal solution for civil construction, infrastructure projects, industrial maintenance, and shutdown work across Australia.

Powered by a Cummins B6.7 EU Stage V engine, the XGTC60-AU delivers reliable performance, reduced emissions, and excellent fuel efficiency while maintaining smooth, precise lifting control.

KEY SPECIFICATIONS
Maximum Rated Lifting Capacity: 60 tonnes
Maximum Lifting Moment: 2,205 kN·m
Main Boom Length: 12 46.5 metres
Fixed Jib Length: 9.5 m / 16 m
Maximum Boom + Jib Length: 62.5 metres
Engine: Cummins B6.7 209 kW @ 2,200 rpm (EU Stage V)
Maximum Travel Speed: 2.4 km/h
Gradeability: 45%
Crawler Shoe Width: 760 mm
Average Ground Pressure: approx. 0.08 MPa
Total Operating Weight: approx. 68.4 tonnes
FEATURES & BENEFITS
Telescopic Boom Design Fast setup and efficient operation without lattice boom assembly delays.
Crawler Undercarriage Excellent stability and low ground pressure for soft or uneven ground conditions.
Advanced Electro-Hydraulic Control System Smooth, precise lifting and slewing performance.
360° Slewing Capability Strong slewing bearing with soft start and stop control.
Operator-Focused Cabin Air-conditioned tilt-up cab with excellent visibility and ergonomic controls.
Flexible Counterweight Configuration Up to 19.5 tonnes with self-assembly capability.
Comprehensive Safety Systems Load moment indicator, virtual wall, cameras, fault diagnostics, and interlock protection.
