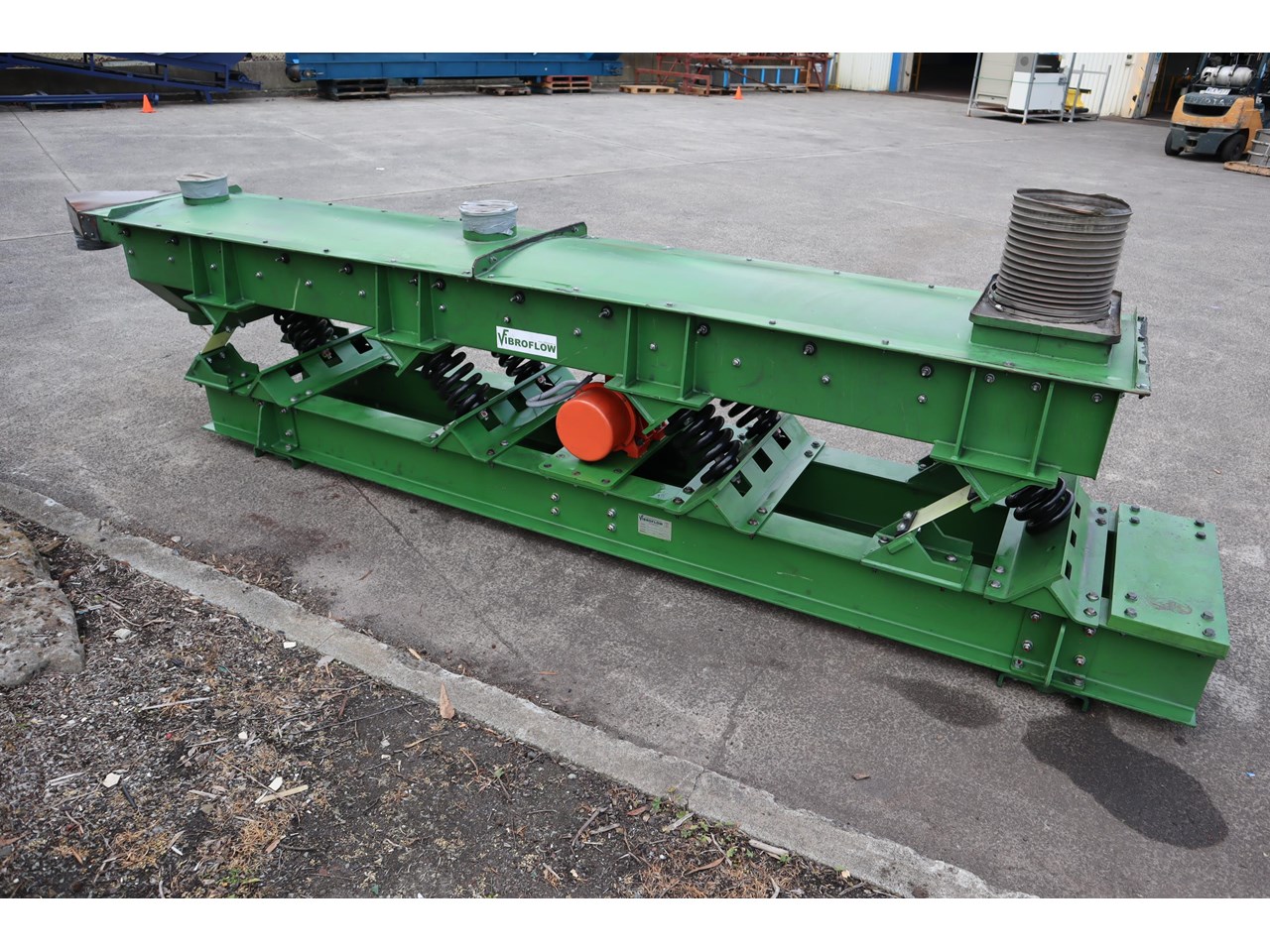

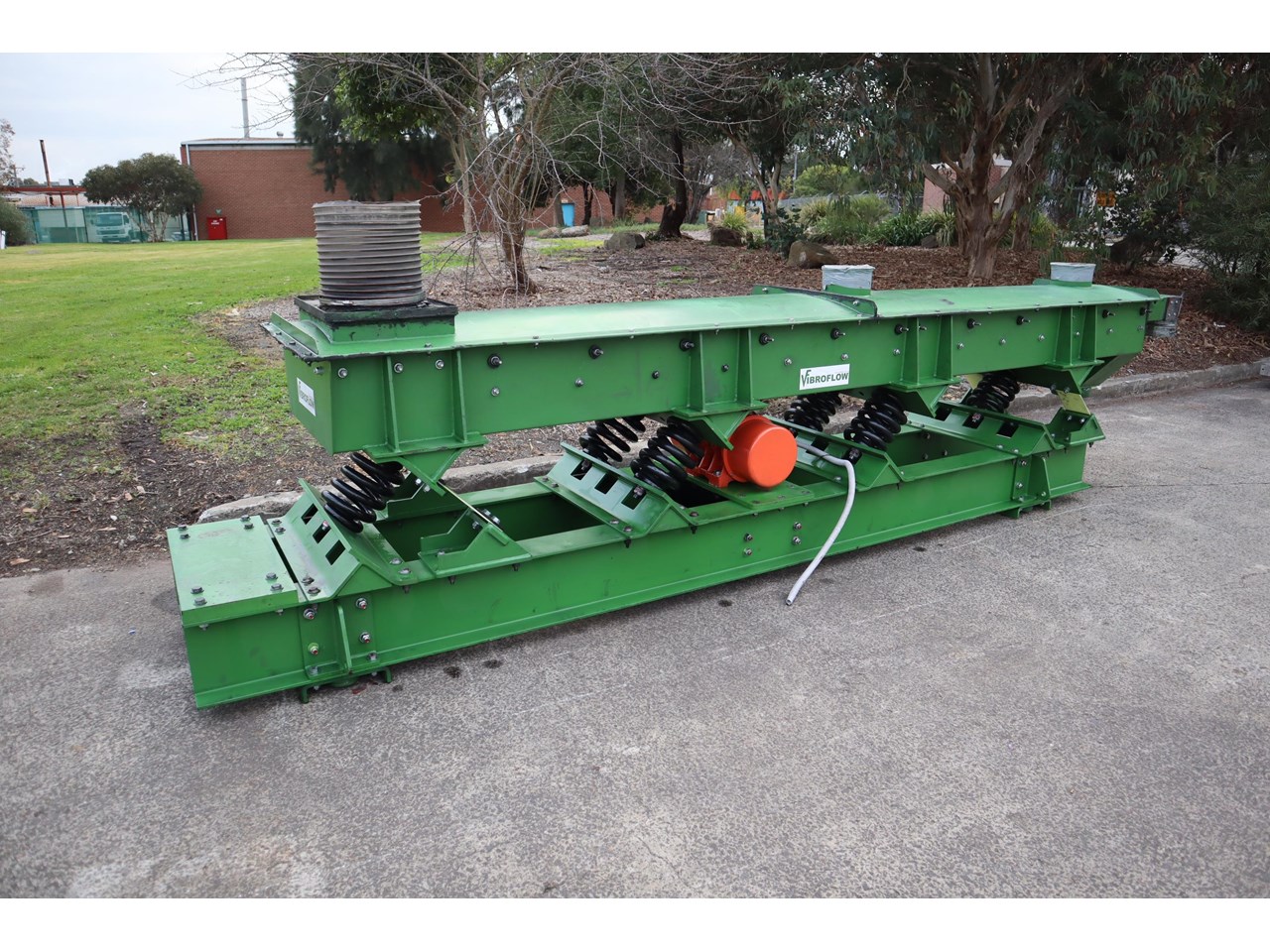

VIBROFLOW VSB-60/400 4M VIBRATING VIBRATORY TRAY FEEDER SCREENER

This vibratory feeder is in excellent working condition. It was previously used at a battery recycler which was sizing shredded Lithium Ion batteries.

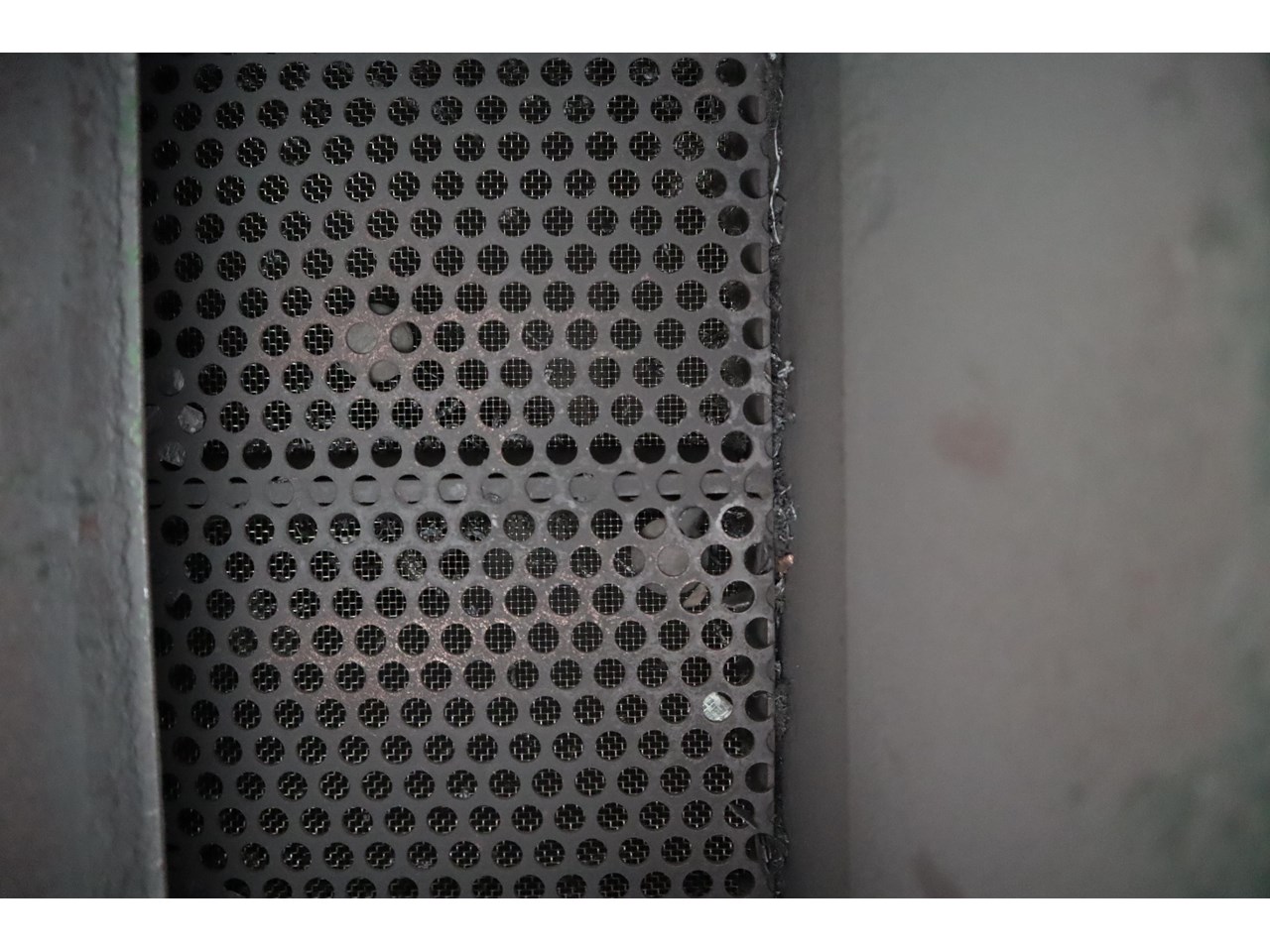

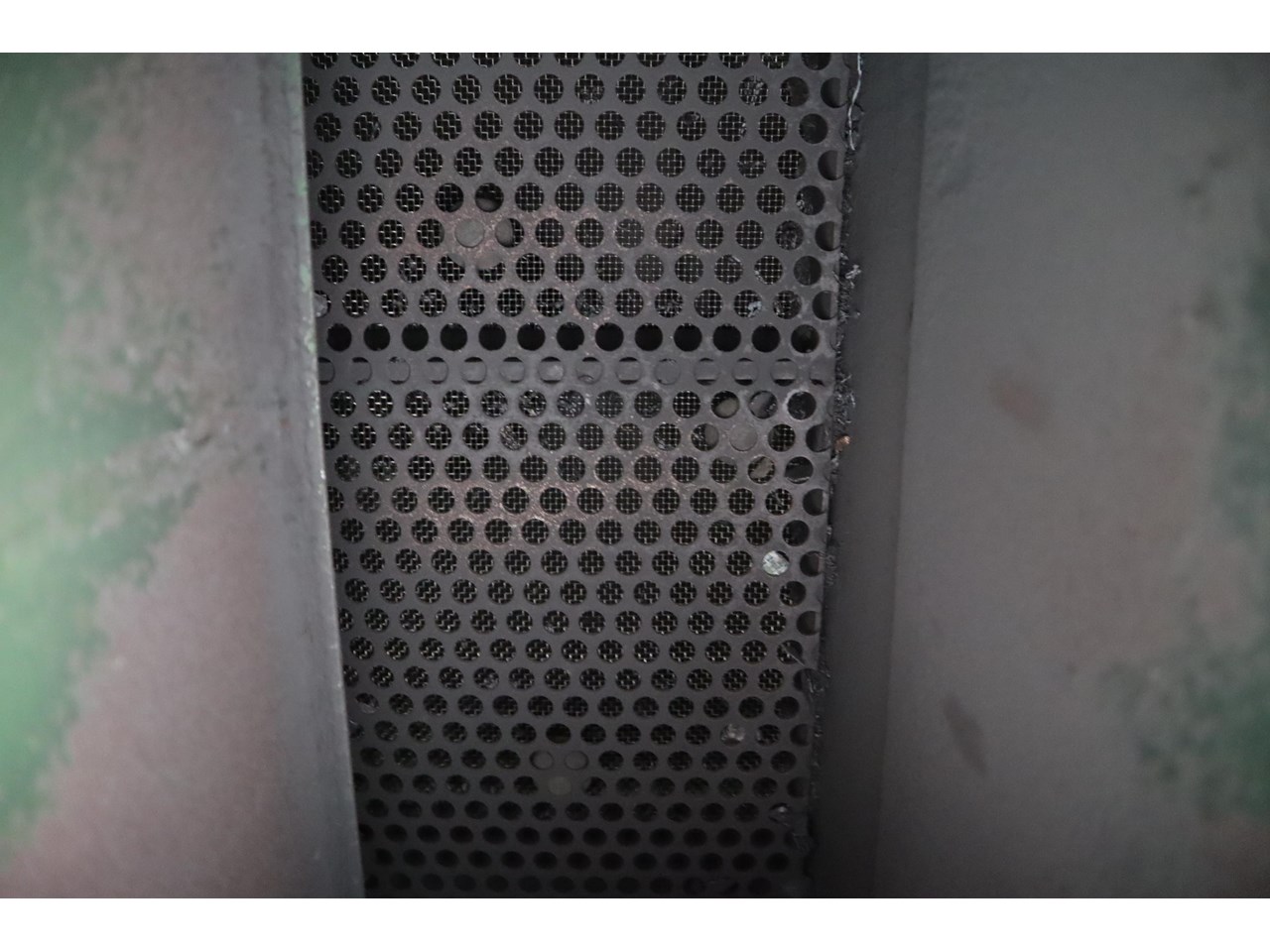

Fitted with a 0.5mm aperture woven wire mesh and a rubber ball deck system installed directly below the woven wire mesh.
This provides for a constant cleaning of the screening surface as the vibration of the screen causes the rubber balls to bounce uncontrollably in all different directions thus hitting almost every region of the screening surface and thus shooting out the particles that get pegged in the fine mesh screen.

It separates contents via a mesh and screen sheet that sits inside the tray. Fine/small contents fall through the screen and out of the first outlet, larger contents vibrate out the second one.

Features:

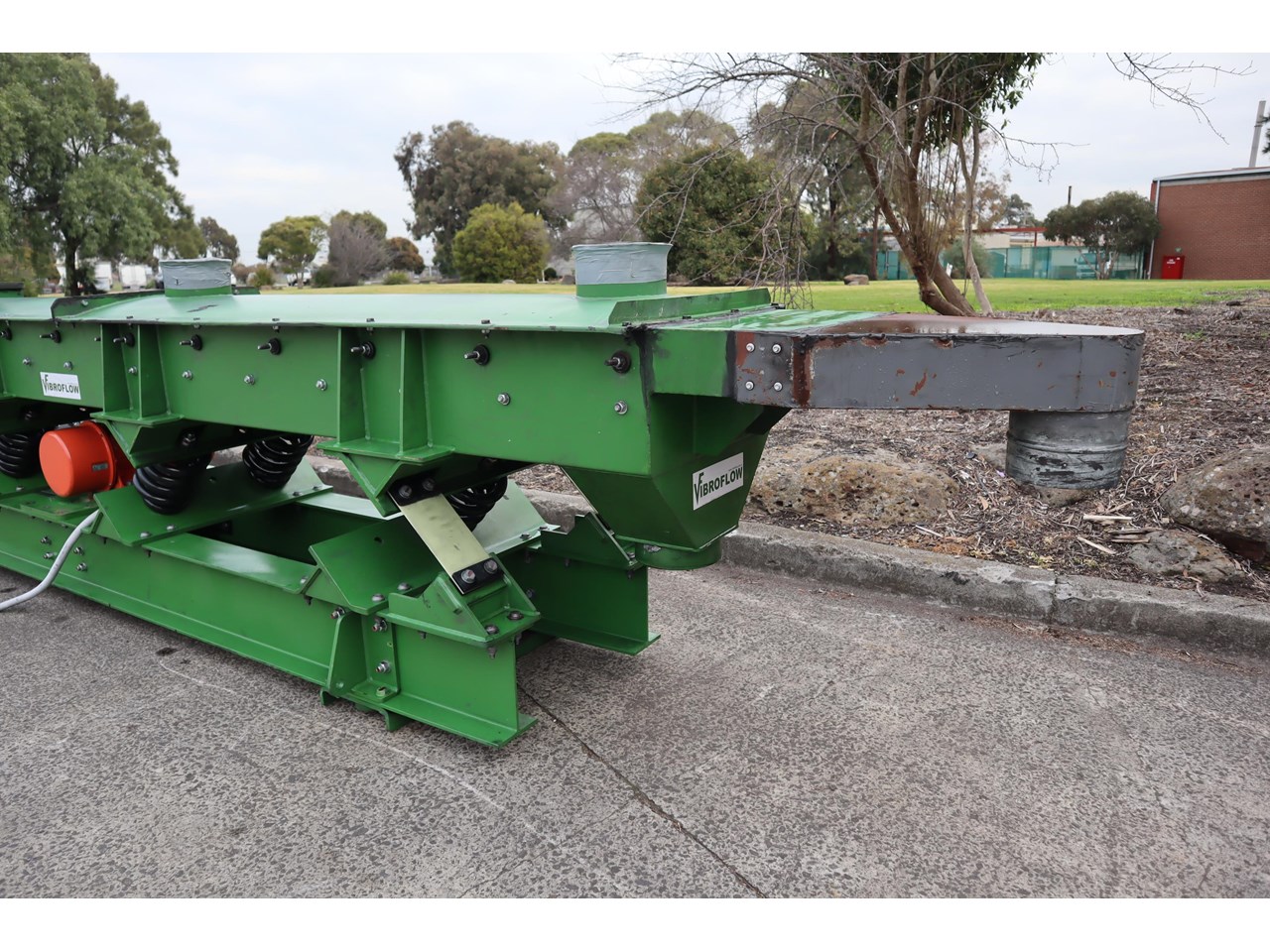

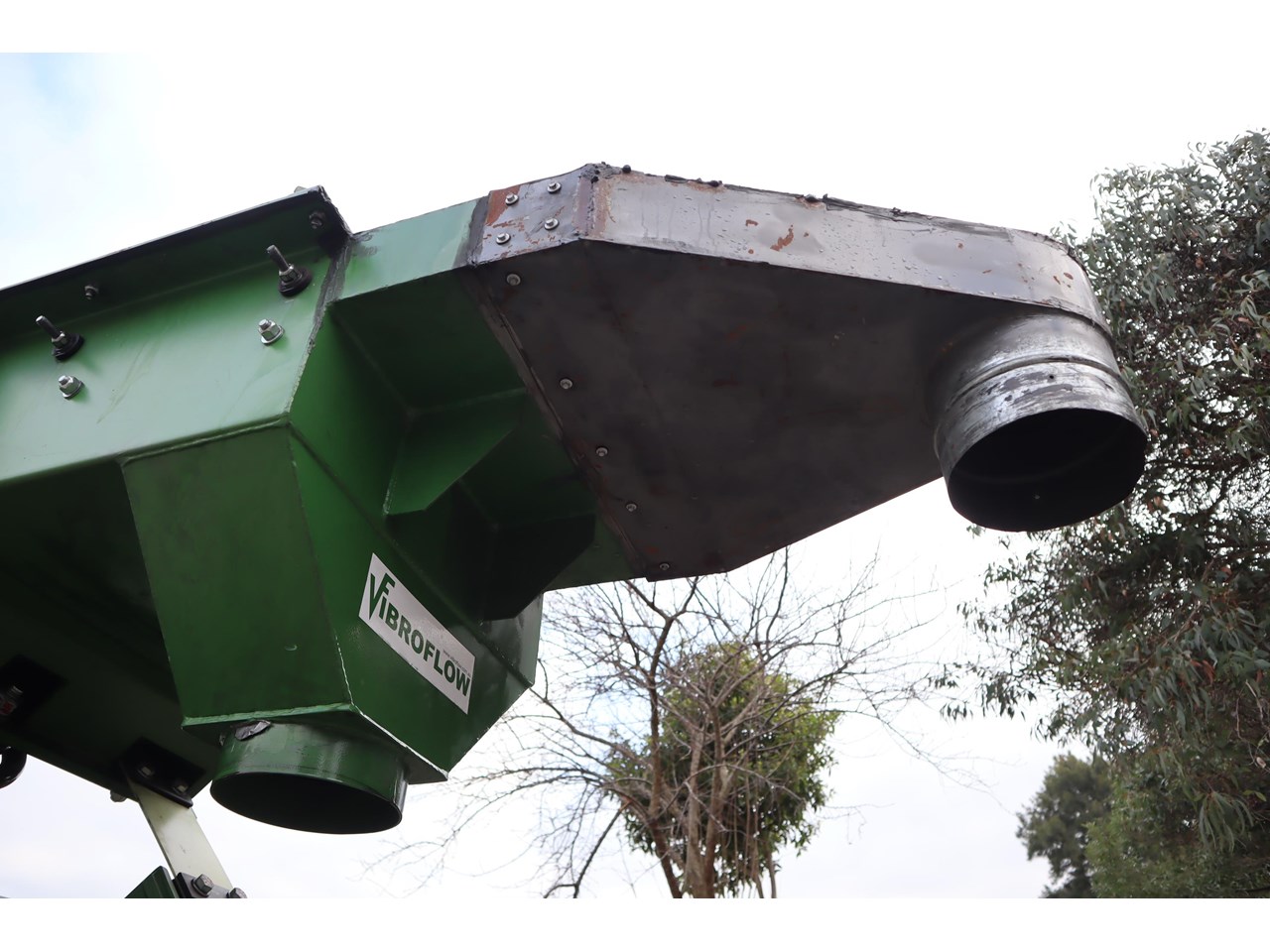

Over end discharge chute for oversize.
Discharge chute for under size material.
0.5mm aperture woven wire mesh with rubber ball deck system.

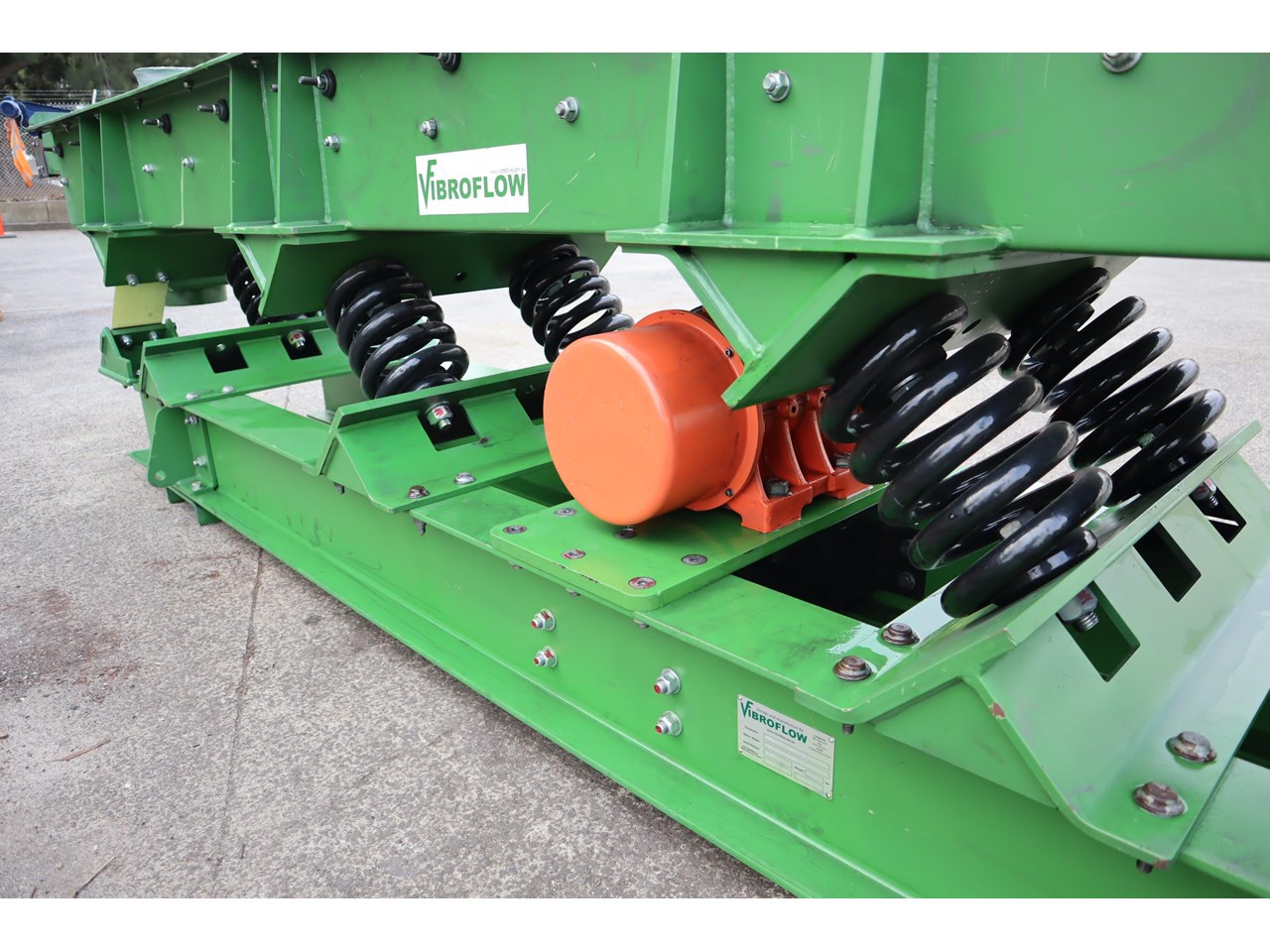

Two out of balance vibratory motors.
Steel covers with dust extraction tubes and product inlet chute.

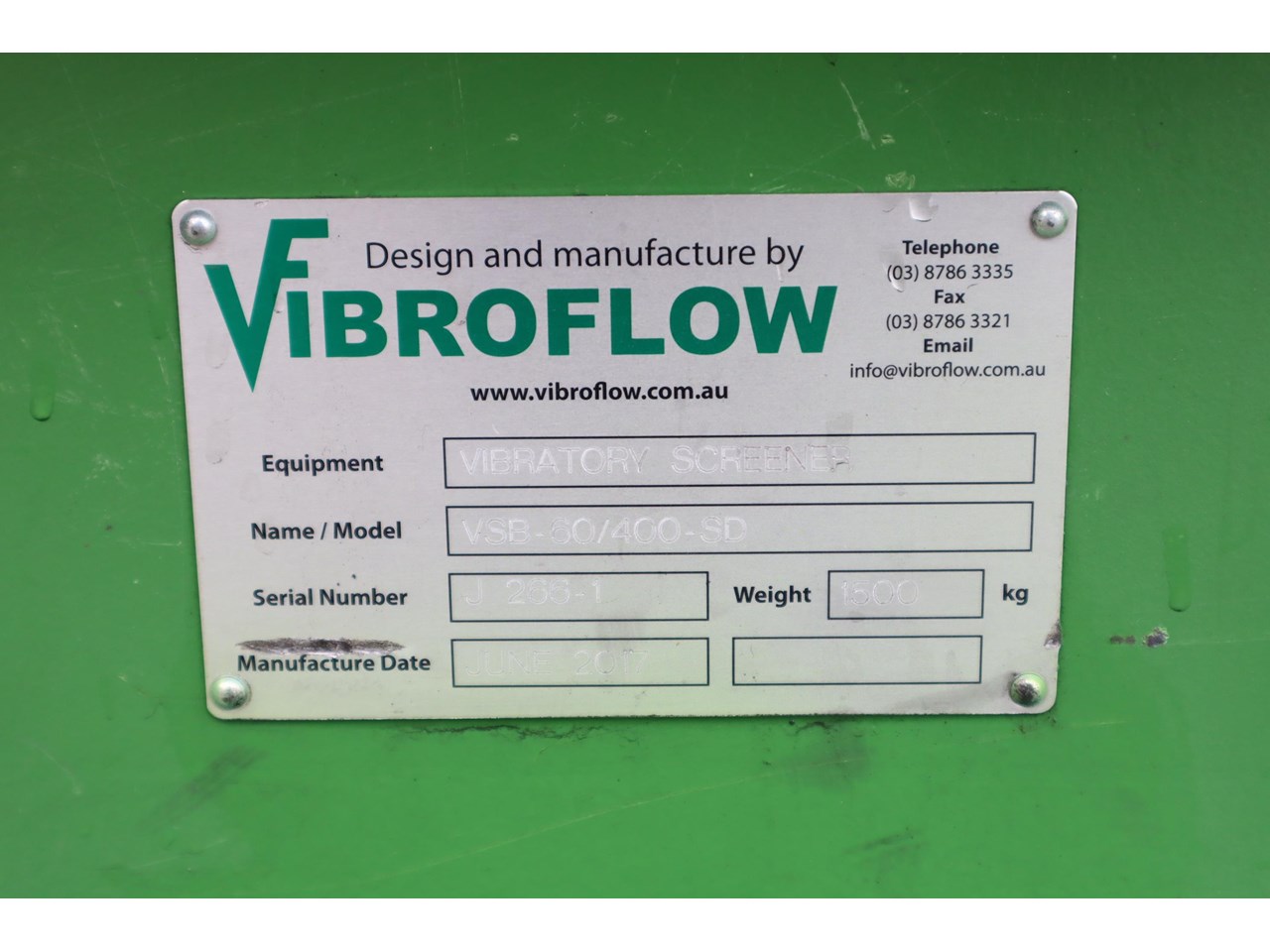

Make: Vibroflow
Model: VSB-60/400-SD
Year: 2017
Made in Australia

Tray Size: 4000 long x 600mm wide
Inlet Diameter: 300mm
Outlet Diameter: 200mm
Capacity: 20 tph

Mesh Aperture: 0.5mm
Screen Hole Diameter: 14mm

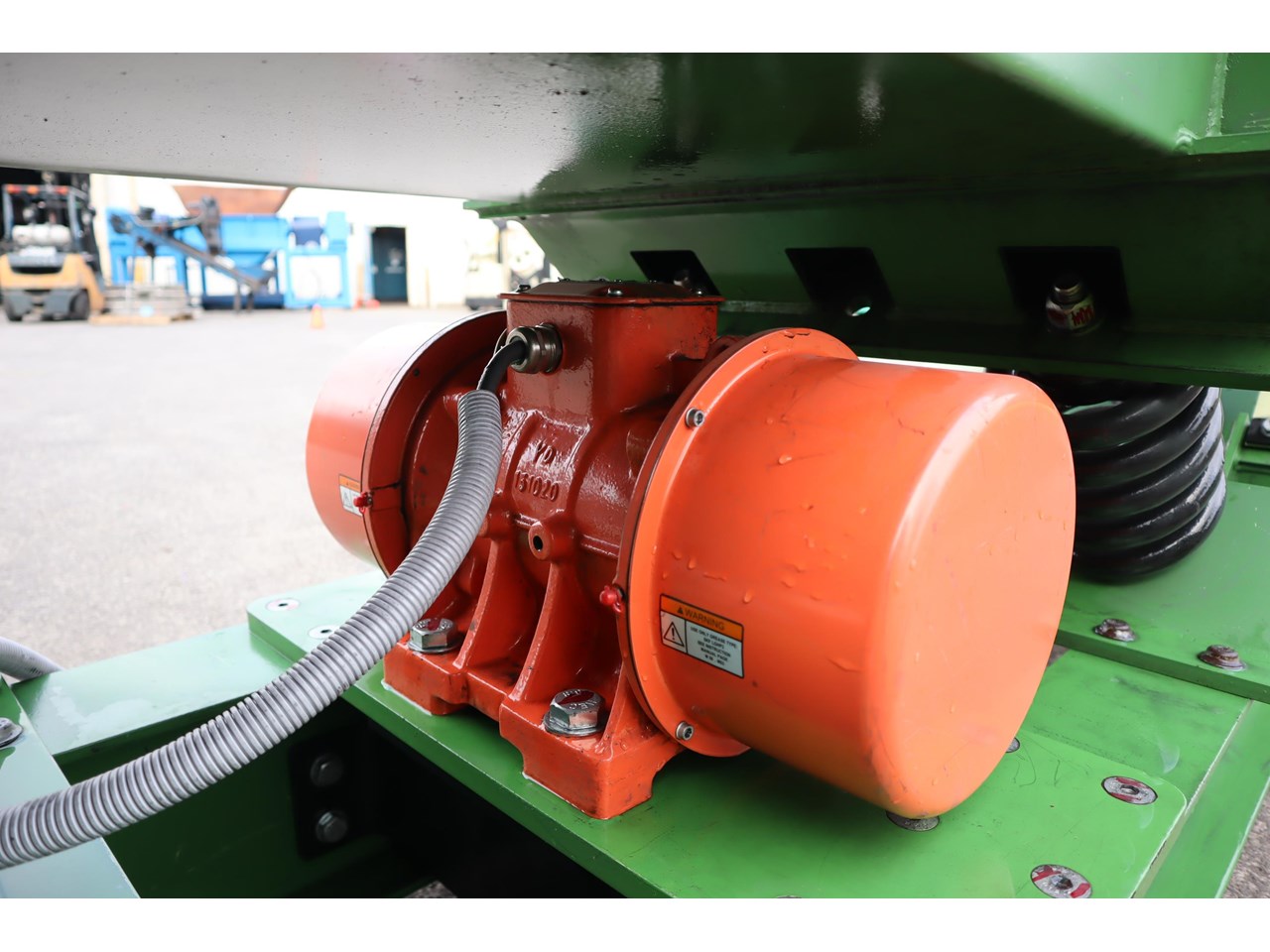

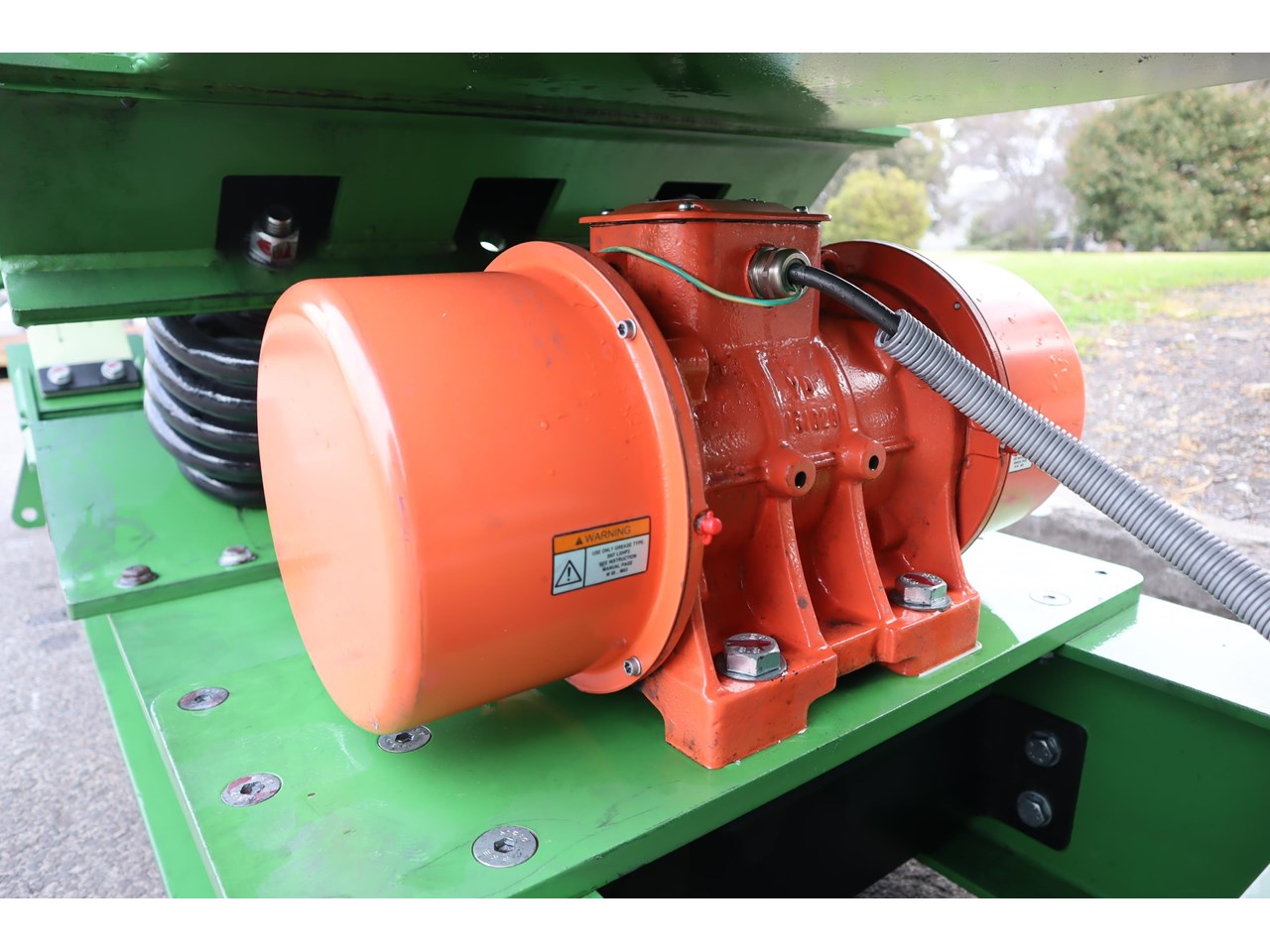

Vibratory Motor: 415V 1.2kW

Weight: 1500kg

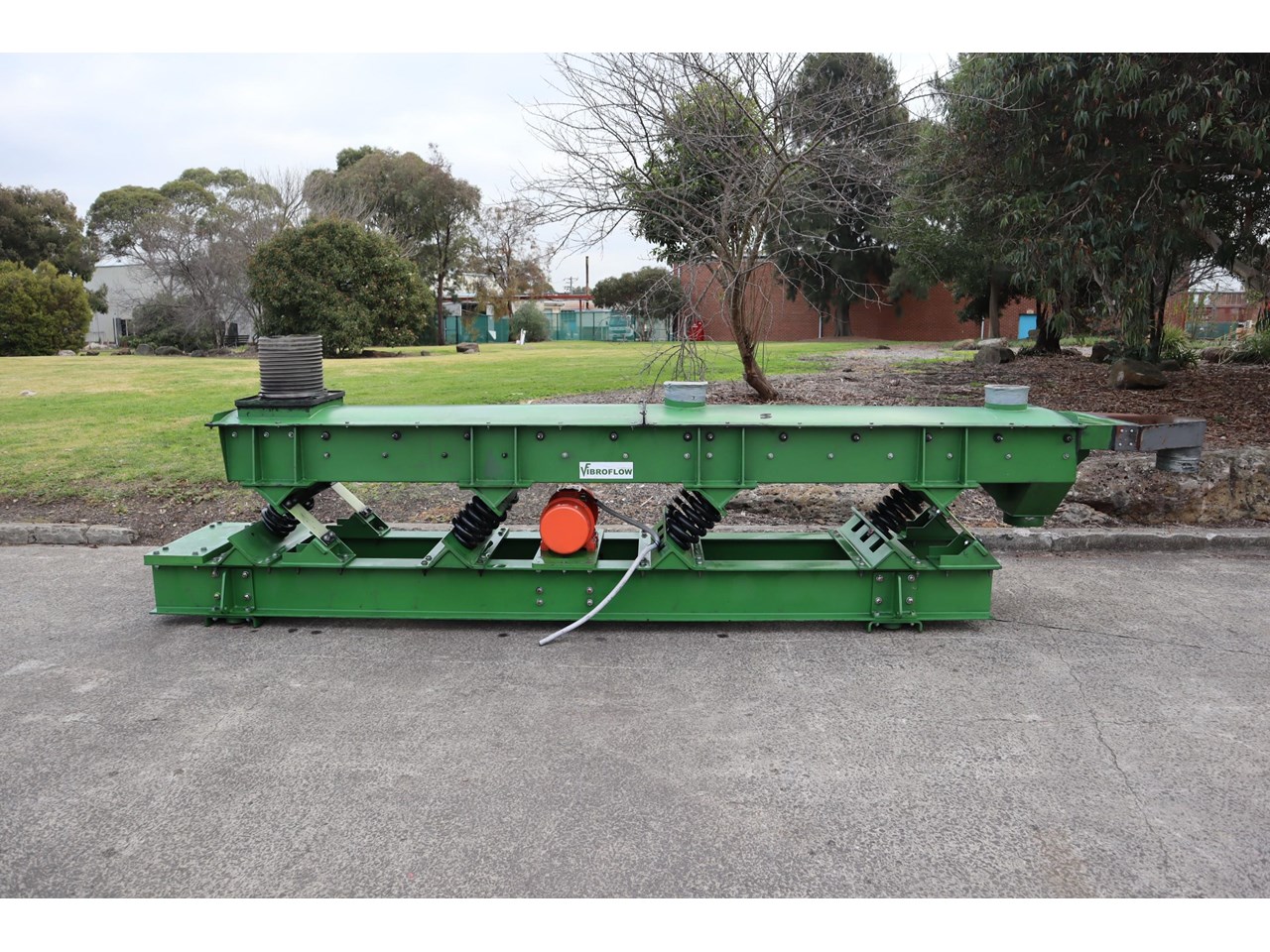

Overall Dimensions (mm): 5300 l x 750 w x 1400 h
