TOOLMASTER METAL LATHE TOOLS AND ACCESSORIES

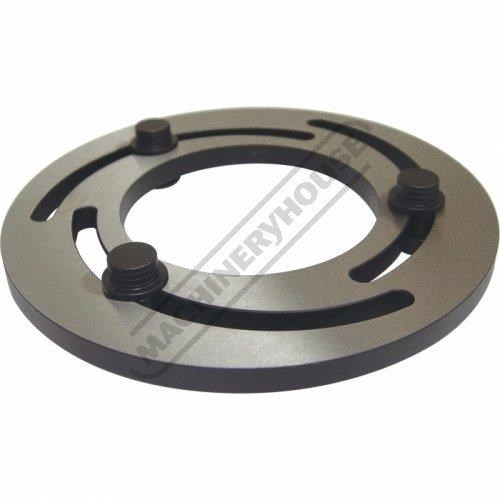

Lathe - Boring Ring for Chuck Soft Jaws ??6`` (??150mm) TOOLMASTER Lathe - Boring Ring for Chuck Soft Jaws ??6`` (??150mm) CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: L763 To suit any lathe that uses soft jaws. The ring is used to hold the jaws in place so the the soft jaws can be machined to a certain size. Material SCM440 Features: Maintains a high level of accuracy The operation process is as follows 1. Set the jaws to the correct position that will allow the diameter required to be machined. 2. Adjust the boring ring so that the pins are located in the recessed hols in the jaws. 3. Lock the chuck so that the boring ring is clamped. 4. Machine the jaws to the required size. 5. Unlock the chuck and remove the boring ring 6. If the process is followed the jaws will repeat the accuracy each time the chuck is closed onto the work piece. Specifications: ORDER CODE: L763 Size (inch): 6`` A (mm): 12 B (mm): 168 C (mm): 80 D (mm): 12 E (mm): 32 F (mm): 9 G (mm): 16.5 Nett Weight (kg): 1.6 To Purchase Online Please Visit The Machineryhouse Website & Search For 'L763' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
