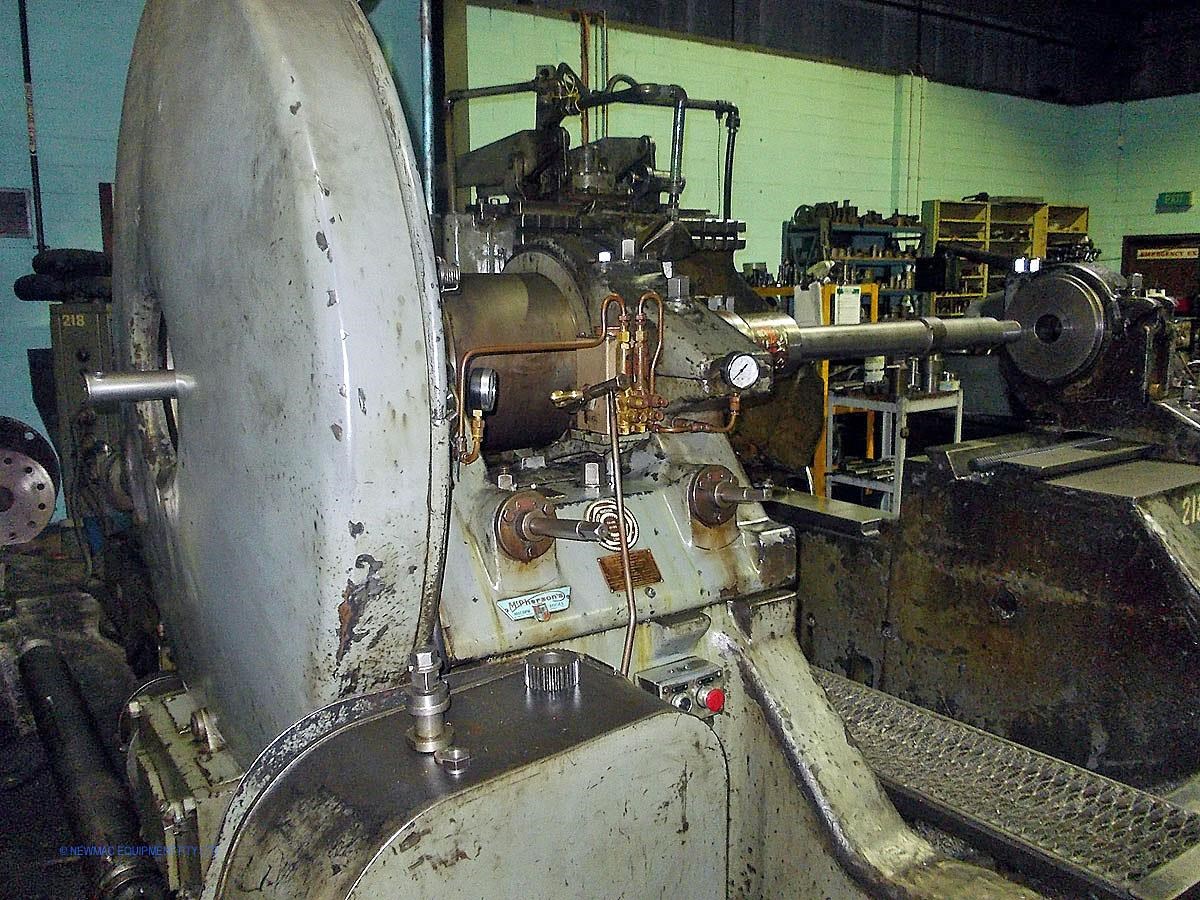

SUNDERLAND NO.27 GEAR PLANNER

We have a very good used condition, Sunderland model 27SDH gear planner for sale

Specification & info as follows:

The machine is very well equipped
1. One head/slide for cutting Spur/single helical gears max face width 380mm (15) / max pitch 1 DP (25 Mod)
a. For single helical gears the max. helical angle is + or 30 deg.
2. One head/slide for double helical gears max face width 380mm (15) / max pitch 1.5 DP ( 16 Mod) / helical angle 30 deg.
3. Two cutter heads single acting and double acting
4. Rim/work steady rests for cutting large diameter gears

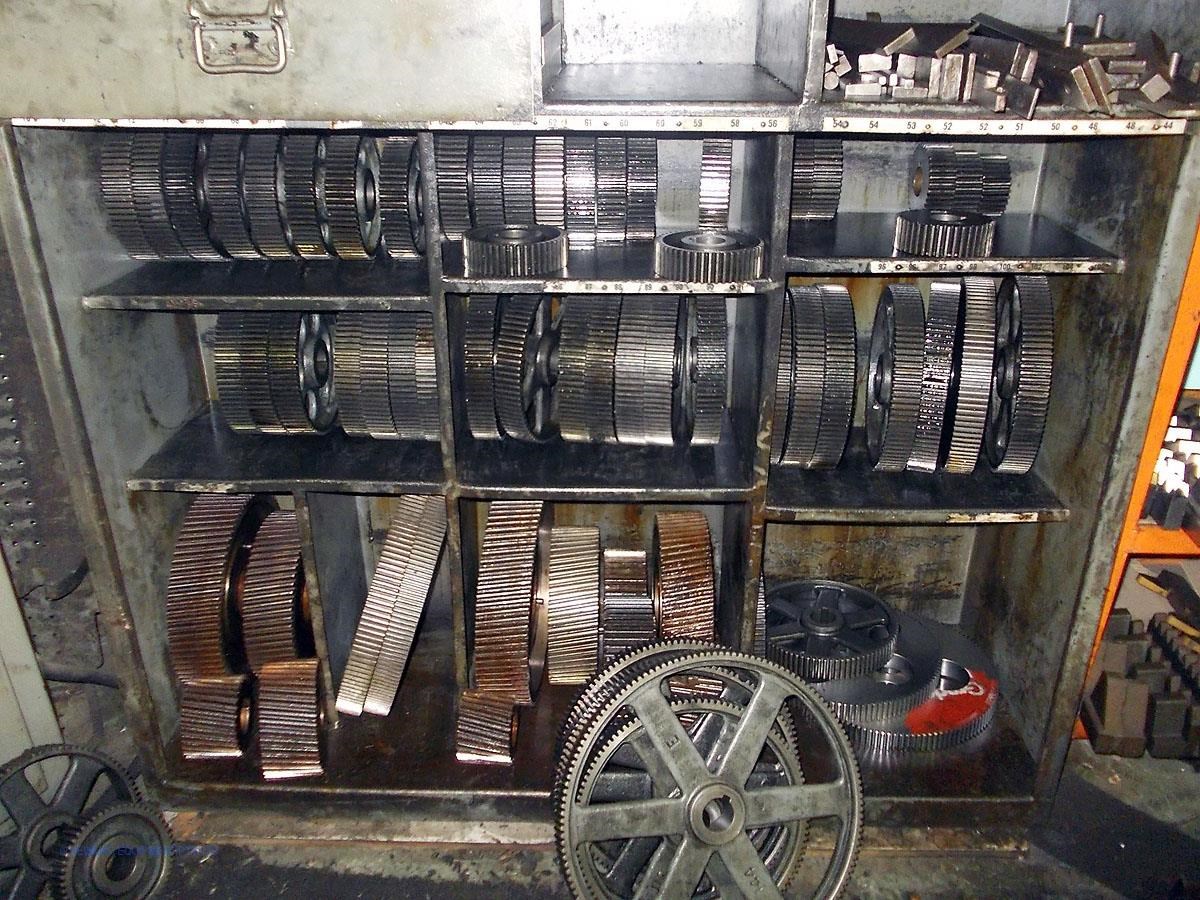

5. Change gears full set (approx. 60 gears)
6. Speed gears (for different cutting speeds) 5 sets
7. Cutting trips 5 or 6 for different length faces (up to 15 face)
8. 4 and 6 work arbours with bushes for outer work support
9. Operation manual and work charts (for spurs/helicals and double helical gears)

Machine serial number: BB471 it was built in the mid 1960s

Please note this machine is not in our warehouse, but we are happy to arrange an appointment for inspection of the machine if required.

Please feel free to call us for more information
