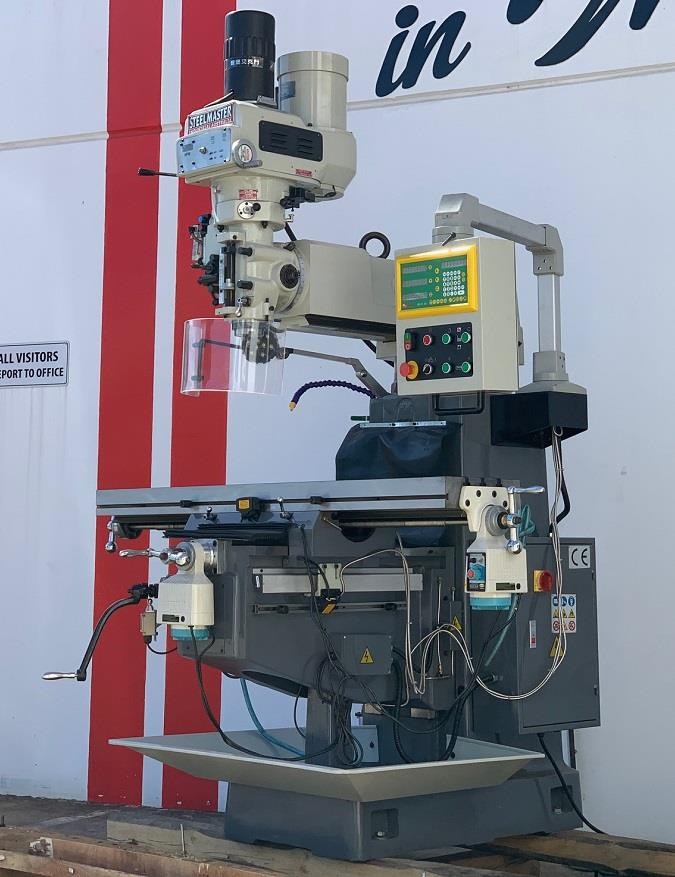

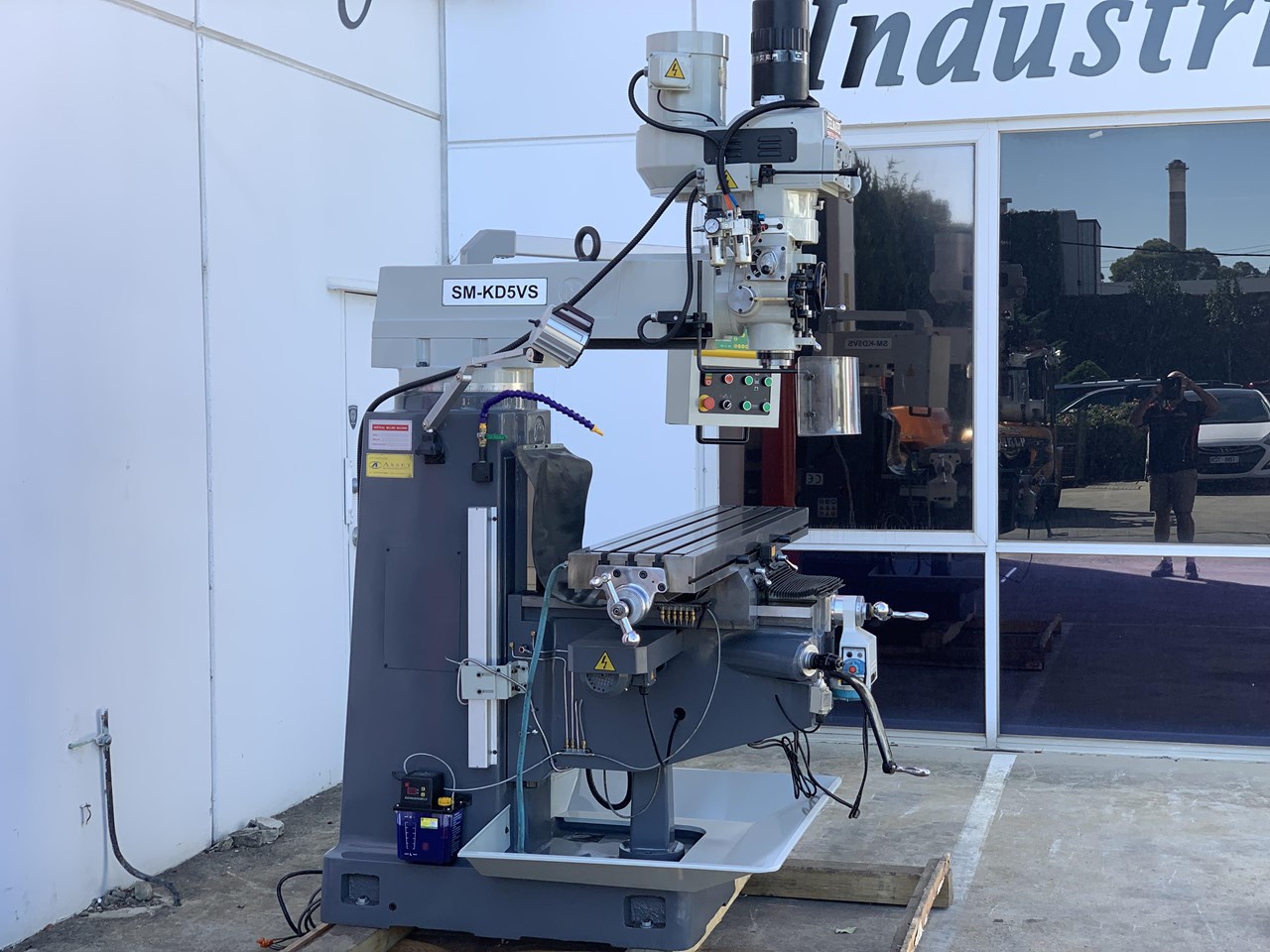

2024 STEELMASTER SM-KD5VS-PDB POWER DRAW BAR FITTED Turret Milling Machine
Finance Estimate
From $120.68*
per week
From 8.62% p.a. #
comparison rate
Interest rate from 7.90% p.a.,
5 year term, 20% deposit.
Get my Online Quote »
* # View disclaimer
* This weekly repayment estimate is provided by Stratton Finance Pty Ltd (ABN 63 070 636 903, Australian Credit
Licence no. 364340) ("Stratton"). Stratton is a finance broker.
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.62% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.62% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
Finance Estimate
From $120.68*
per week
From 8.62% p.a. #
comparison rate
Interest rate from 7.90% p.a.,
5 year term, 20% deposit.
Get my Online Quote »
* # View disclaimer
* This weekly repayment estimate is provided by Stratton Finance Pty Ltd (ABN 63 070 636 903, Australian Credit
Licence no. 364340) ("Stratton"). Stratton is a finance broker.
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.62% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.62% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
Contact Seller
Features
| Title | 2024 STEELMASTER SM-KD5VS-PDB POWER DRAW BAR FITTED Turret Milling Machine |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | STEELMASTER |
| Model | SM-KD5VS-PDB POWER DRAW BAR FITTED |
| Series | Turret Milling Machine |
| Year | 2024 |
| Sale Price | 22850+ $25,135 + GST |
| Listing Type | New |
| Stock Number | 13-0106PDB |
| RefCode | TA963647 |
Description
Description.
Price is subject to GST.

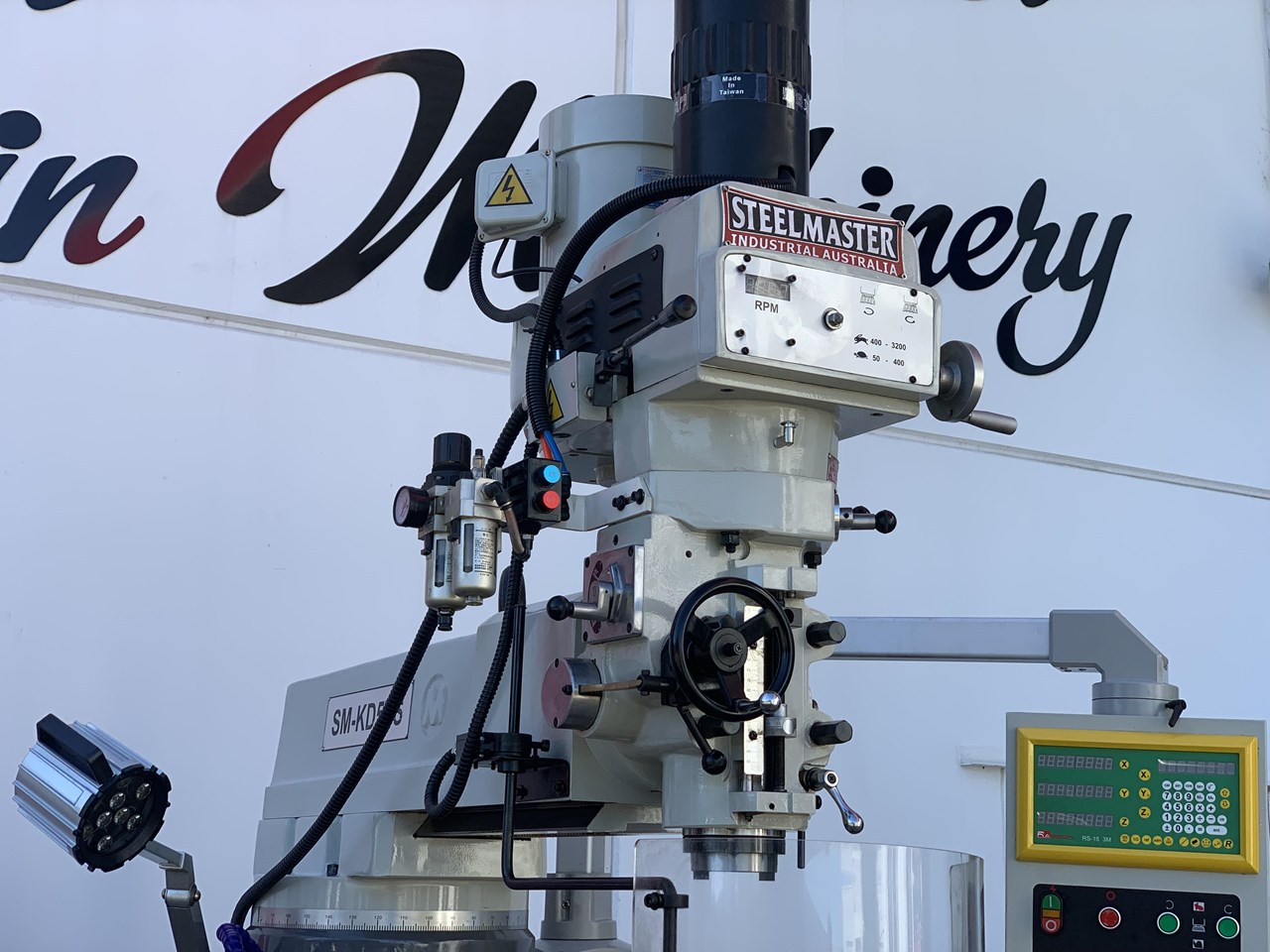

This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. With a large 147mm quill travel standard and power draw bar fitted. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.
Features.

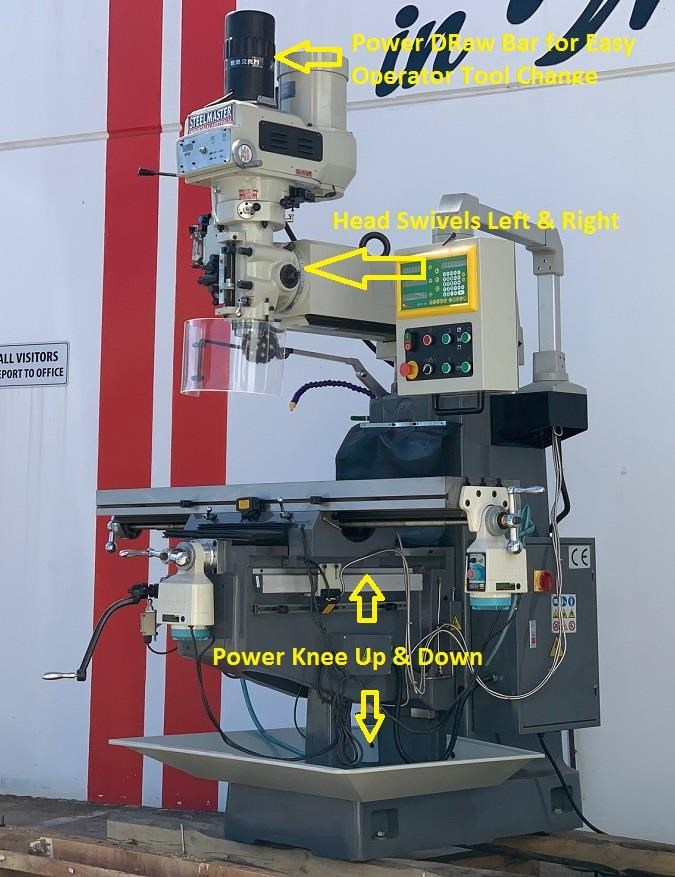

power draw bar fiited
3 axis DRO fitted standard

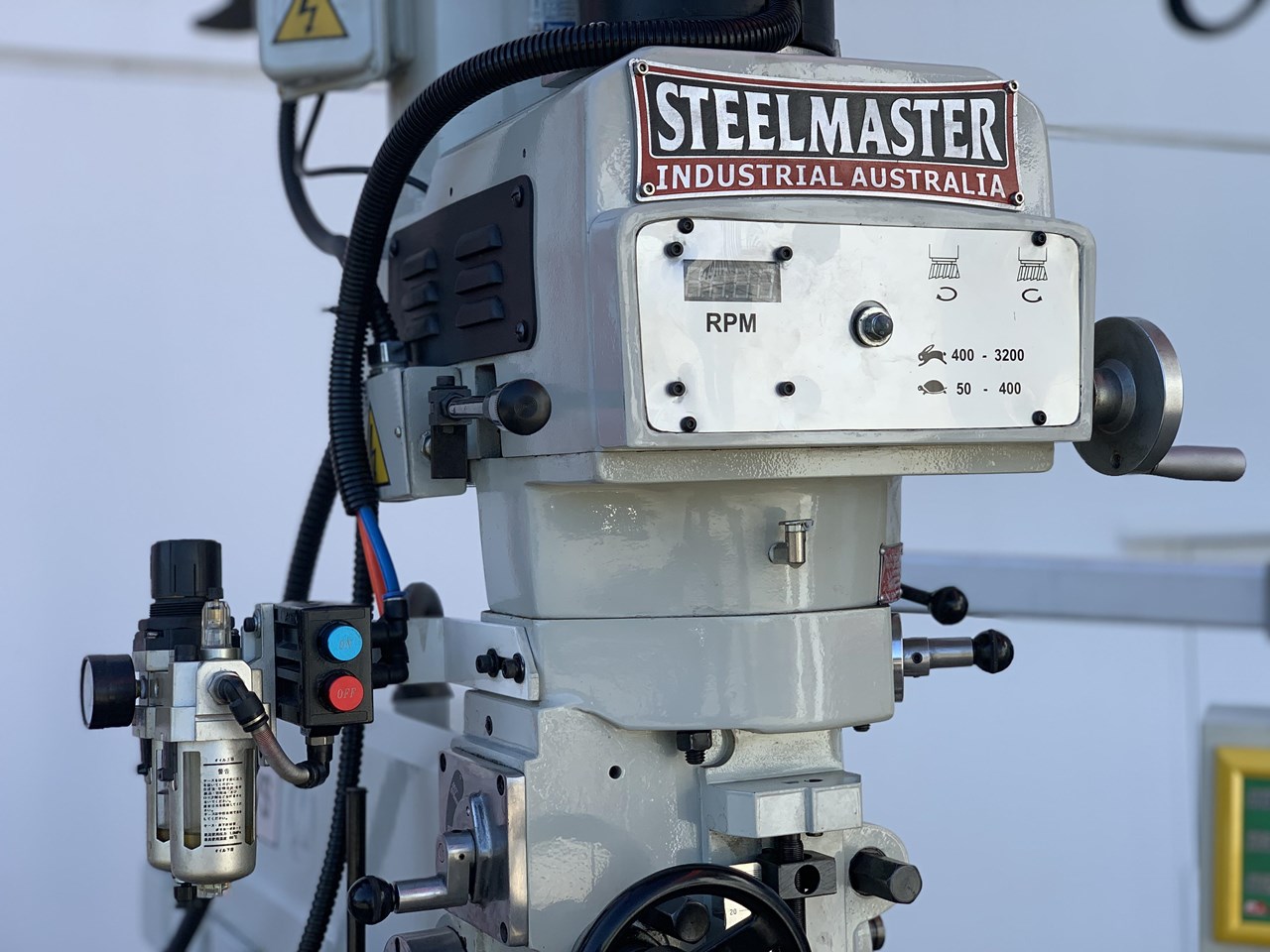

infinitely variable speed drive head with digital display
Taiwanese head and quality Meehanite cast frame

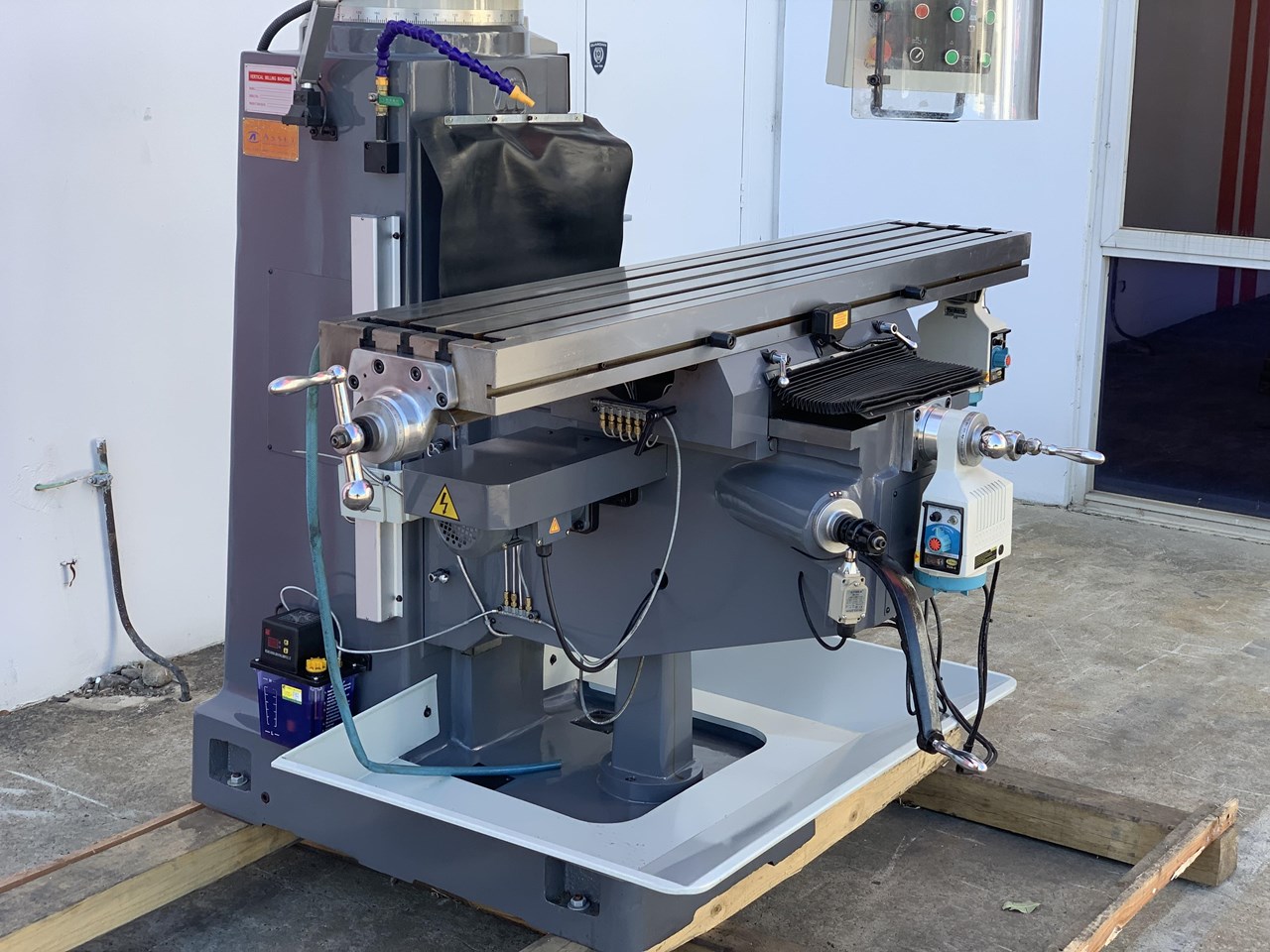

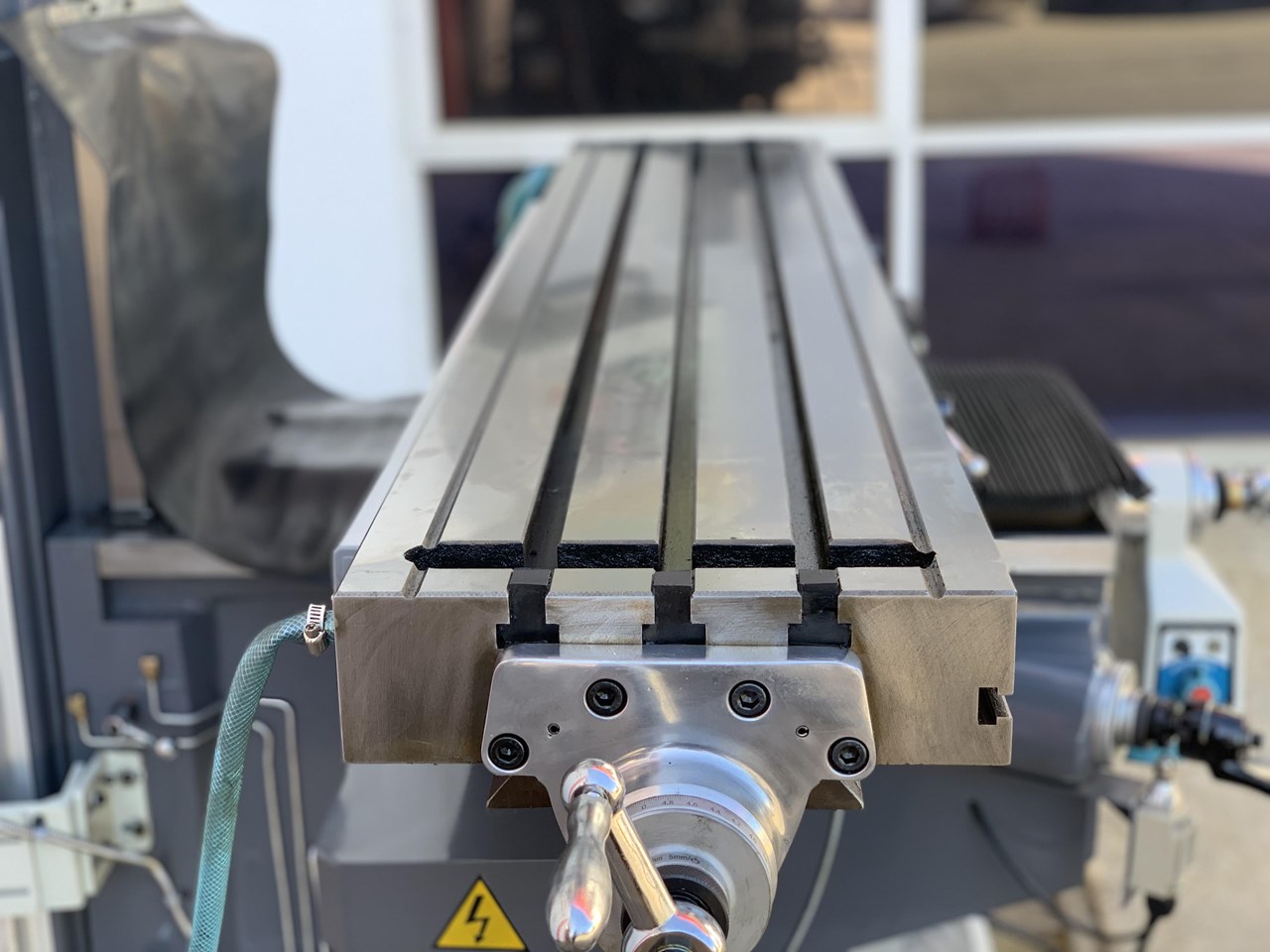

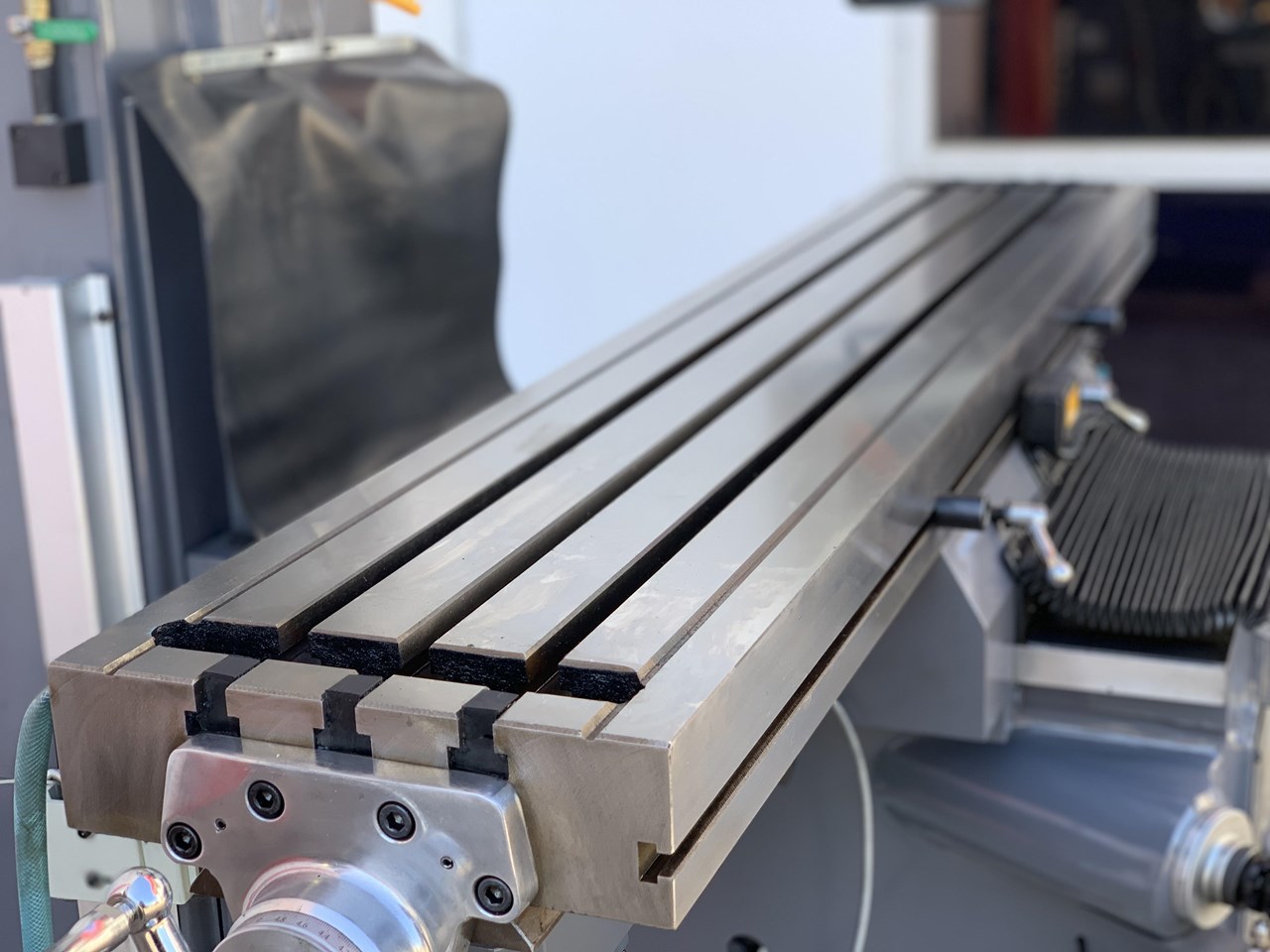

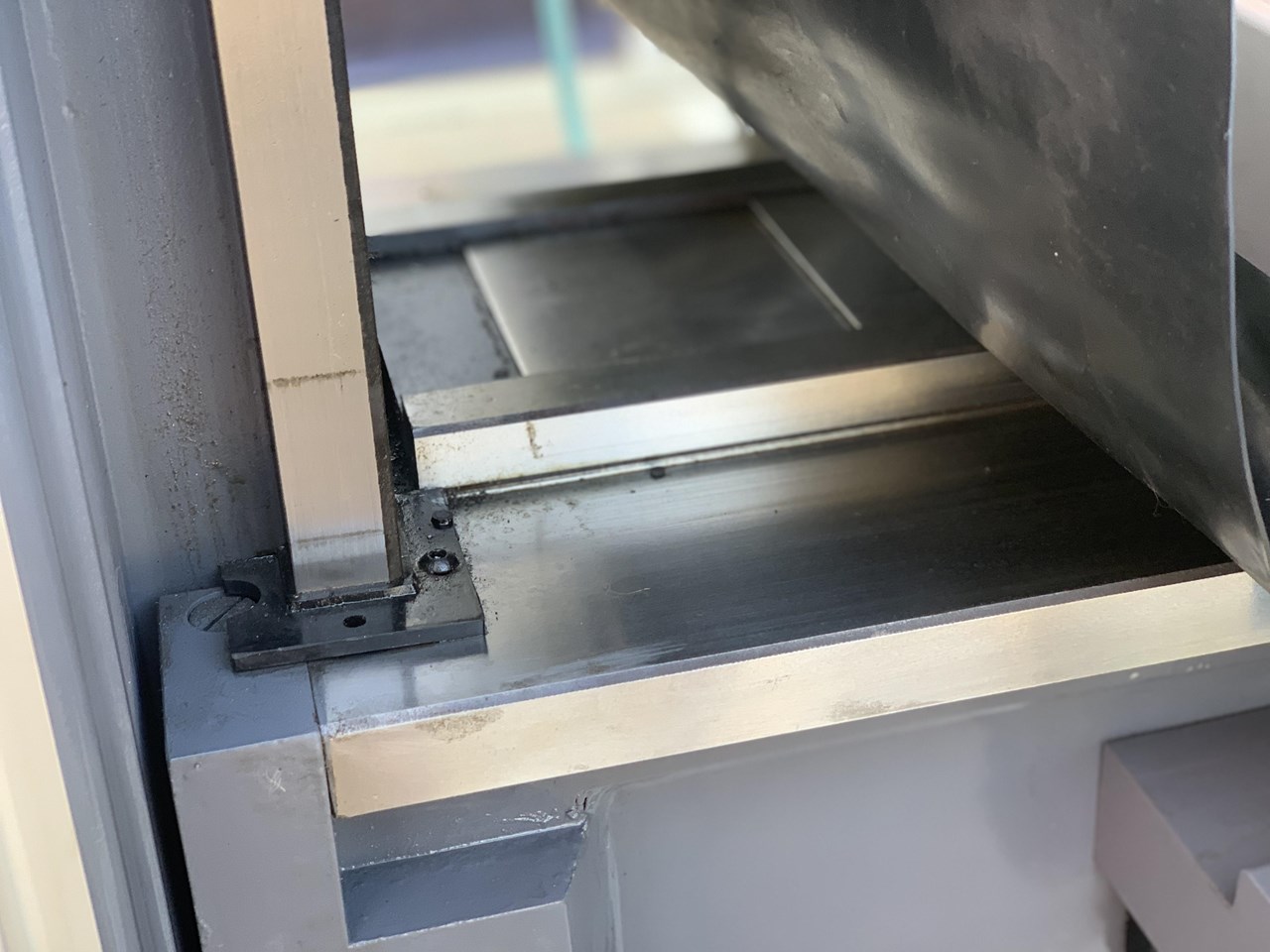

solid, precise cross table with ground surface
precisely ground carriage guides with adjustable square guides

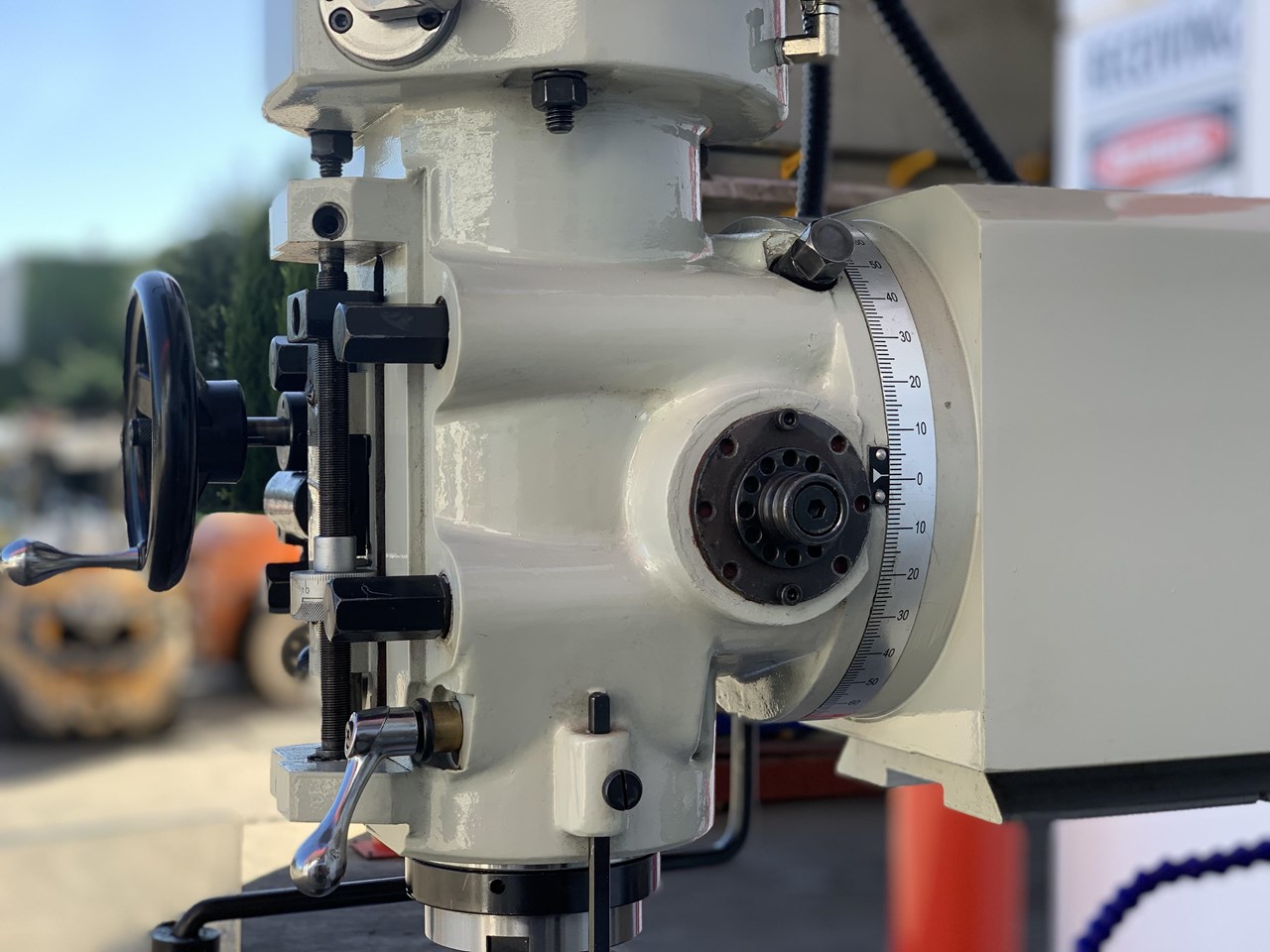

head swivels to left and to right
head tilts ±45° front to back

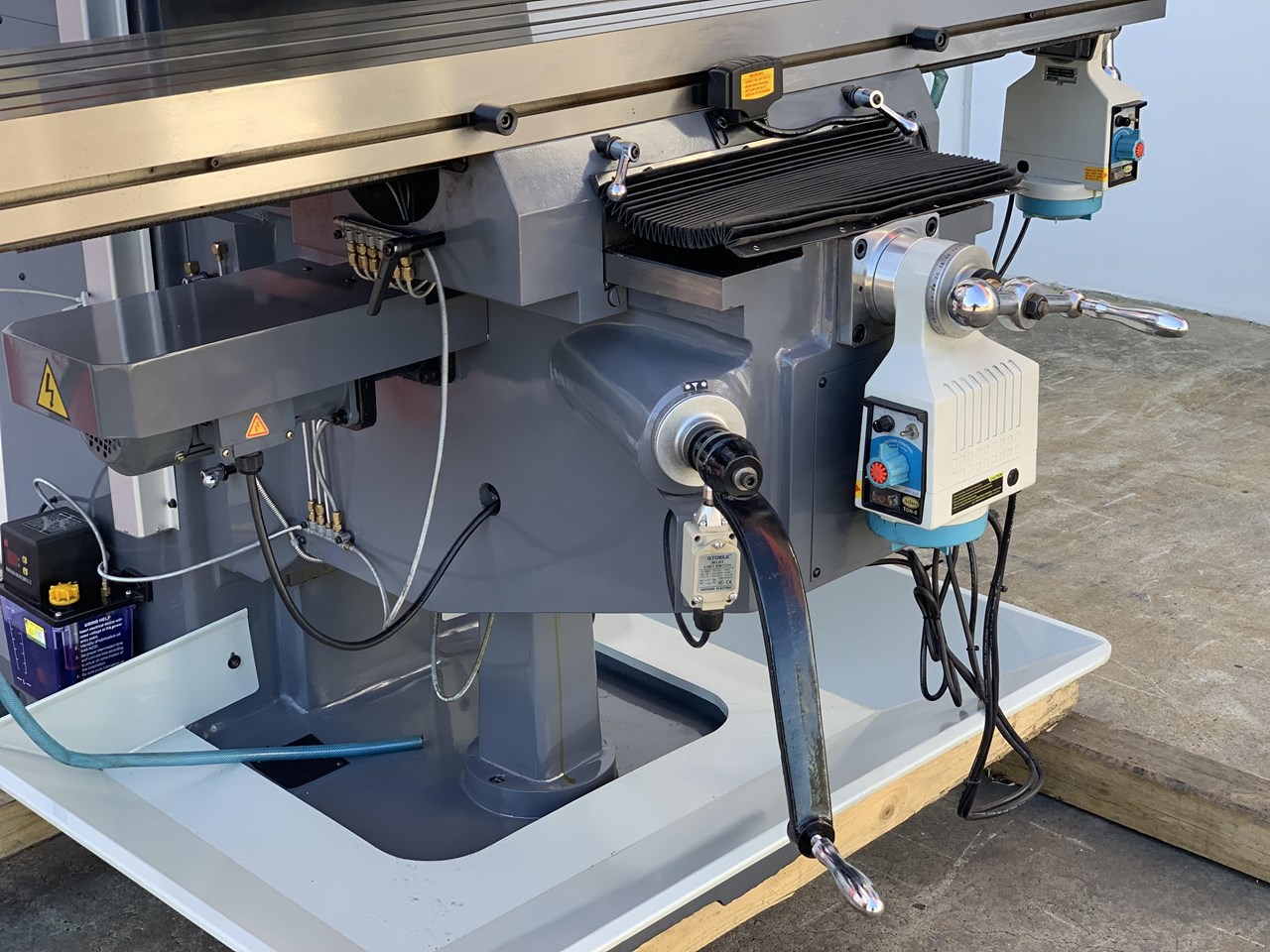

x & y axis feed standard

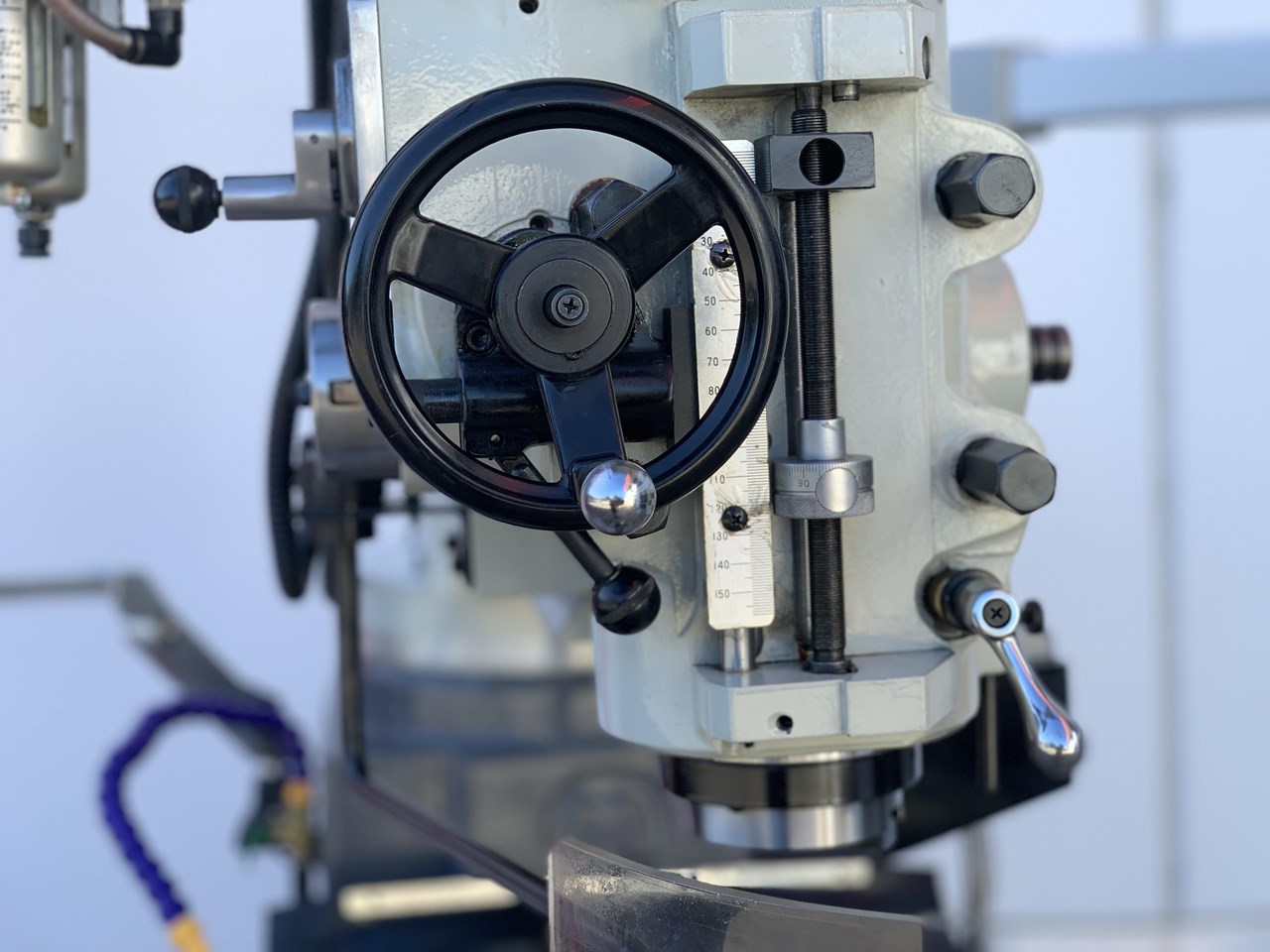

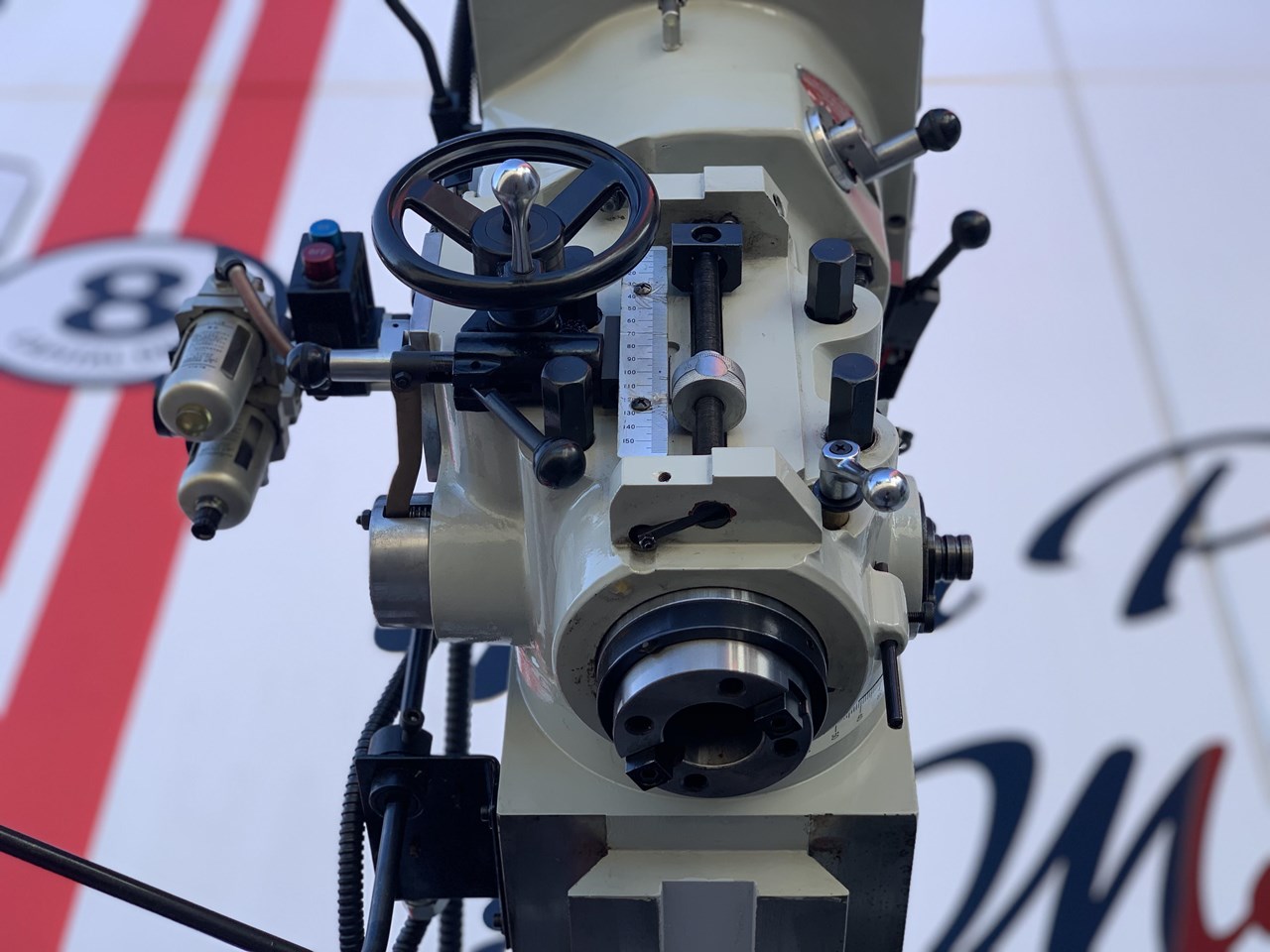

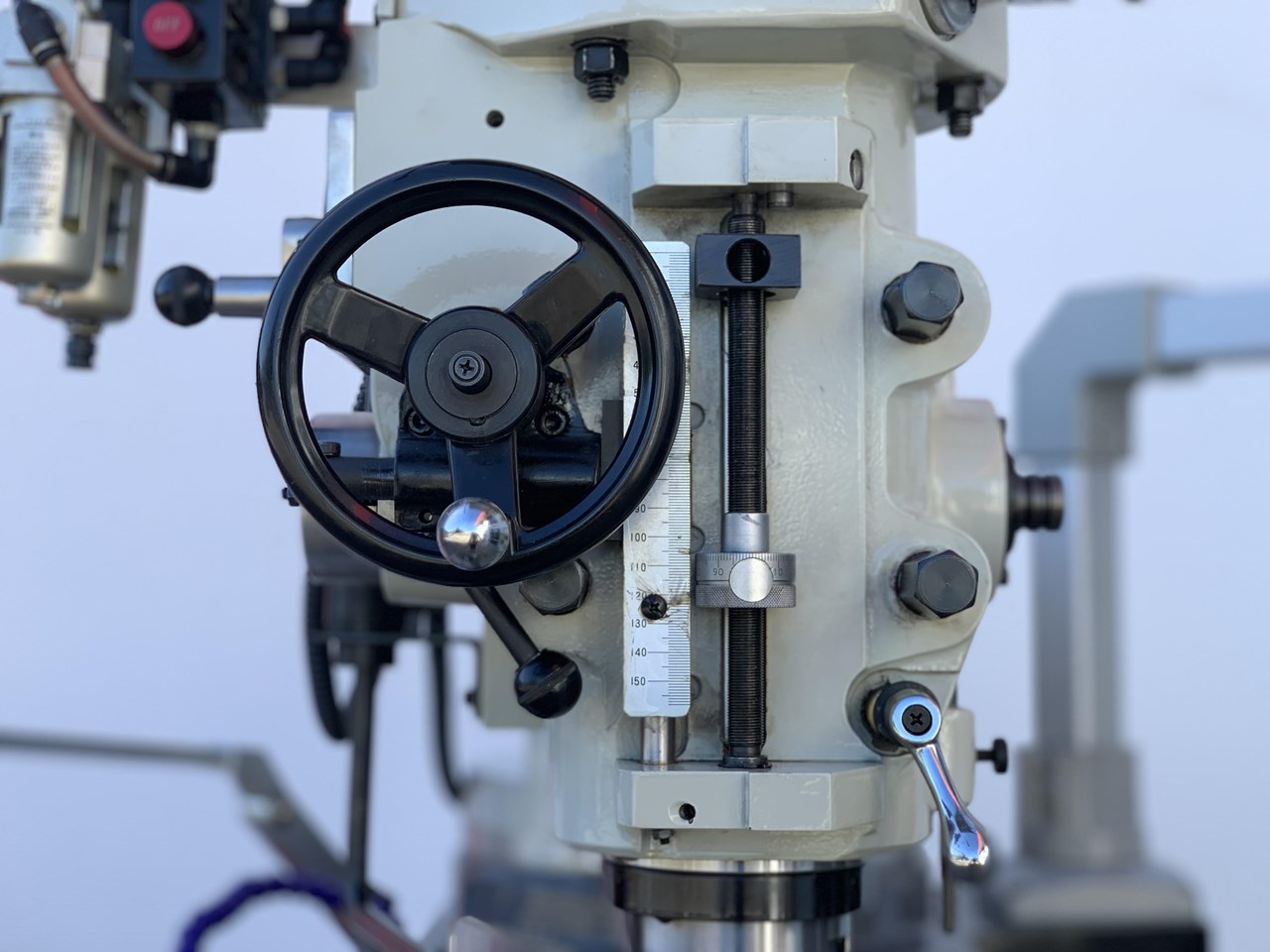

fine feed on spindle
power raise and lower of knee on SM-KDS4VS & SM-KD5VS models
147 mm quill travel (SM-KD5VS)
chrome-plated sleeve with extremely long cutting stroke
large spindle bearings guarantee stability during milling
guaranteed true run out on spindle taper 0.01 mm
Automatic sleeve stroke
spindle with right or left-handed rotation function
cutter head with reduction gear for high torque
mechanical spindle brake

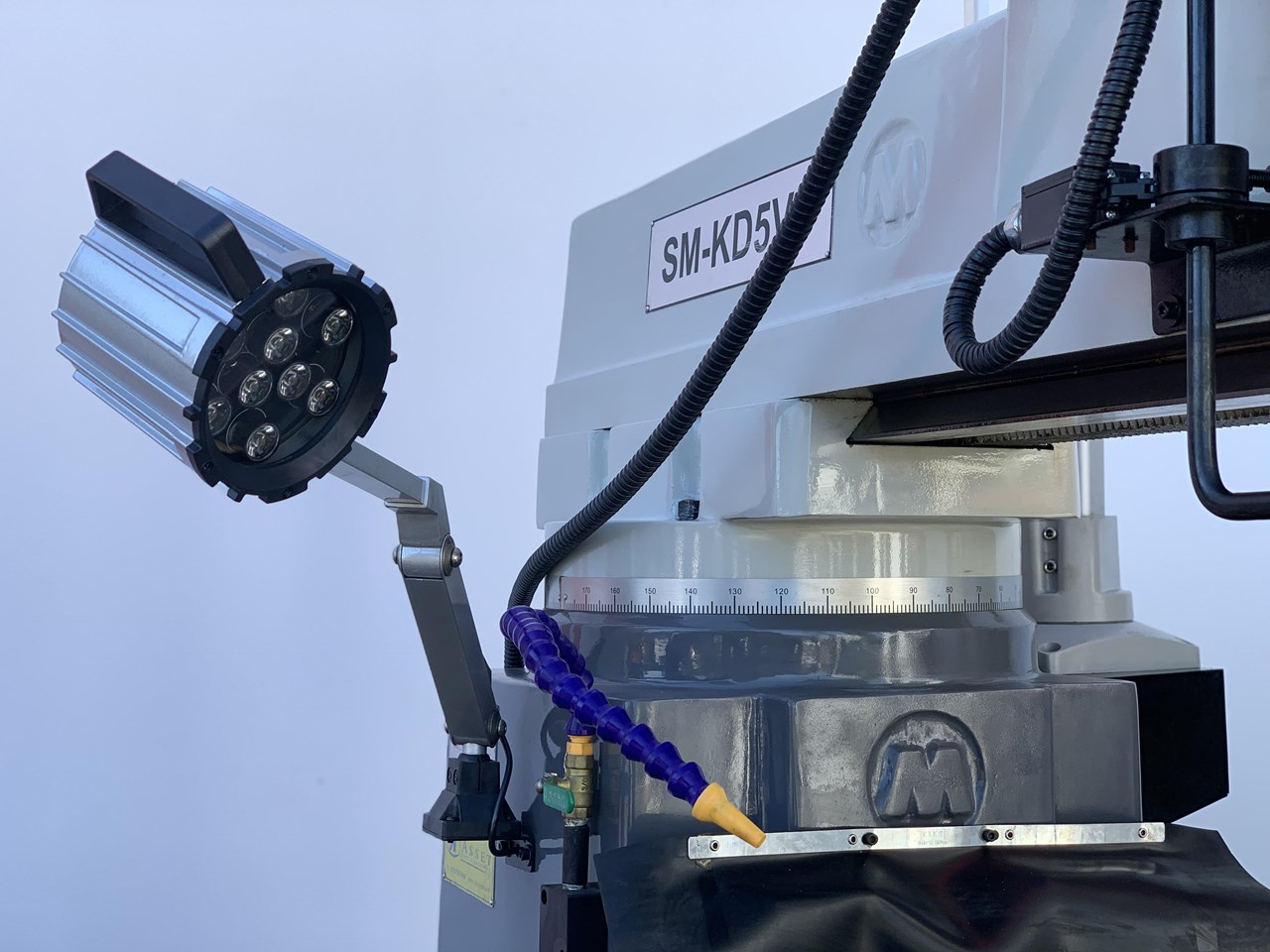

halogen work light
safety interlocked spindle guard

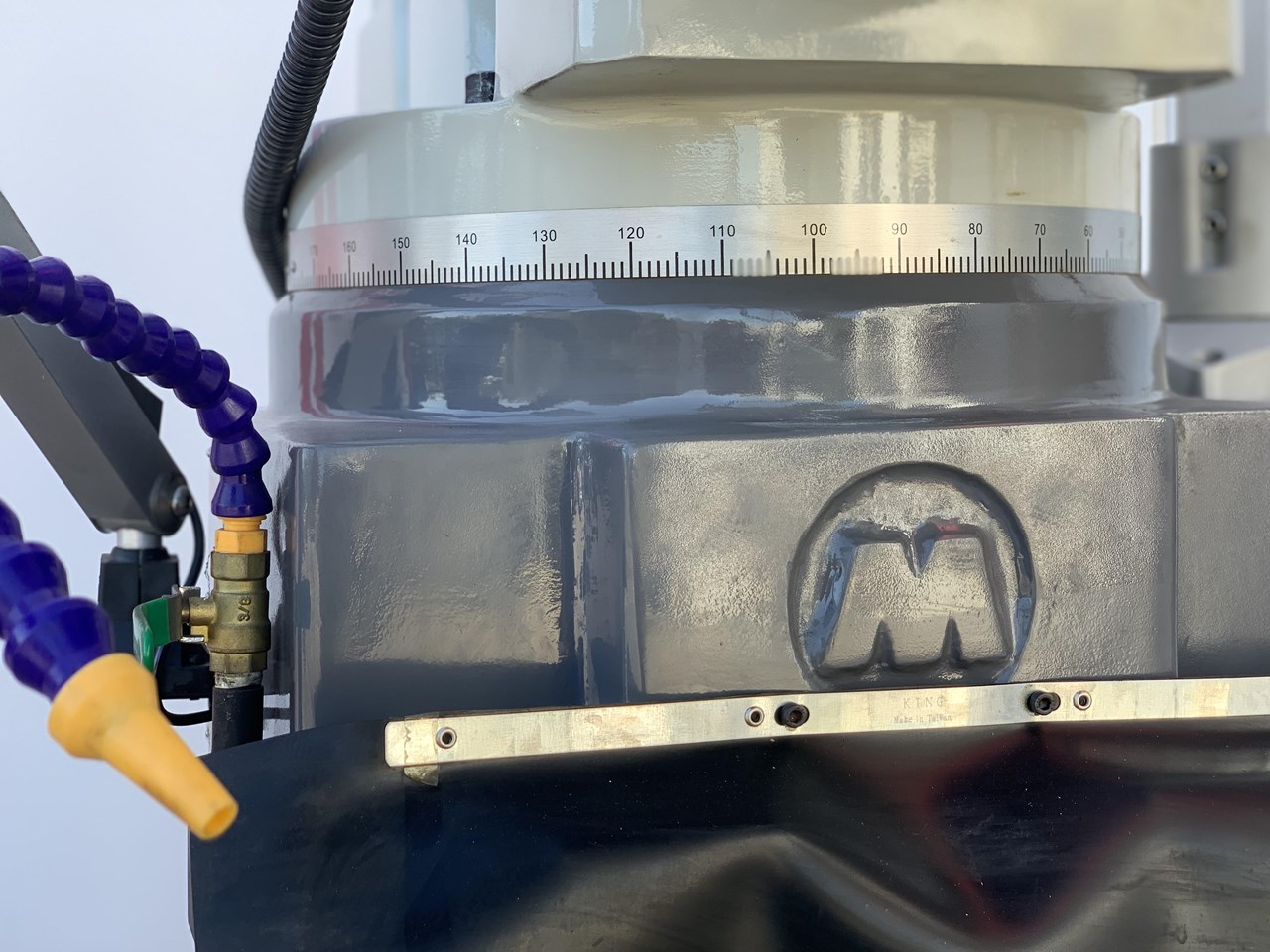

coolant system standard
drilling and milling guard
tool box with tools
operation & service manual
Technical Data - Snap Shot

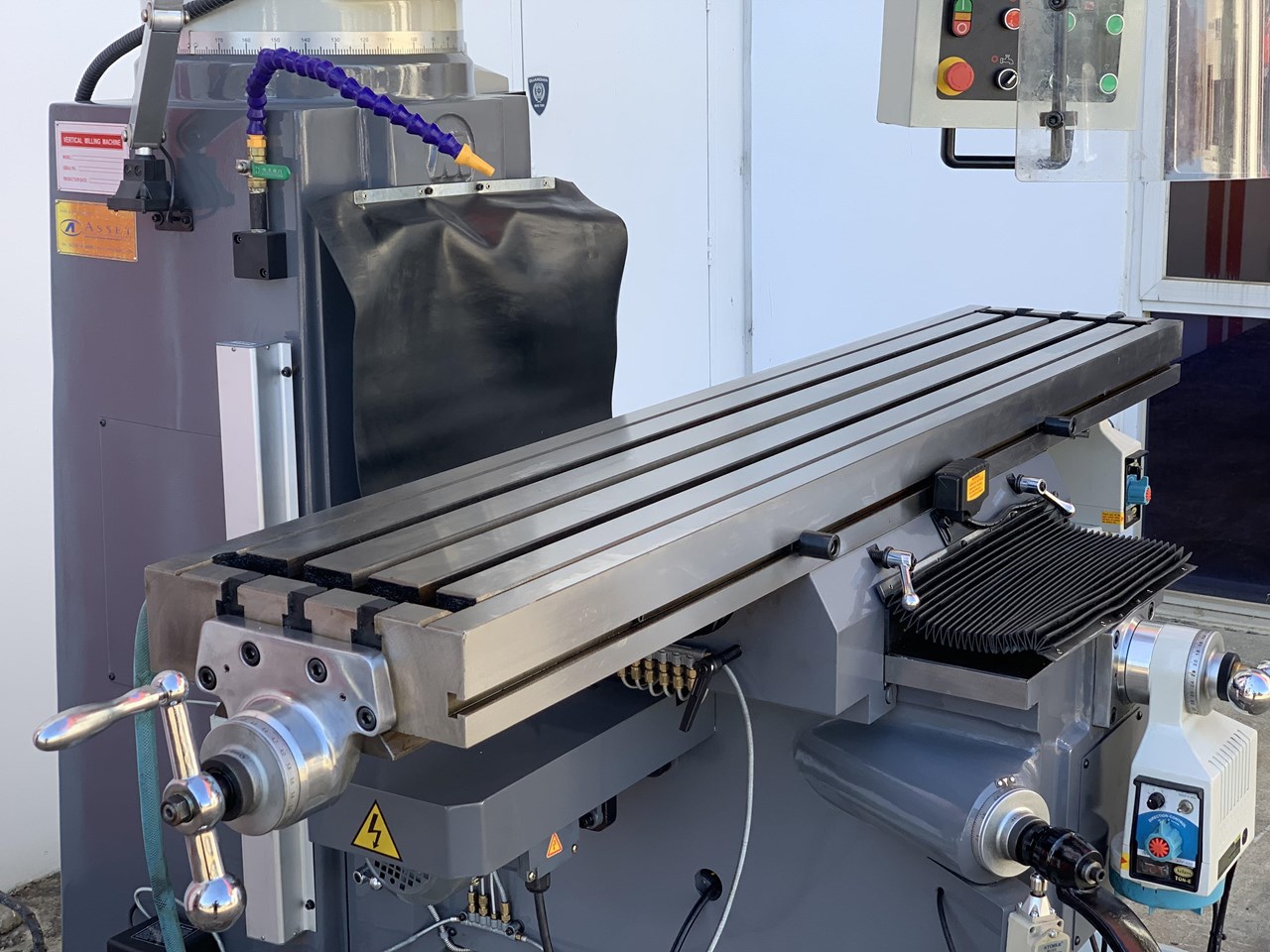

table size - 1580mm x 305mm
X / Y / Z travel - 930mm / 420mm / 420mm
power draw bar fiited
spindle quill travel - 147mm
quill diameter - 105mm
holding fixture - ISO / INT-40
vertical speeds - 80 ~ 4200 - variable
motor capacity - 3.75Kw x 415Volt
shipping dimensions - 2000mm x 2000mm x 2400mm
approx weight: 1850kg
Includes

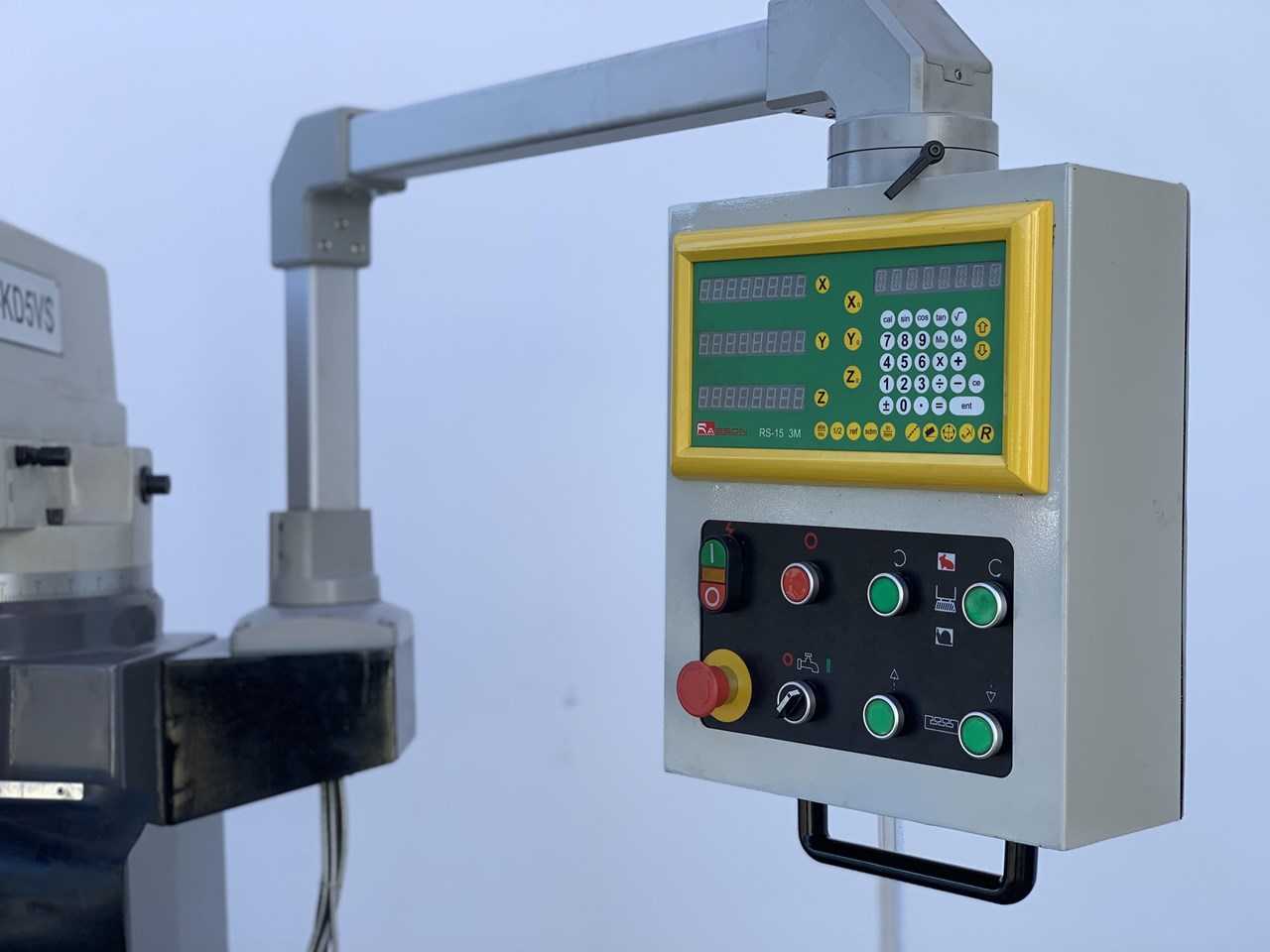

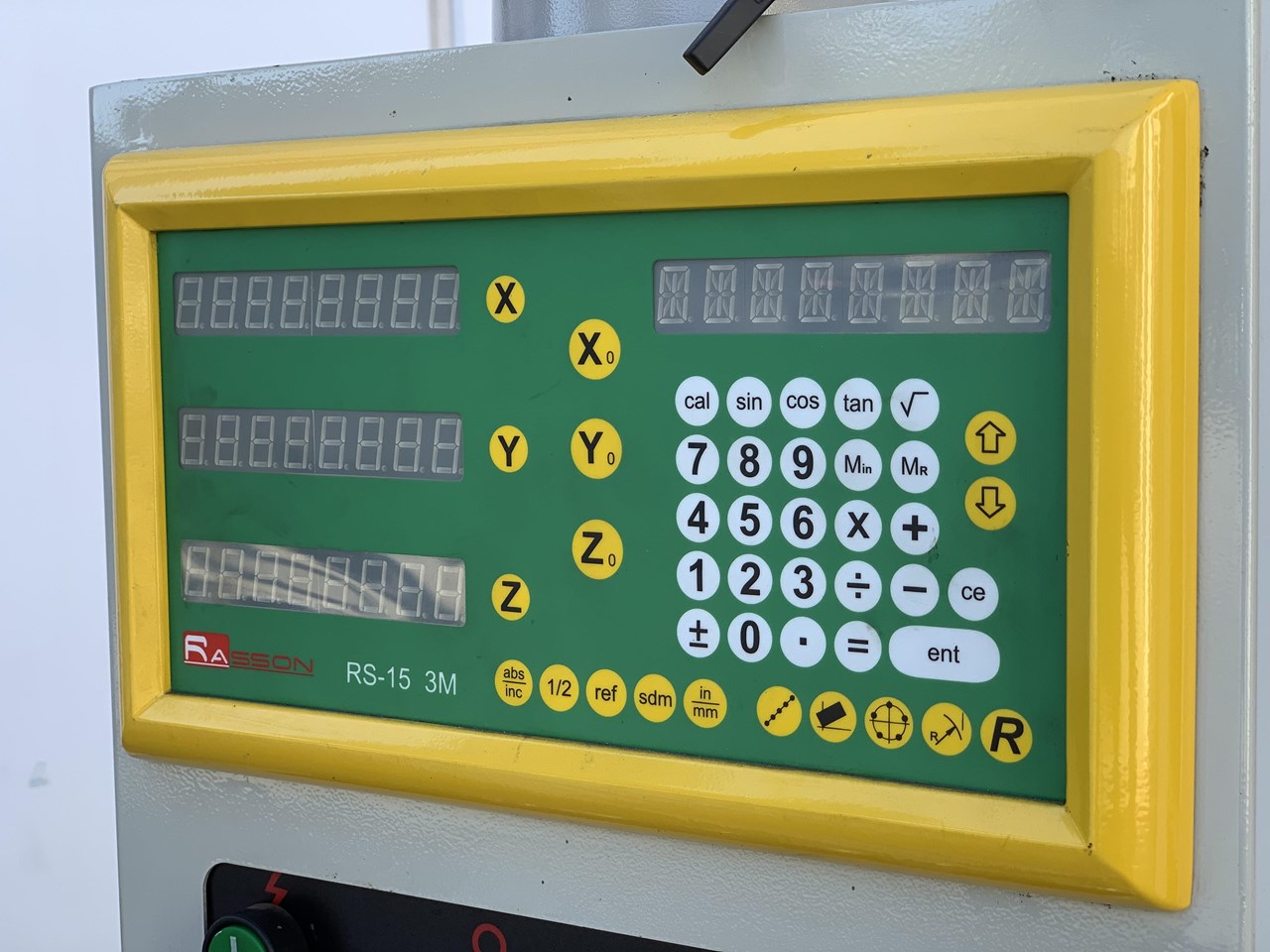

3 Axis digital readout system
power draw bar fiited

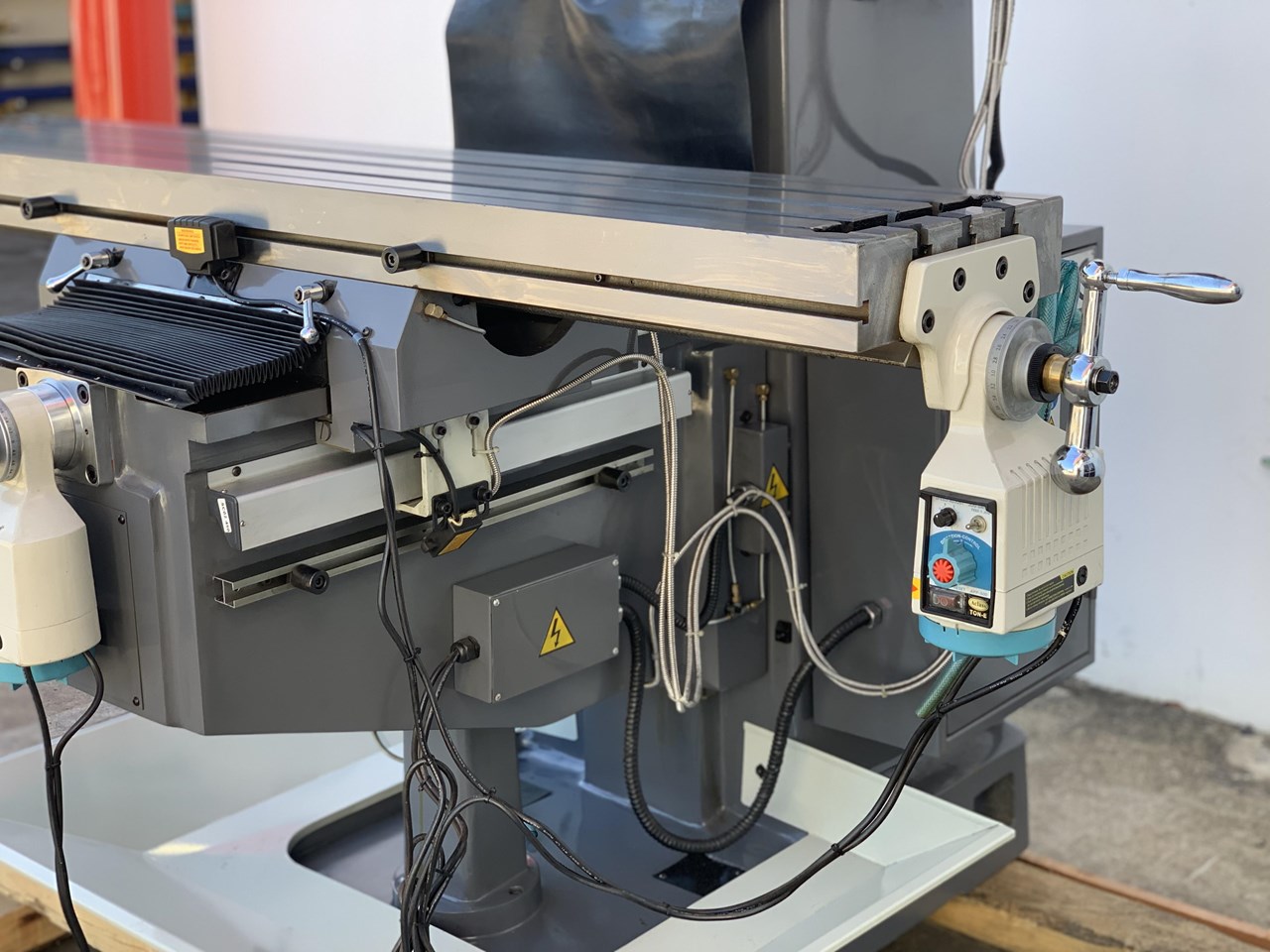

2 x Axis power-feed
safety cutter guard
swarf tray
coolant system

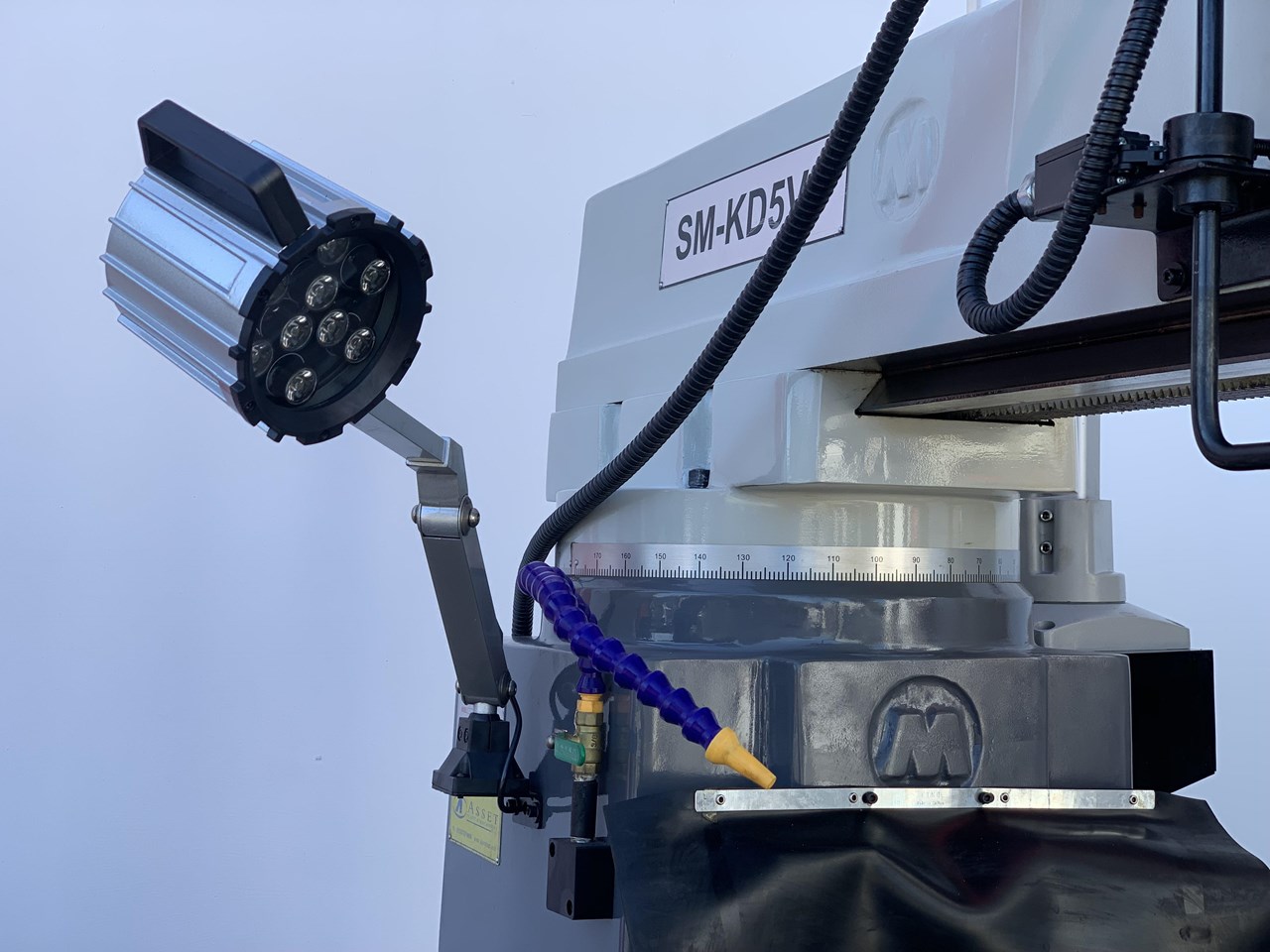

LED lamp
tool box and operation manual
Offering the widest range of quality metalworking Drilling & Milling Machines & Support Parts under one roof for delivery Australia wide
Geared Head Mill Drills, Geared Head Drills, Radial Drills, Mag Base Drills, Bed Mills, Milling Machines, Turret Mills & More we have them all including spare parts & more
If you cant find what youre looking for call us on or look online www.steelmastermachinery.com.au
Servicing the Industrial Metalworking Industry since 1997
We have many more items available than listed here.
Asset offer a wide variety of metalworking machinery, spare parts and accessories to suit our range
Industries service range from Engineering, Metalworking Fabrication & Sheetmetal Shops Australia Wide.
Also offering national delivery on metalworking bandsaw & cold saw blades, Punch & Shear Tooling, Pressbrake Tooling, Industrial Conveyors and much more.
We can also offer experienced service technicians in house or onsite to assist Please contact us for further information.
Visit our website, or call us with your requirements
Tell us what you are after, chances are we have it already.
For More information on our machine, go to or contact a Steelmaster industrial Rep
MAKE YOUR NEXT PURCHASE AN "ASSET" TO YOUR COMPANY!
Please contact us for more information.
## STEELMASTER INDUSTRIAL OFFER A COMPLETE RANGE OF NEW & USED METALWORKING MACHINERY FOR SALE AUSTRALIA WIDE ##
PRE-COMMISSIONED & SHIPPED AUSTRALIA WIDE
Price is subject to GST.
This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. With a large 147mm quill travel standard and power draw bar fitted. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.
Features.
power draw bar fiited
3 axis DRO fitted standard
infinitely variable speed drive head with digital display
Taiwanese head and quality Meehanite cast frame
solid, precise cross table with ground surface

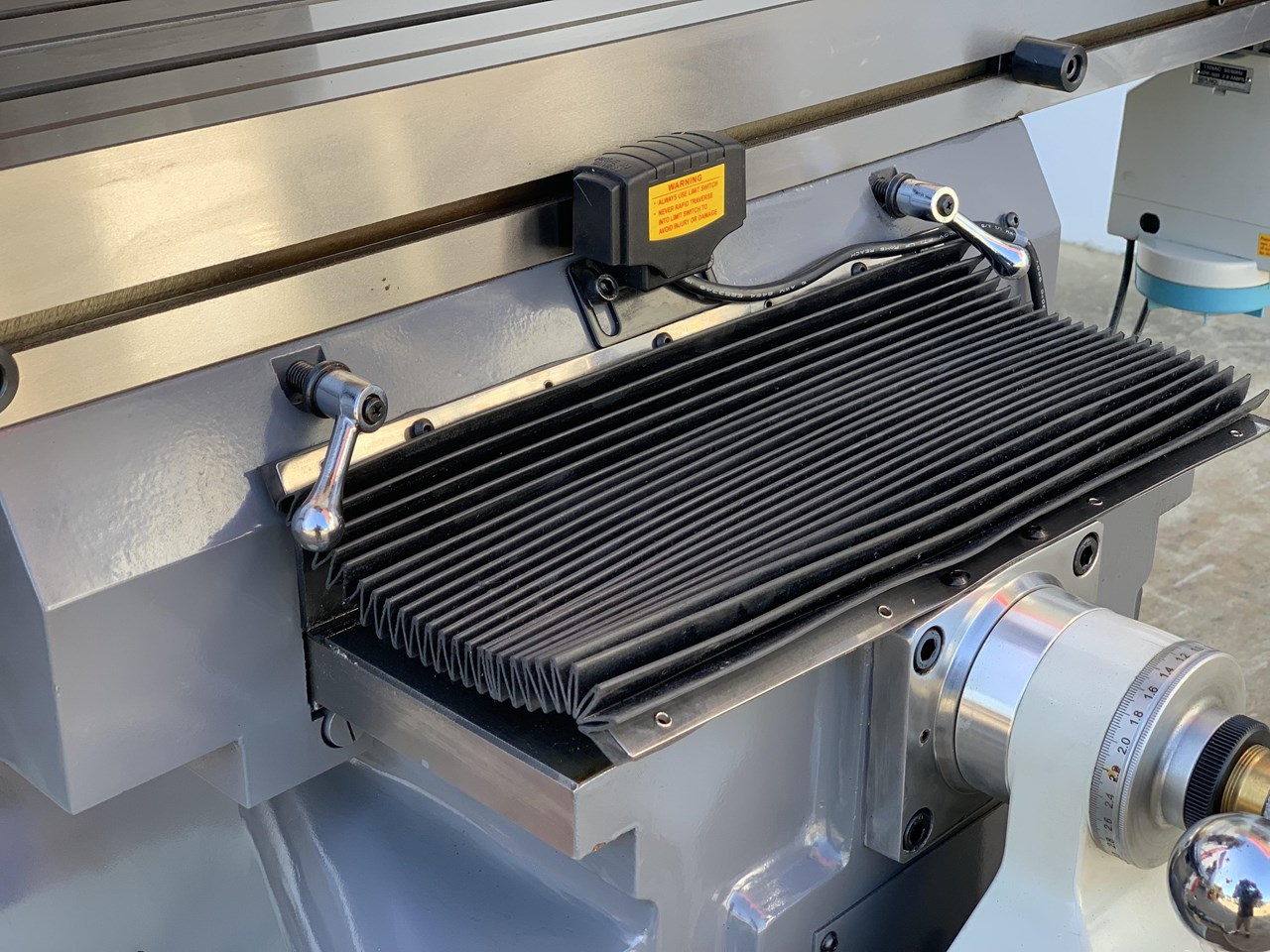

precisely ground carriage guides with adjustable square guides

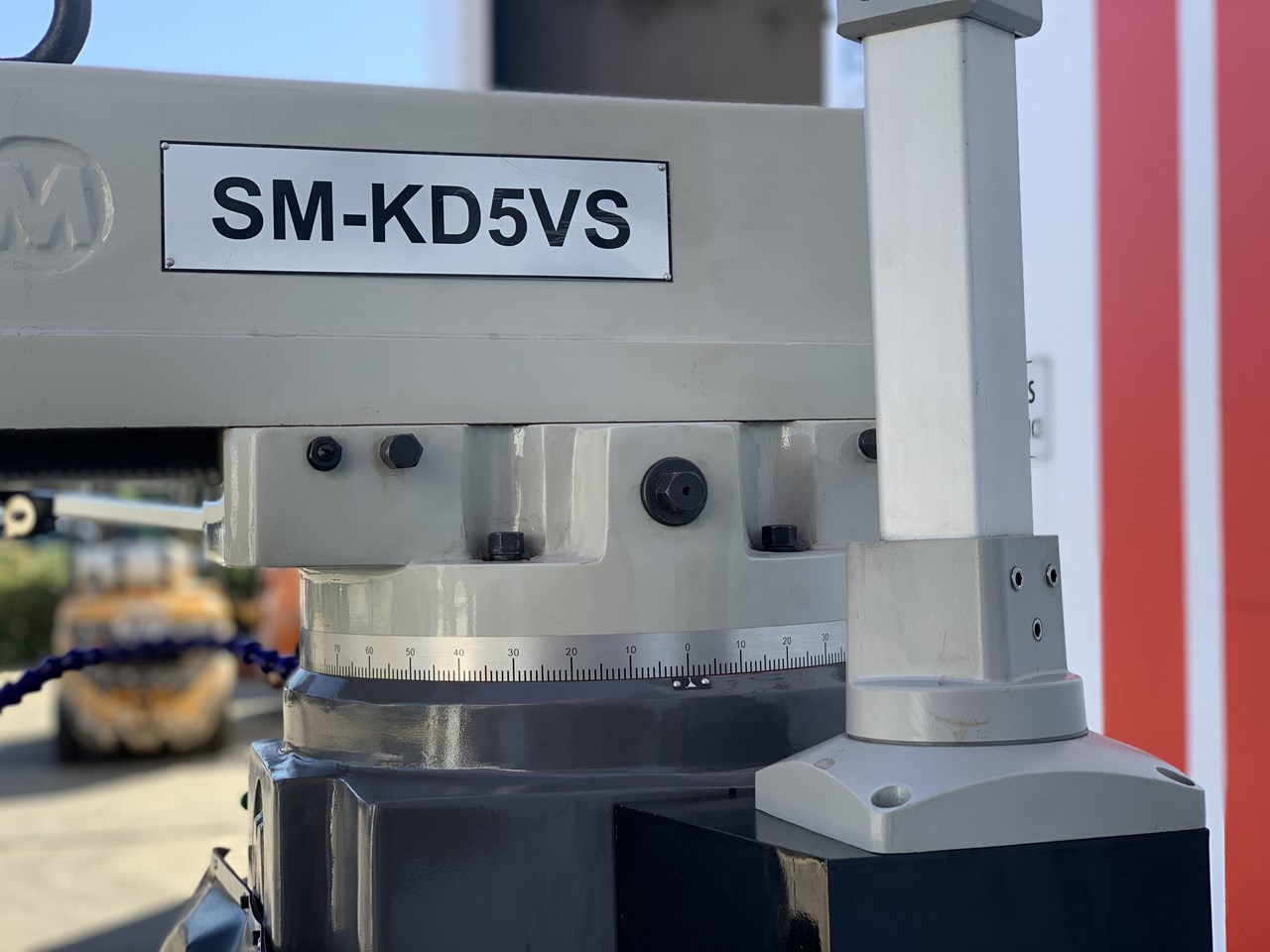

head swivels to left and to right
