Western Truck Sales

85 Pickering Brook Rd

Pickering Brook, WA

Western Truck Sales Visit website


Title 2024 SINOTRUK T5G
Sale Price $225,000
Listing Type New
Stock Number T5GAGI
RefCode TA1218799
Power - kW0

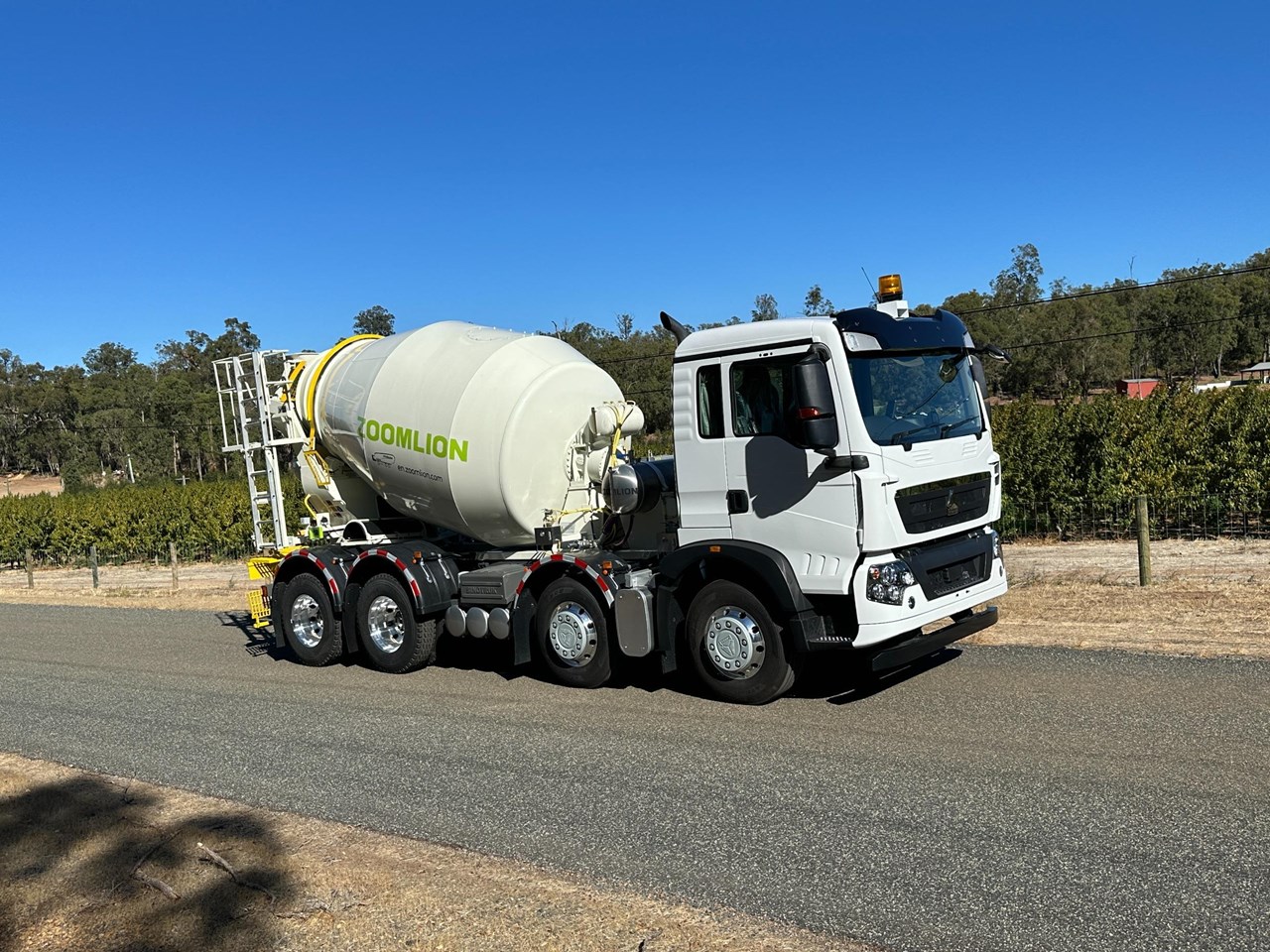

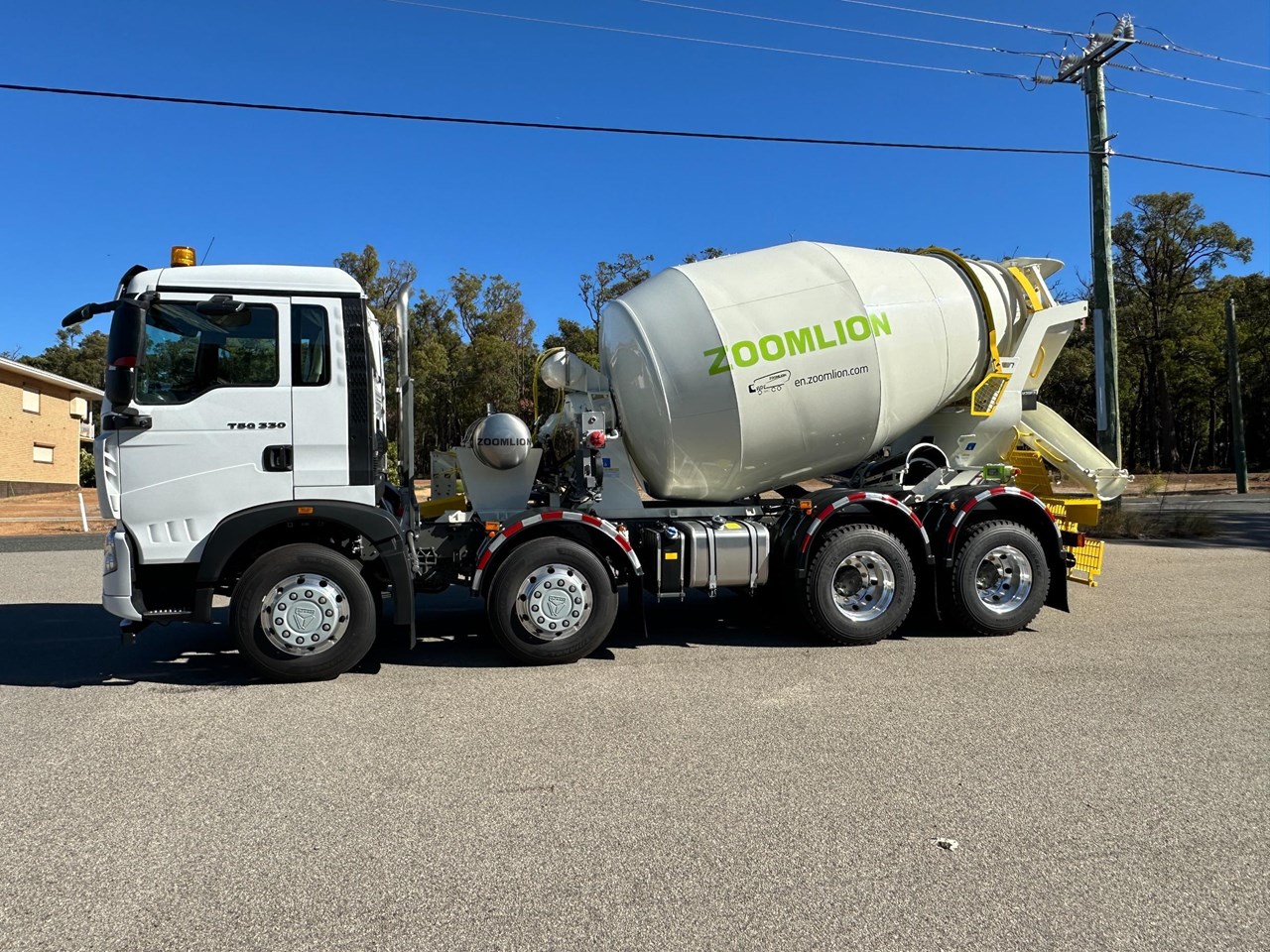

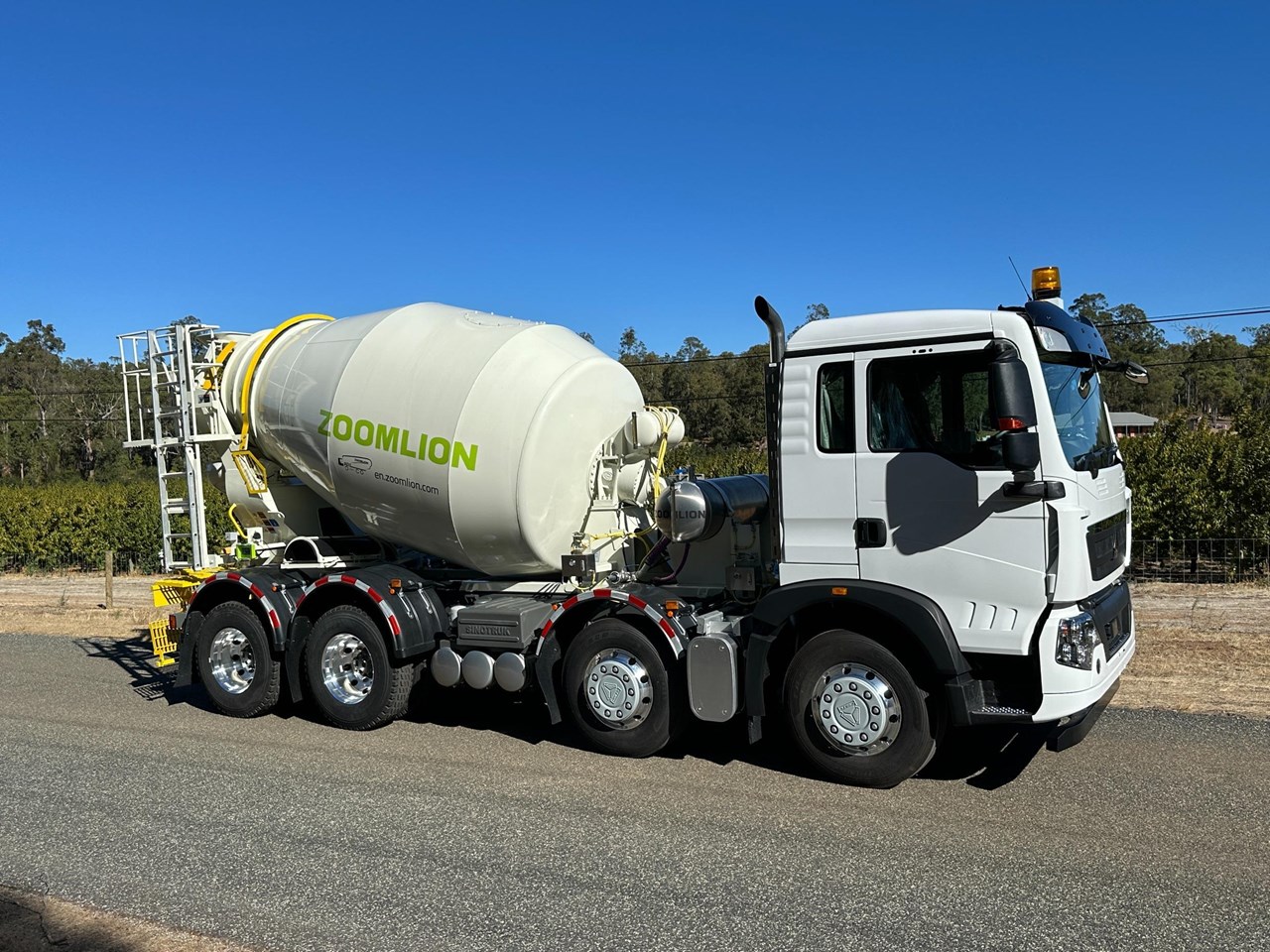

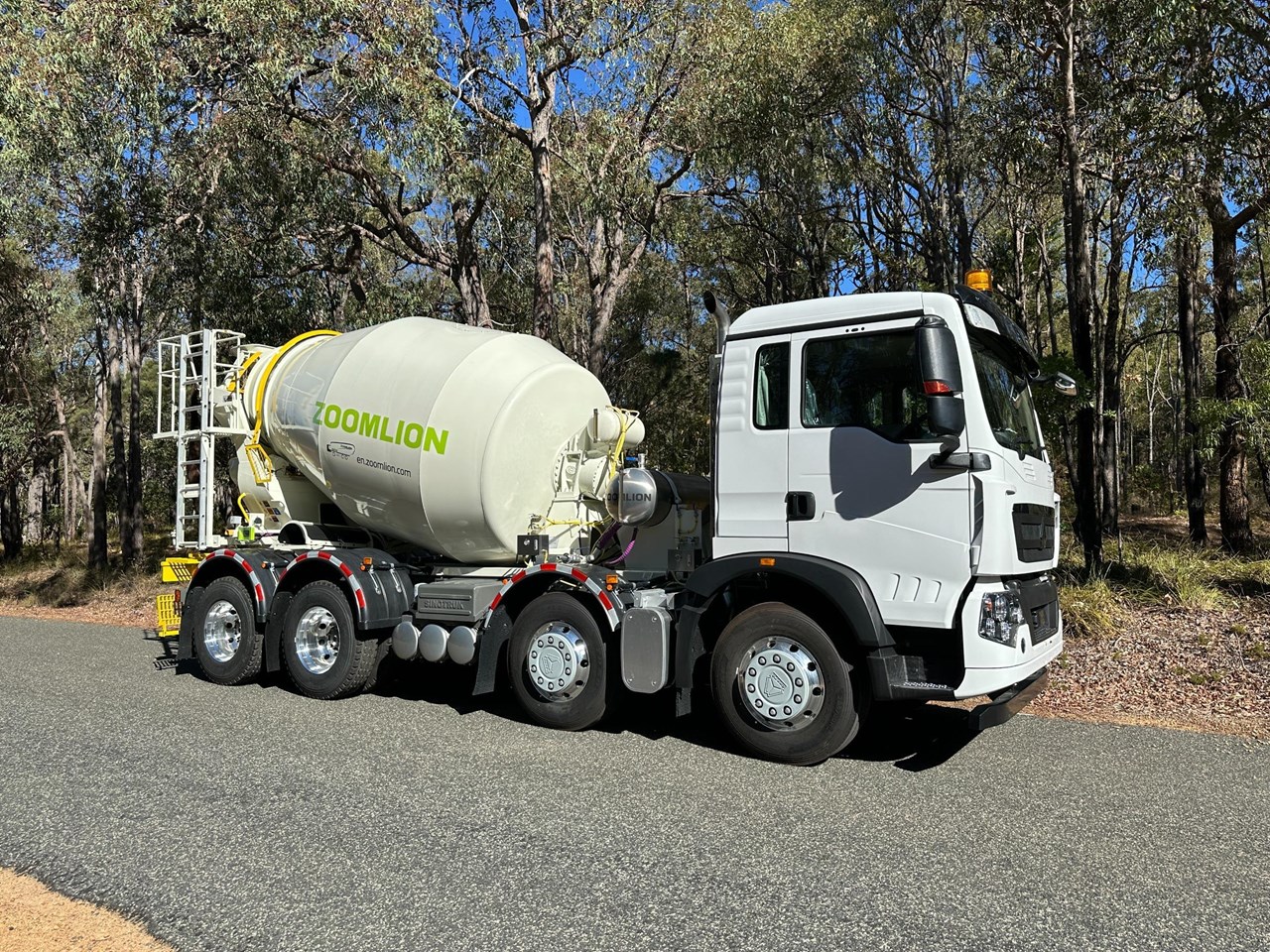

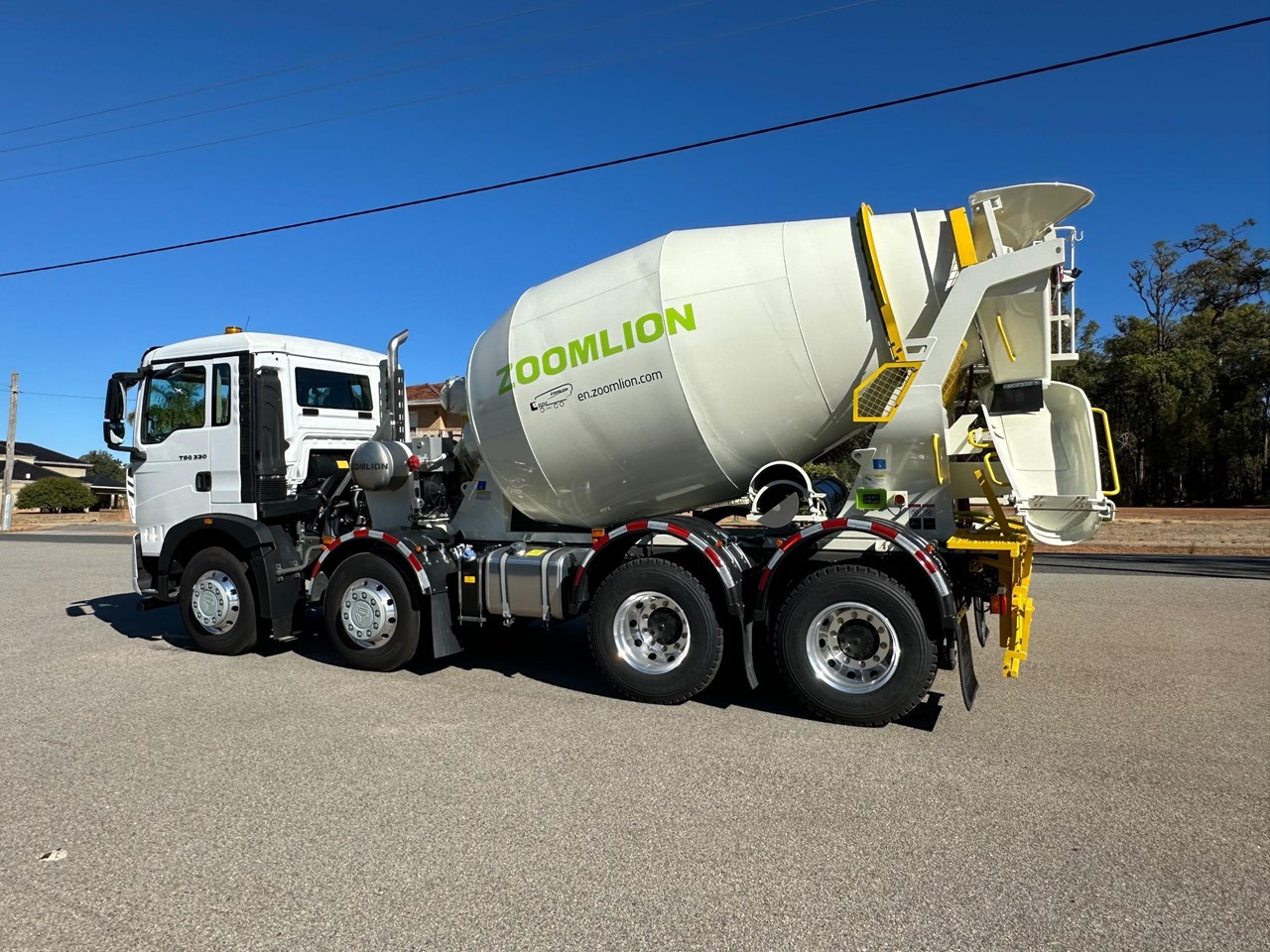

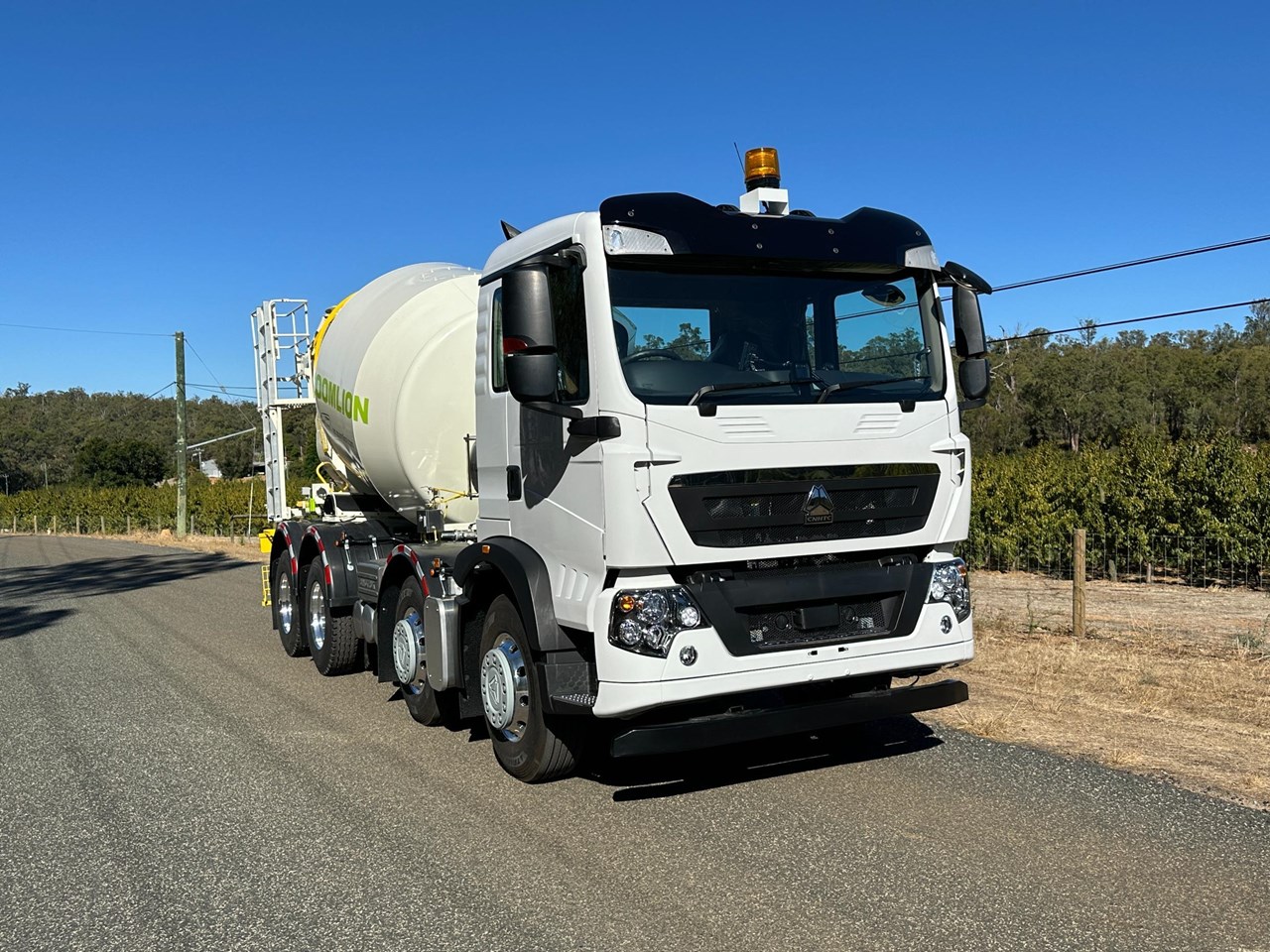

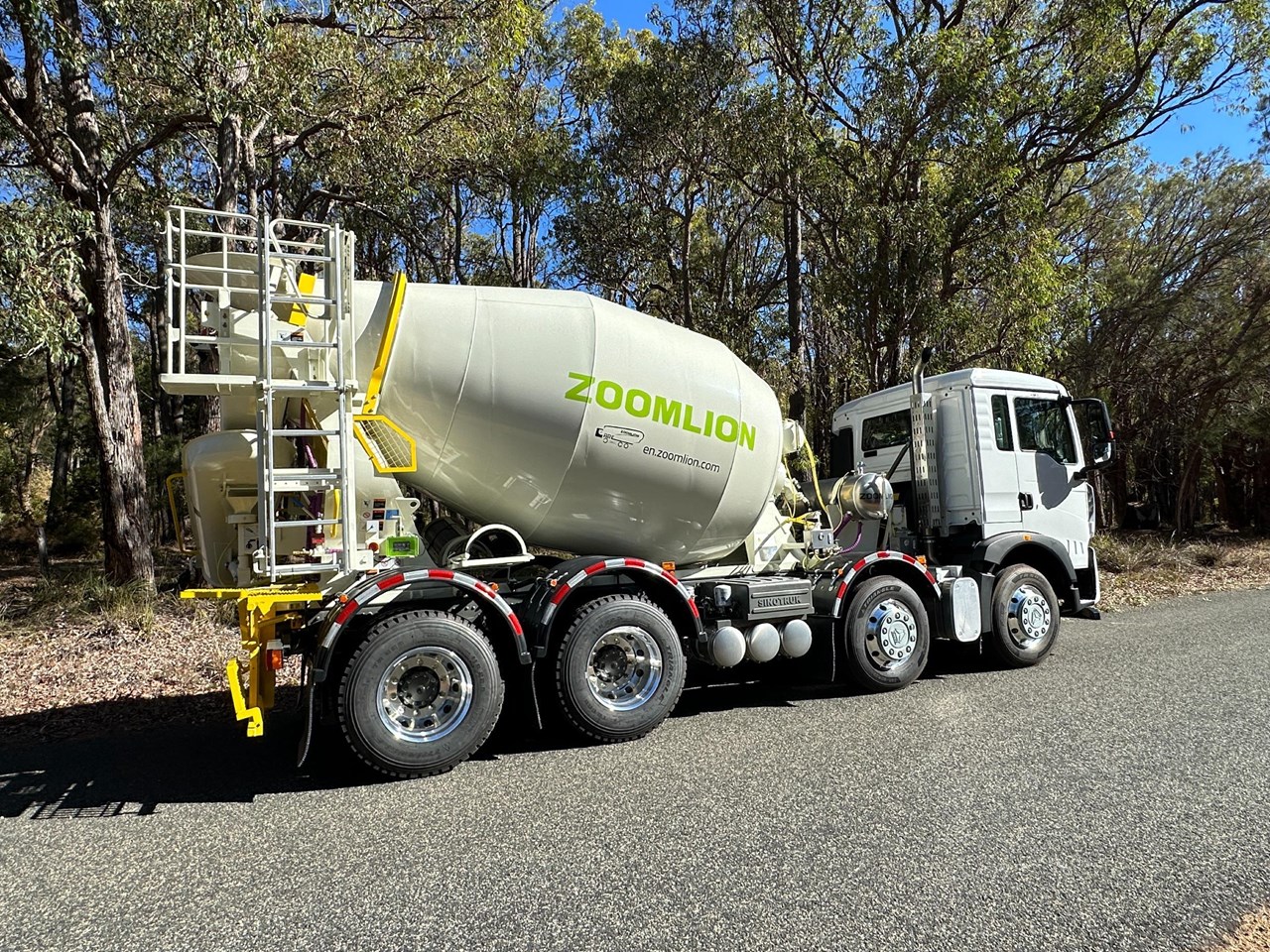

New Sinotruk Sitrak T5G 8x4 Agitator truck, 330hp with Allison Automatic transmission, Diff And cross locks, Load sharing front axles. fitted with the ZOOMLION Agi Bowl,
$225,000 Plus GST and on road costs. IN STOCK NOW.
Specs for truck and bowl below.
Engine:MC07, 7L, 6-cylinder 4-valve in-line engine, Bosch High pressure common rail diesel engine, water cooled, 4 stroke w/- intercooler.336hp @ 1900rpm 1,250Nm @ 1200-1800rpm.
Euro 5 emissions rating with NOx control. SCR catalytic converter with AdBlue injection,
Exhaust brake.

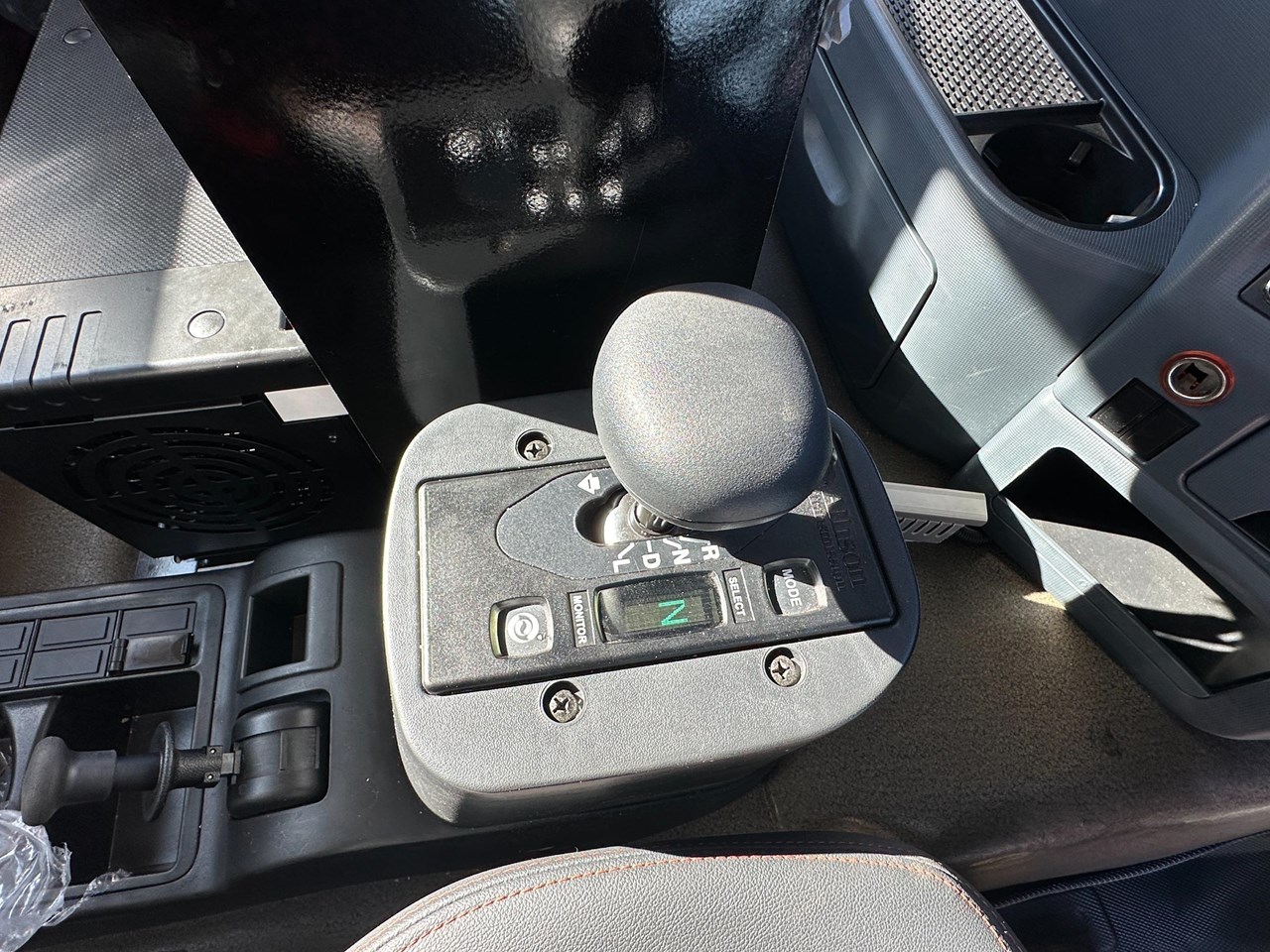

Transmission: Allison 3200P 6Speed automatic Transmission, 6 forward gears, 1 reverse gears. Chelsea 870 PTO..
Axles & Equipment:Front 1st Axle: HF7 - 7 Tonne rated with parabolic 3 leaf & disc brakes.

Front 2nd Axle: HF 7 Tonne rated with parabolic 3 leaf & disc brakes. Steering system is ZF steering gear and oil pump. Load share suspension. Rear Axles: 2 x MCY11, 25 Tonne rated Hypoid axles.
Differential lock and cross lock on both axles. Ratio: 5.29:1
Disc brakes and 4 Bag Hendrickson air suspension.

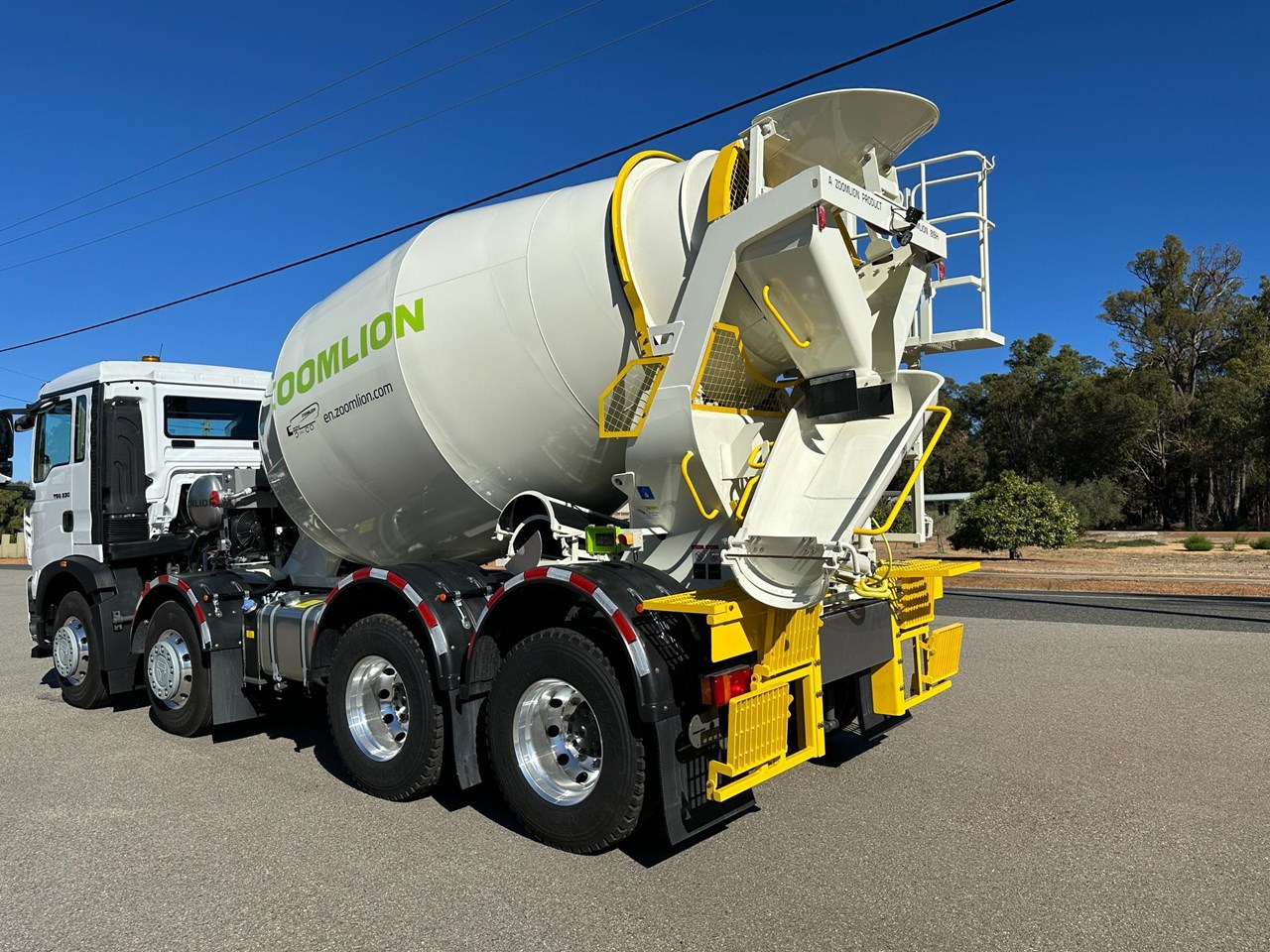

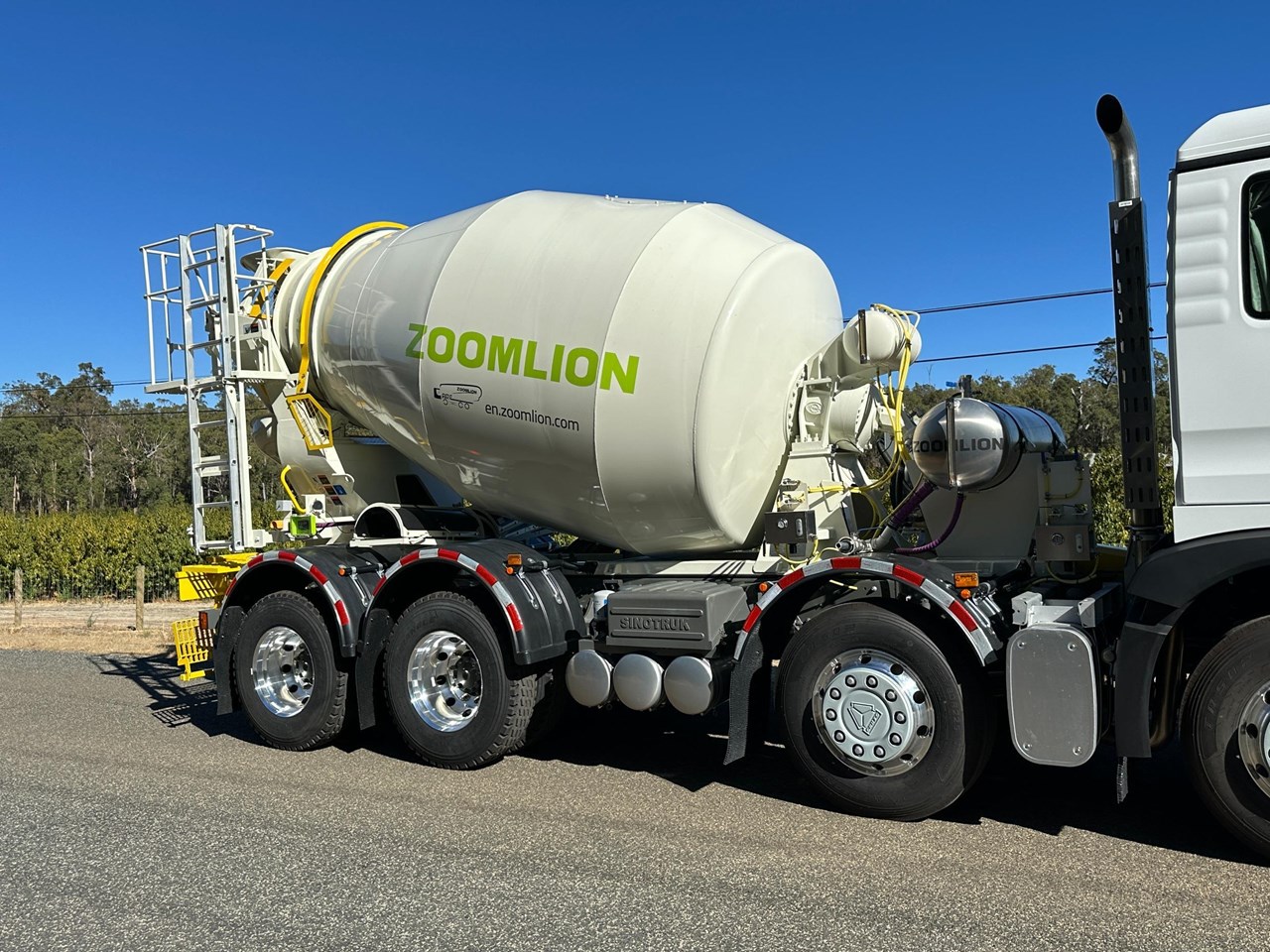

Zoomlion 7.6m Concrete Mixer Specifications`

Barrel (Front)3.5mmBW300TP
Barrel (Middle)3.5mmBW300TP
Barrel (End)3.5mmBW300TP
Dished End3.5mmBW300TP
Mix Blades3mmQSTE500TM
T type fins3mmQSTE500TM
Chassis Rails80x 80 x 5 mm
Rear "A" Frame5mmQ355B
Front Pedestal5mmQ355B
Swivel Chute3mm +4mmQ355B+BW300TP
Loading Hopper3mm+4mmQ355B+BW300TP
Extended Chutes3mmPVC
Chute JackHydraulic
Number of extended Chute Rack3
GuardsPlastic Guards
Ladder & PlatformSlide with large platform
Bowl GuardFitted for safety both sides
"Gearbox flange ring 24 bolt type 10.9 bolts used 64EQS 95
Bowl Angle14 degrees
Trunion RingMachined to achieve smooth operation 1535, 35
SandblastingAdopt 12 imported (Japan SINTO) automatic shot blasting machine, automatic shot blasting, workpiece surface quality is better than Sa2.5
"Undercoat Akzo EL120CC base powder
PaintingAkzo JA04ACC type white powder
GearboxChassis part

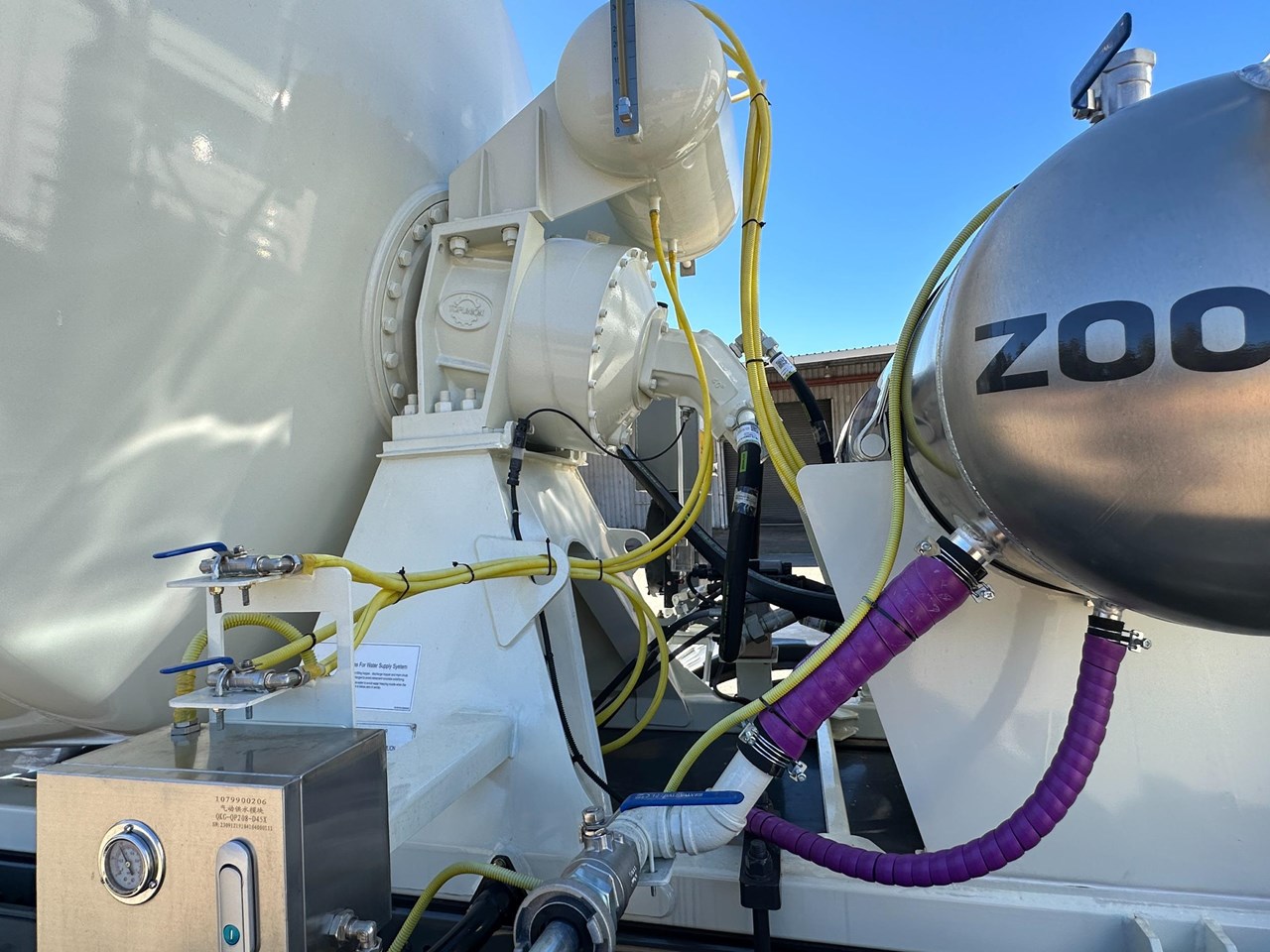

PumpWEIFU P4VC090N2EP2RVS1DS0F002Sstandard
MotorWEIFU M2F090HNCWVS2DS0N003Pstandard
Jack ShaftHDHXYG-300

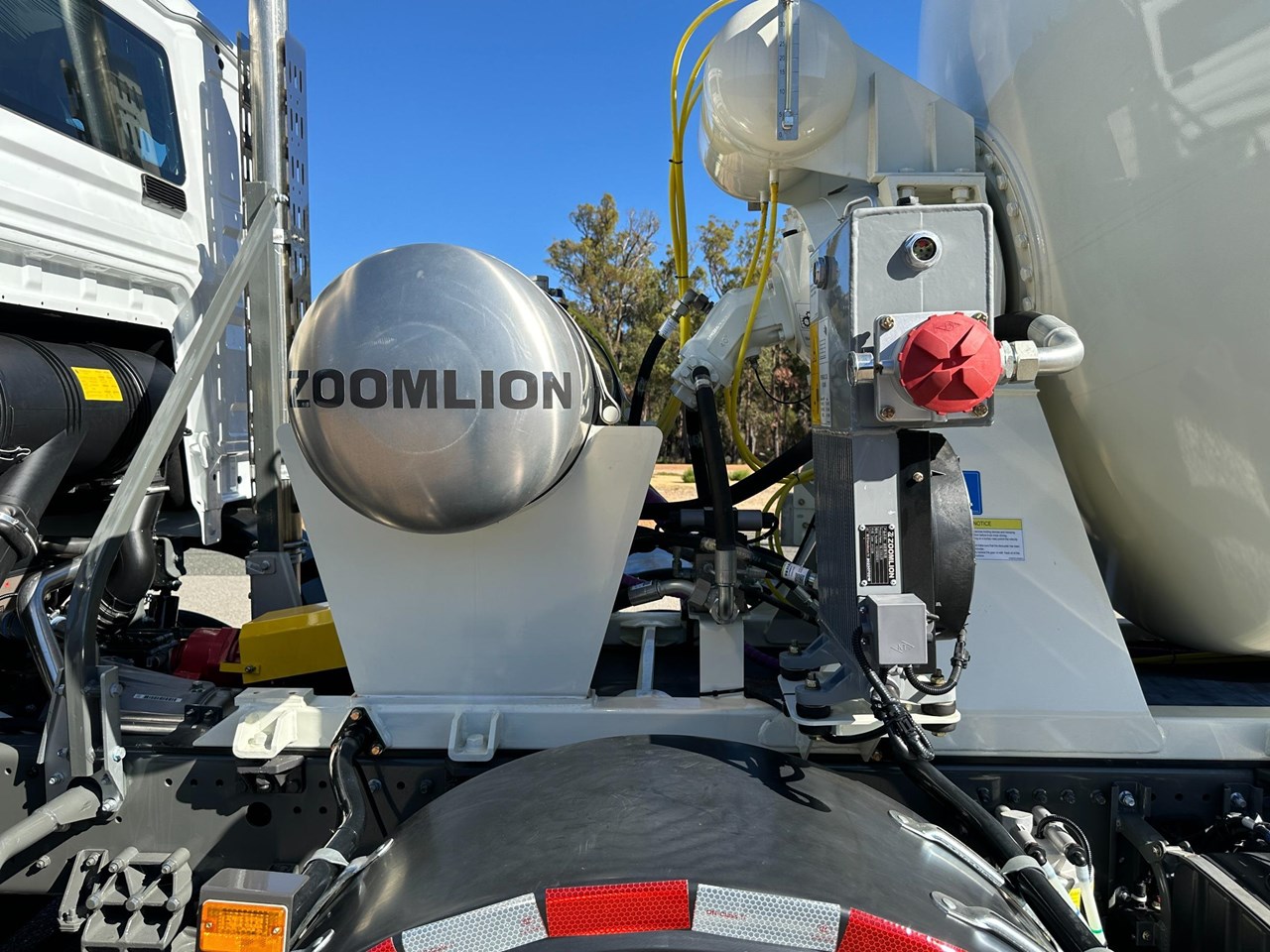

Water Tank200L Aluminium alloy
Water GunSlump gun is fitted & slump hose
Water MeterProvided
Wiring Lights & MudflapsProvided
Slump MeterProvided
Trunnion RollersTwin tugs (one on each side)
