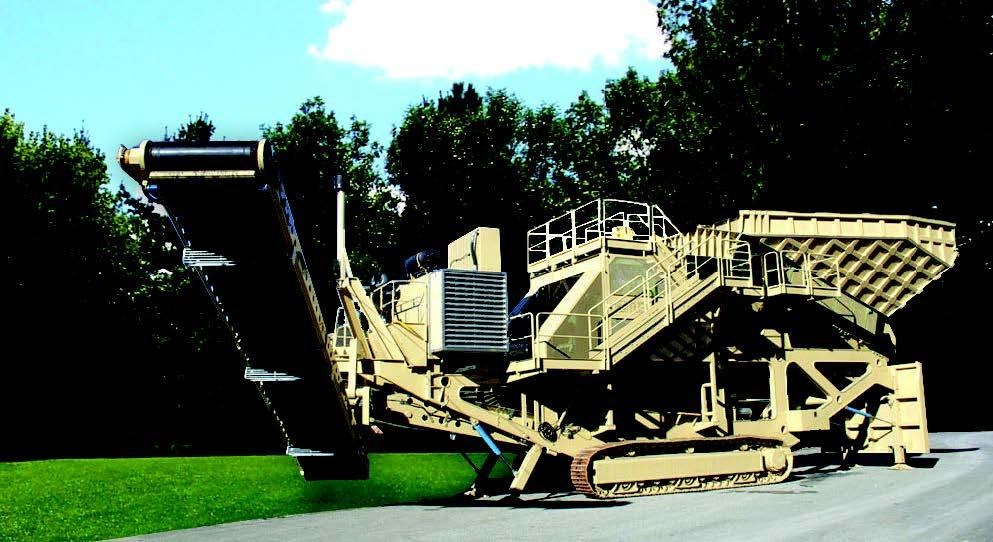

2014 REV GCS 140/B

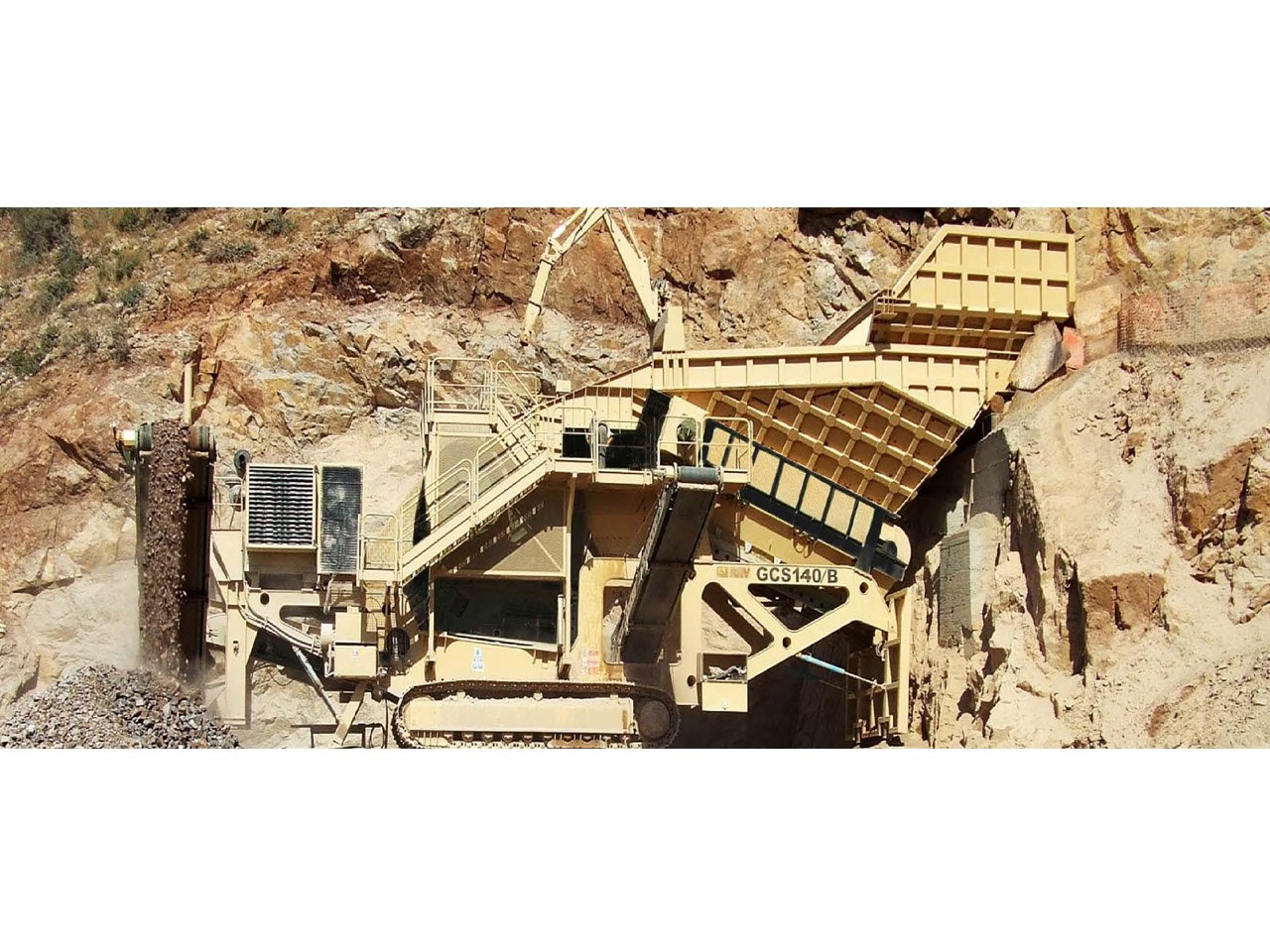

GCS 140/B designed as a primary crusher for mines or large quarries, easily moved around the blast face. The GCS 140/B has the advantage of an apron feeder which will provide consistent feed supply to a robust roller scalper, cleaning and removing fines prior to reaching the jaw box. The GCS 14/B also has the advantage of been equipped with the REV Quarry Line, technology that monitors the entire working process through data elaborating PLC system which allows the operators to have a precise and immediate overview of the crushers operations. There is a lot of crushers with 1400 mm or wider jaw opening but not many that have a depth of 1150 mm, (1400X1150) this permits this crusher to crush over size rock up to one meter in diameter, there for creating saving of inefficient and expensive rock breaking. By primary crushing large rock at the blast face this allows the product be reduced in size there for being able to be transferred by overland conveyors or reducing damage to loaders and dump trucks by larger rocks during loading and unloading. Alternatively, feeding direct into mobile secondary crushers and screens.

• Apron Feeder

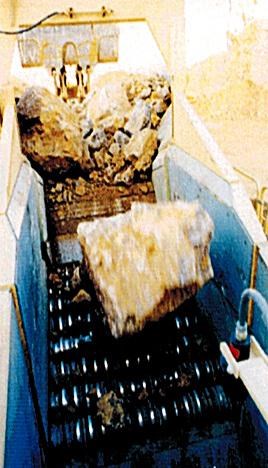

• Roller Scalper
• Automated or Manual Controls
• Rotating Conveyor Belt

SPECIFICATIONS
Jaw Box: 1400x1150mm
Max feed size: 1000mm
Hourly production: up to 700 tonne
Apron Feeder: 5000x1400mm
Roller Scalper: 2000x1400mm
Fines Reclaimer Belt: 5300 x 1000mm
Rotating Main Conveyor Belt: 9000 x 1200mm
(stores over 800 C/M)
Engine: Cat 400 kw
Hopper Capacity: 26 meters

DIMENSIONS
Total Weight (excluding options): 138, 500 tonne
Width: 4600 mm
Height: 6800 mm
Length: 25,000 mm

Contact John Andersen or Christopher Wong today for the best price on this product!
