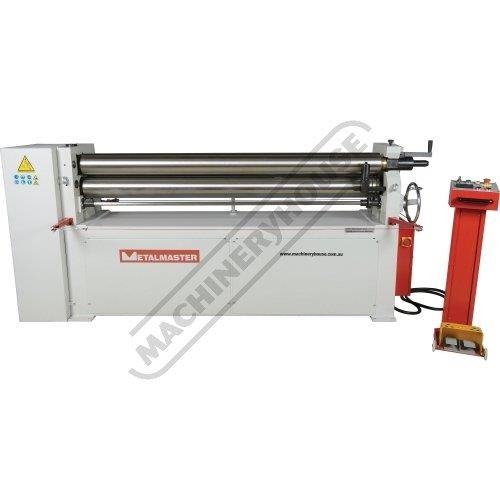

METALMASTER PR-204A

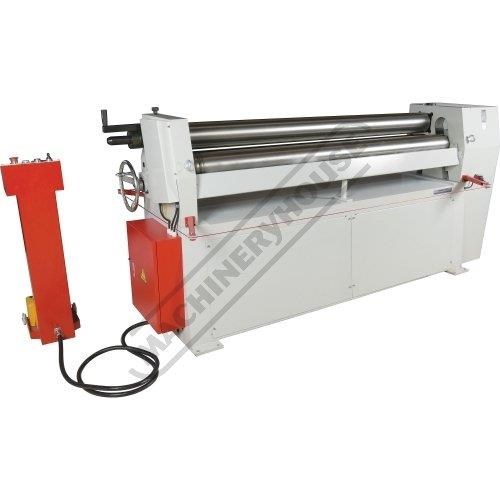

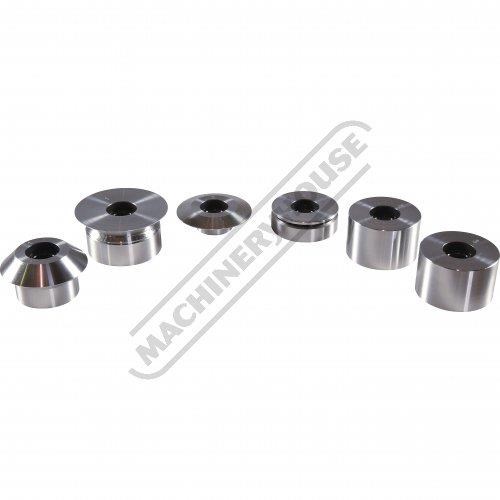

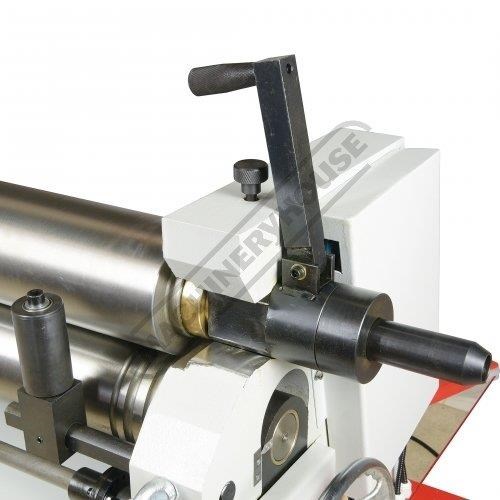

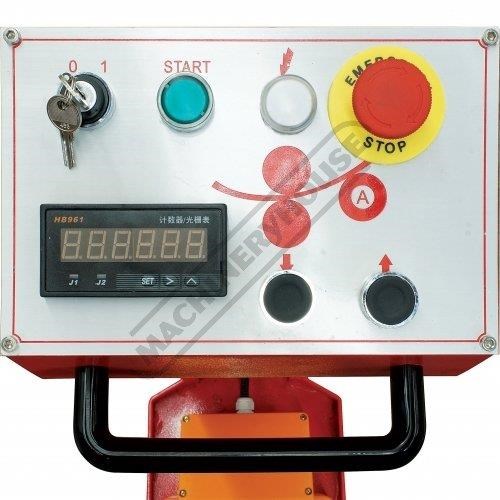

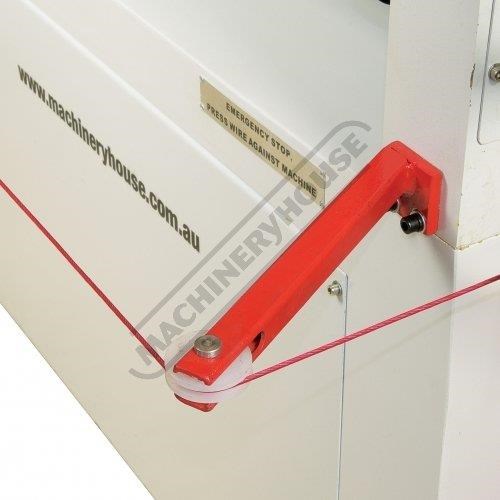

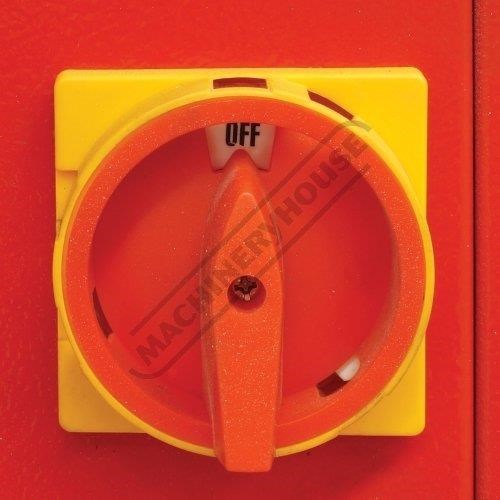

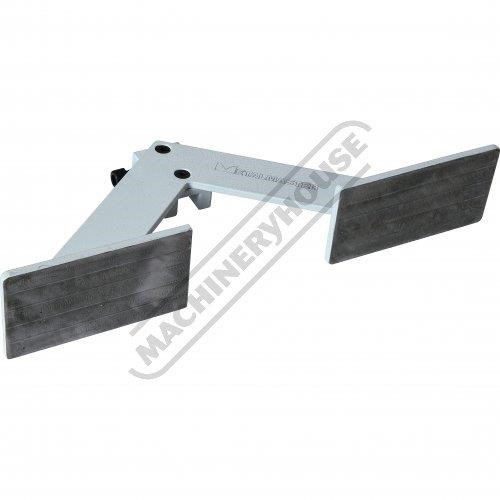

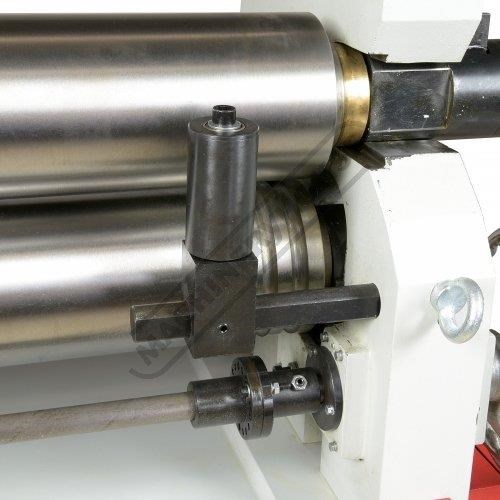

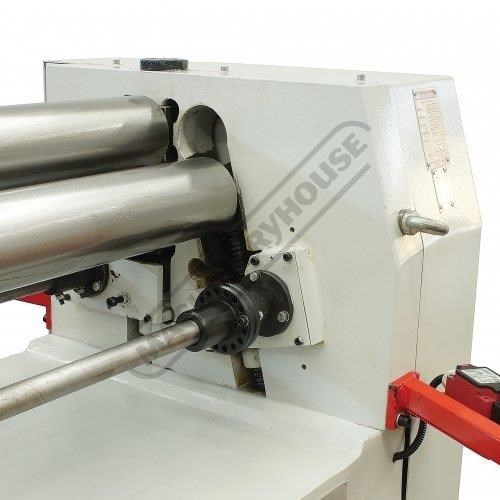

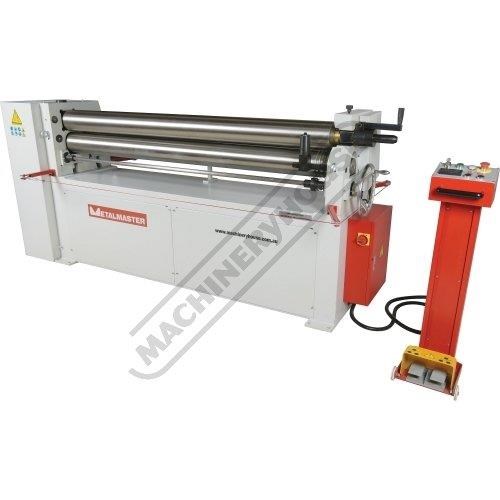

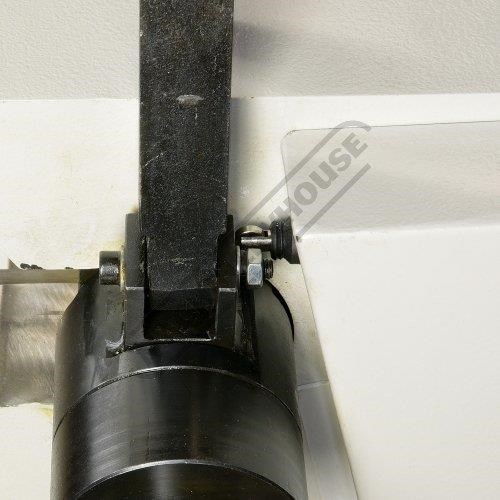

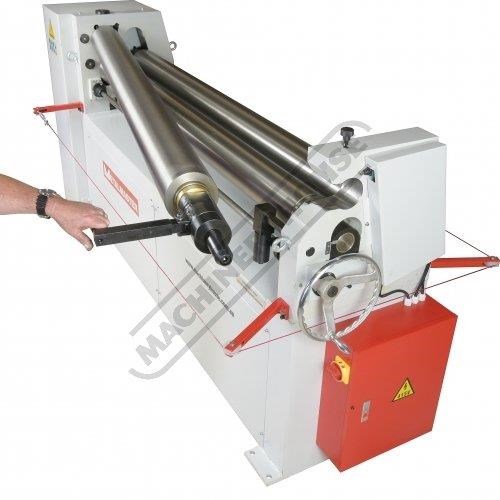

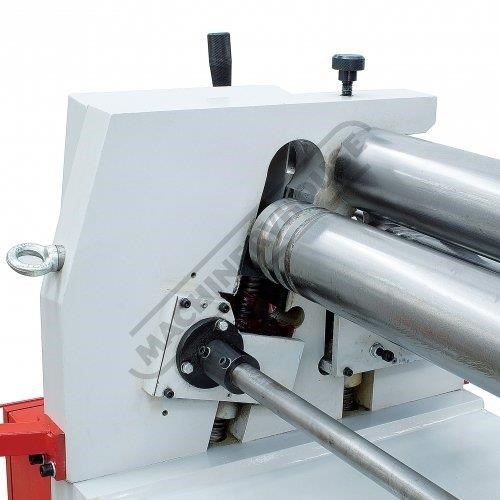

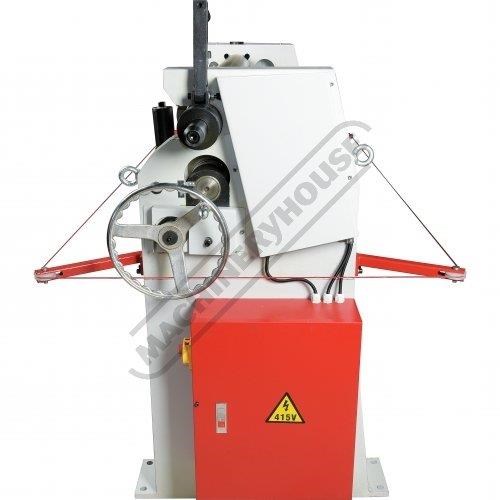

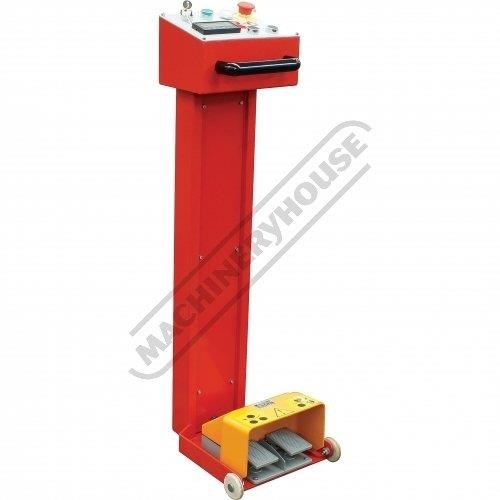

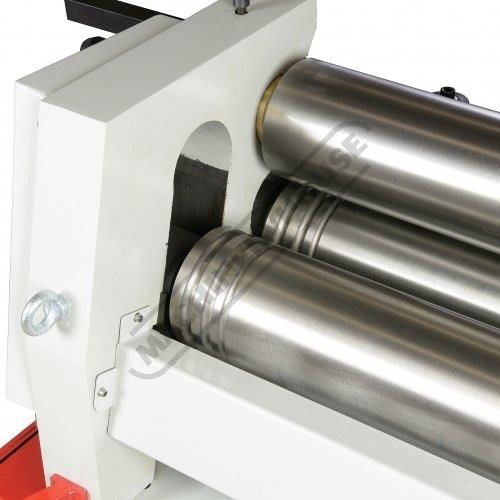

PR-204A Motorised Plate Curving Rolls 2000 x 4mm Mild Steel Capacity Motorised Up/Down Rear Roll, DR METALMASTER PR-204A Motorised Plate Curving Rolls 2000 x 4mm Mild Steel Capacity Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: S805 Features: Initial pinch rolls with pre-bending Motorised up & down rear curving roll enables quick & easy pre-bending Digital readout display on rear curving roll position Mobile foot pedal control with digital readout display Two rolls are powered by reduction gearbox drive system Swing out top roller enables cone or cylinder to be removed Safety wire interlock system with emergency shut-off Rolls include wiring grooves Includes a conical bending guide roller Mild steel capacity is rated on hot rolled material with 250MPA Specifications: ORDER CODE: S805 MODEL: PR-204A Curving System Type: Initial Pinch Curving Material Length (mm): 2000 Curving Plate Thickness - Mild Steel (mm): 4 Minimum Rolling Diameter (mm): 225 Roll Diameter (mm): 150 Motor Power (kW / hp): 2.2 / 3 Voltage / Amperage (V / amp): 415 Dimensions (LxWxH) (mm): 2530 x 740 x 1200 Floor Space (L x W x H) (mm): 2695 x 1050 x 1215 Nett Weight (kg): 1620 To Purchase Online Please Visit The Machineryhouse Website & Search For 'S805' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
