METALMASTER HP-100T

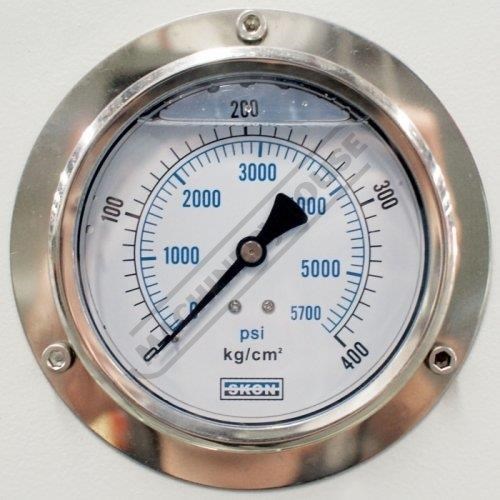

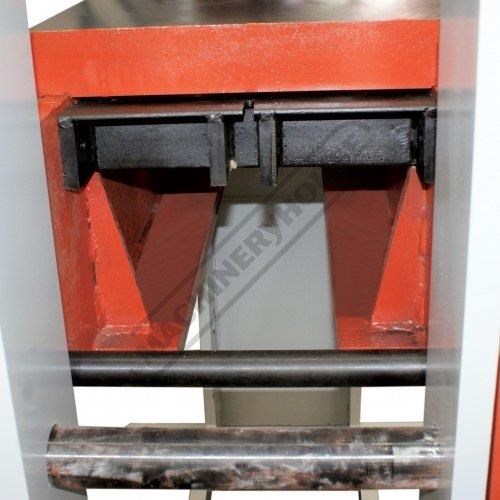

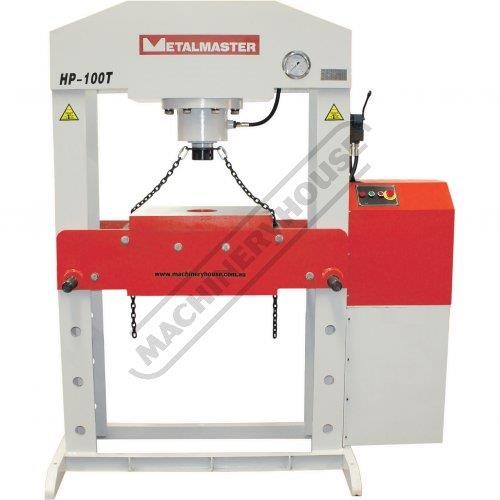

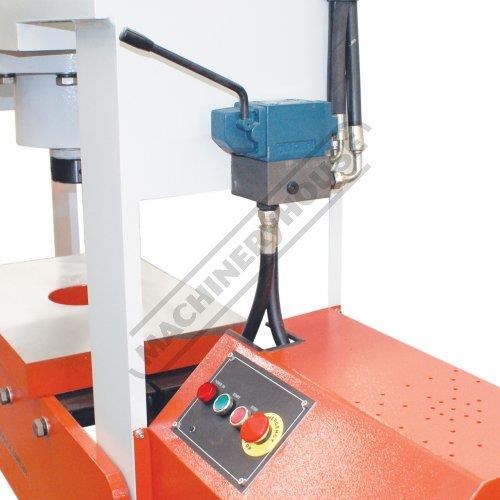

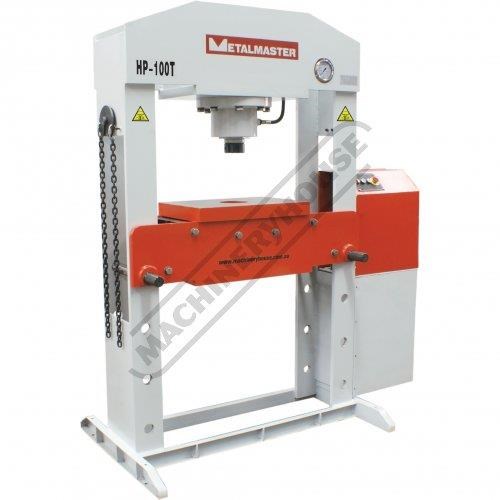

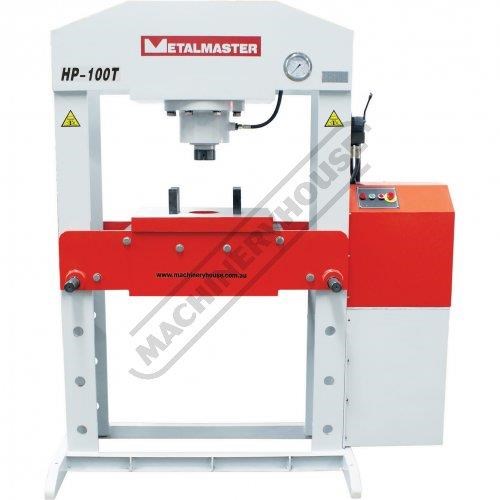

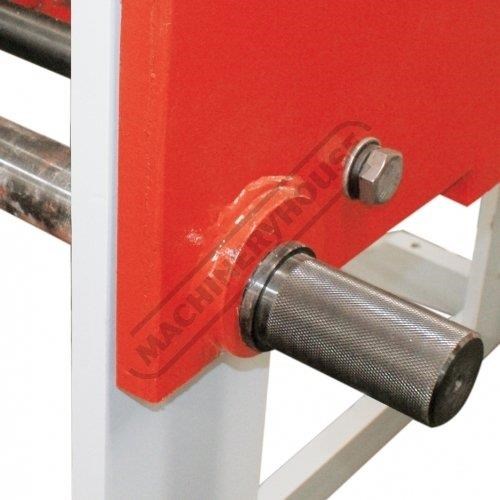

HP-100T Industrial Motorised Hydraulic Press - 100 Tonne Welded Steel Frame Construction Includes He METALMASTER HP-100T Industrial Motorised Hydraulic Press - 100 Tonne Welded Steel Frame Construction Includes Heavy Steel Worktable & Bending Blocks CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: P402 The Metalmaster HP-100T, 100 Tonne electric/hydraulic press is ideal for pressing, bending, forming, straightening and a whole variety of operations. The hydraulic system is equipped with a pressure guage and a joystick lever to control the operation. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard equipment. Features: H frame design with welded steel frame construction Electric/Hydraulic operation provides smooth consistent pressing action Joystick control for ram stroke and return 350mm Ram stroke Ram speed down 9.0mm/sec returns 8.4mm/sec Pressure gauge fitted for easy control of pressing operations Height adjustable worktable with 4 adjustment positions Heavy one piece steel work plate and pressing blocks Work table height easily adjusted with the assiatnce of the ram Reinforced table support holes with high tensile setting pins Safety overload valve Powerful TEFC motor Ideal for any industrial workshop for the repair of axles shafts & press fit of bearings & bushings Includes: - Heavy one piece steel work plate - Pair of double sided pressing blocks (Vee & Flat) - Table raising and lowering chains Specifications: ORDER CODE: P402 MODEL: HP-100T Pressing Capacity (Tonne): 100 Hydraulic Ram Operation (Type): Motorised System Hydraulic Ram Operation (Type): ~ Sliding Ram (left-right) (Yes / No): No Width Between Front Posts (mm): 1050 Width Between Side Posts (mm): 310 Table Top Opening - (Front to Back) (mm): 363 Ram To Table (Max.) (mm): 900 Cylinder Stroke (mm): 350 Ram Diameter (mm): ??100 Piston Diameter (mm): ~ Minimum Air Flow Rate required (L/Min): ~ Motor Power (kW / hp): 7.5 / 10 Voltage (V): 415 Floor Space (W x D x H) (mm): 1920 x 1000 x 2220 Nett Weight (kg): 1342 To Purchase Online Please Visit The Machineryhouse Website & Search For 'P402' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
