Features

Title	MCCLOSKEY J50V2
Type	Screening and Crushing
Sub Type	Screening - Crushing
Class	Jaw Crusher
Make	MCCLOSKEY
Model	J50V2
Sale Price	POA
Listing Type	New
Stock Number	S88
RefCode	TA1226490

Description

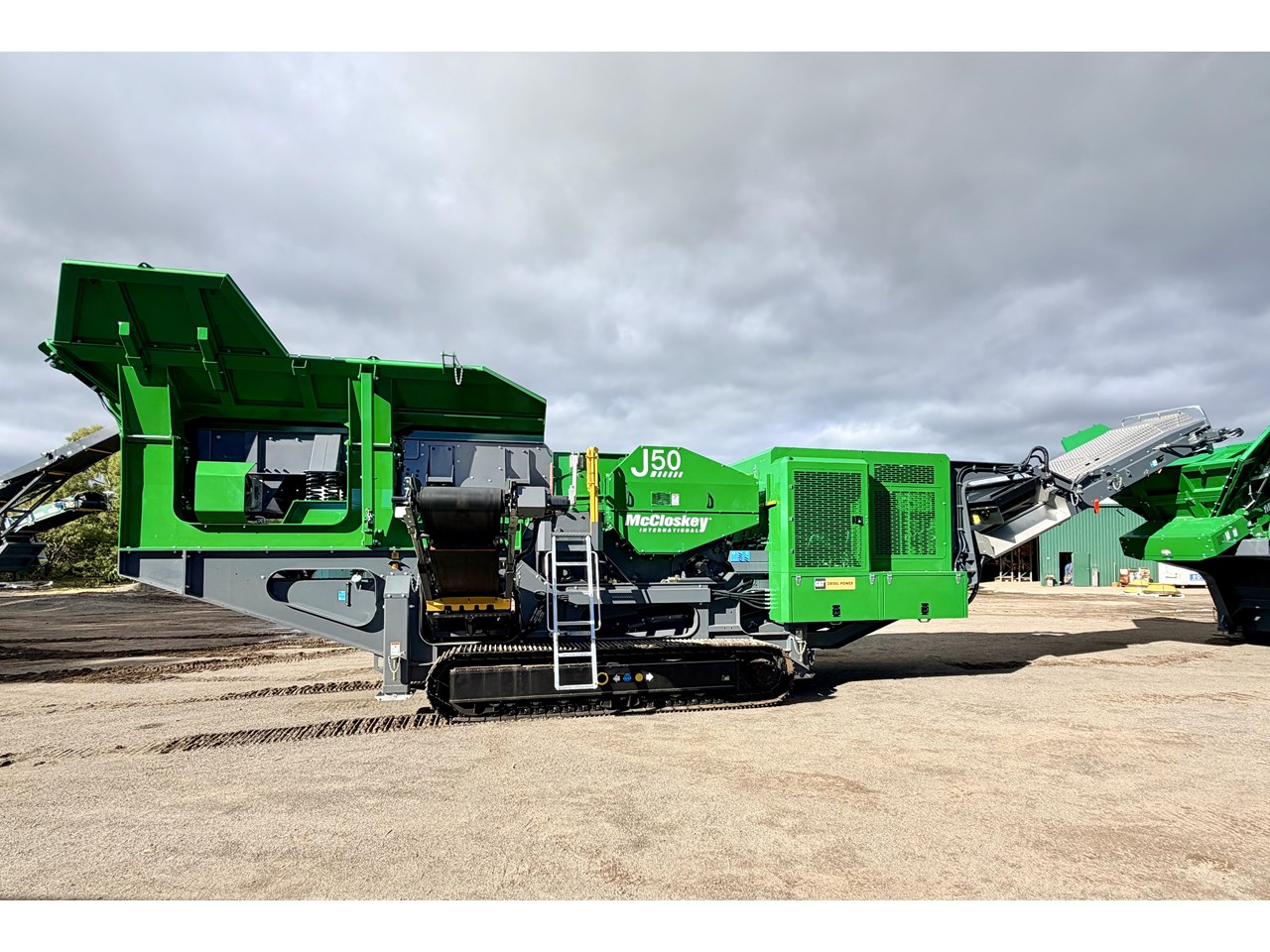

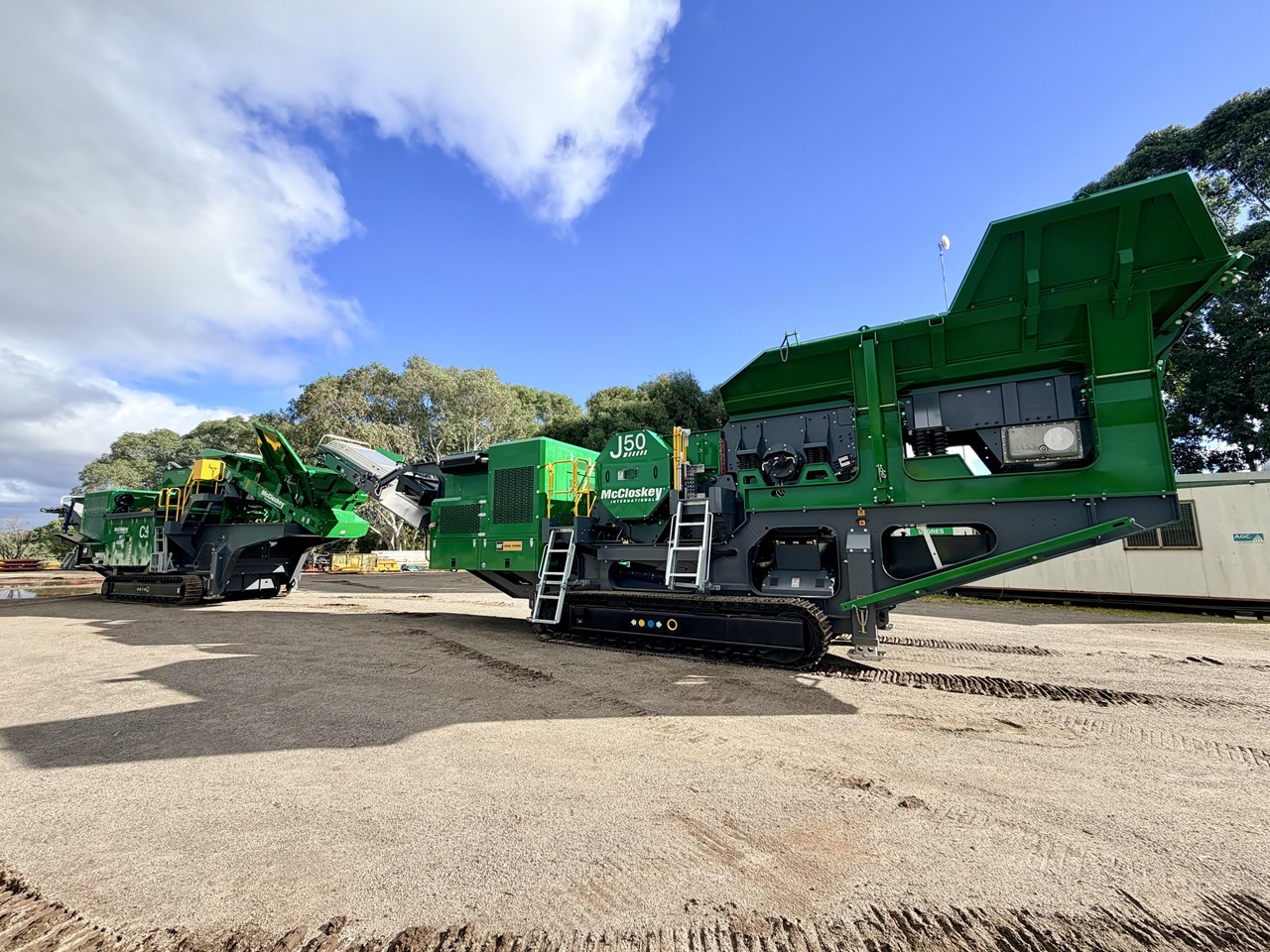

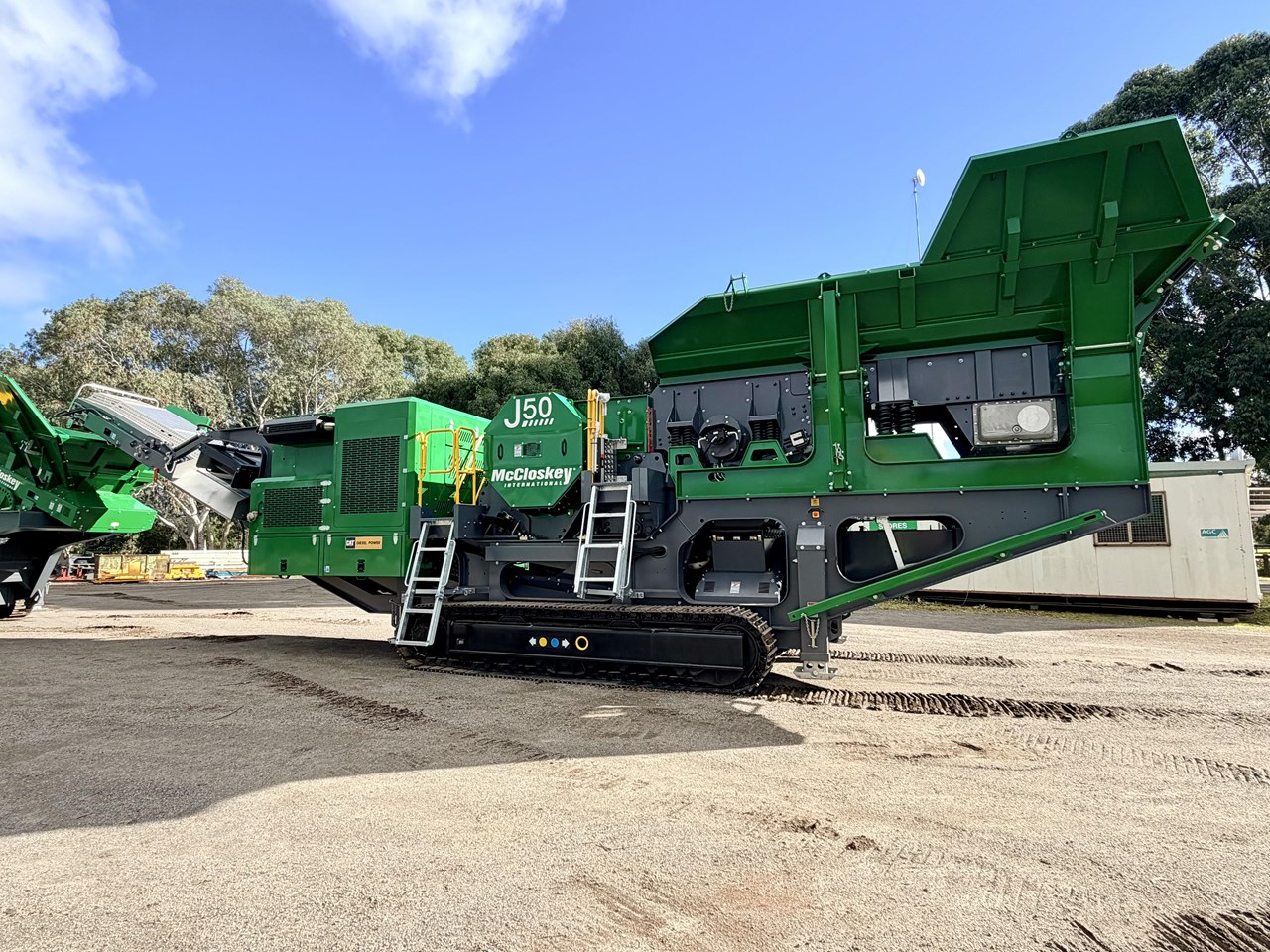

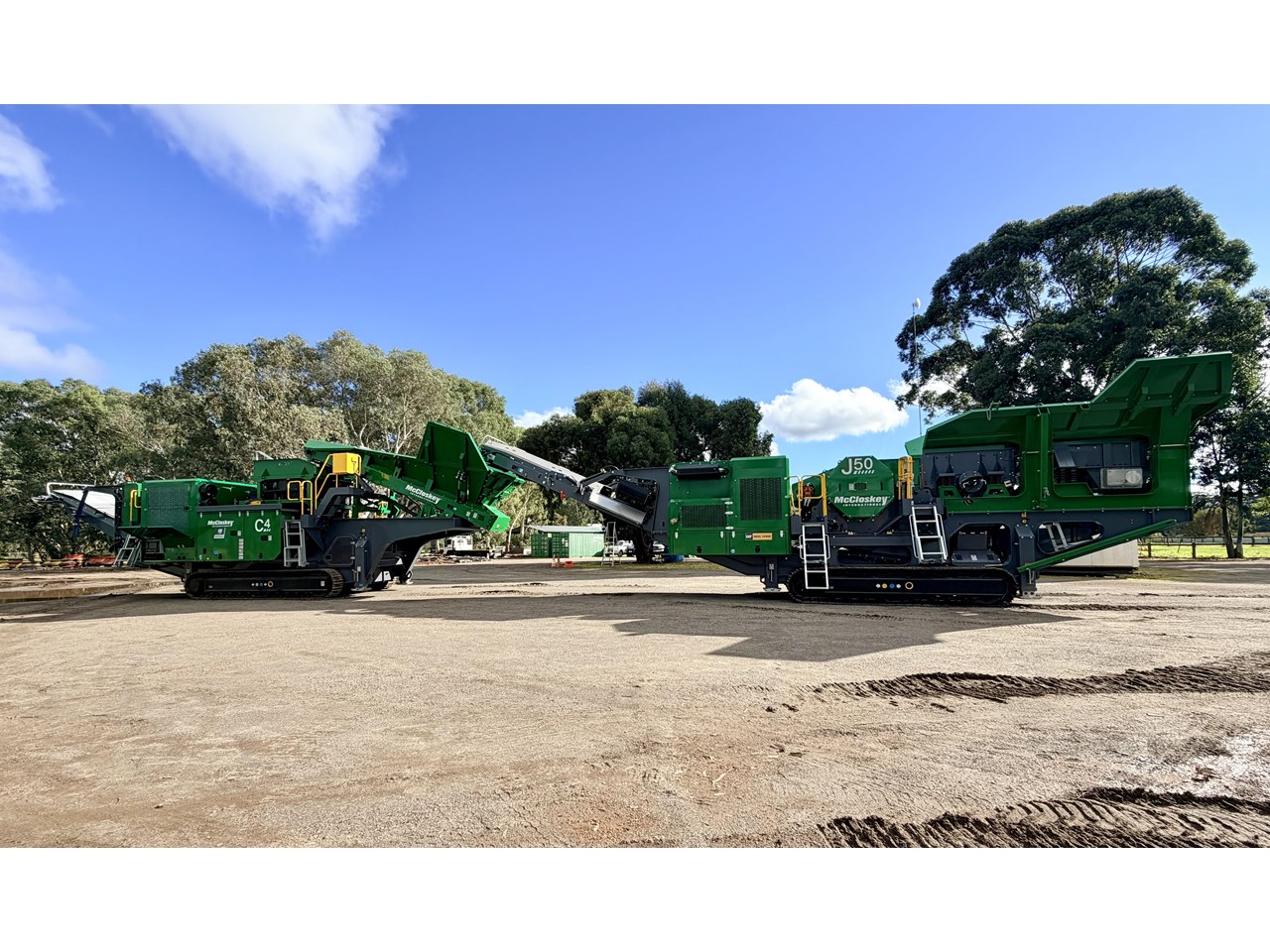

McCloskey J50v2 Jaw Crusher with class leading 50 wide crushing chamber.

50 Jaw Chamber with Bolted Jaw Box.
Hopper Extensions
Longer Main Conveyor
Dust Suppression and Cover
365Siteconnex Telematics (online subscription is extra cost)
CAT LRC C9 engine, 375hp
Jaw Deflector Plate
LIVE Prescreen
Bofor 1.4-3 (35mm-75mm)
Blanking Plate Option
Prescreen, Bottom Deck
Side / Dirt / Fines Conveyor (Not shown in photos. Unused / removed prior to use)
Overband Magnet
Manual Variable Speed On Main Conveyor
Safety Beacon
Yellow Handrails
Additional Information

The McCloskey J50V2 Jaw Crusher is suitable for many hard rock Mining, Quarrying and Recycling crushing applications.

The J50V2 is the largest Bolted Jaw available in its class at 50 x 29 wide (1270mm x 735mm).

The Larger Jaw and Live Pre-Screen on the McCloskey J50 V2 Jaw Crusher provides an unbeatable combination and results in a higher capacity compared to other Jaw Crushers in the same class. You also reduce jaw liner wear.

You can efficiently screen out a guaranteed sized product from the side / scalps conveyor with different meshes as needed.

The live pre-screen works at a constant RPM. The Pan feeder automatically adjusts RPM with a level sensor to keep the jaw fed.

Use of a scalping screen after the jaw is sometimes eliminated. This reduces the amount of equipment required on site.

In Mining Applications, the pre-screen can be used to remove saleable product direct from the side conveyor. E.g -8mm Iron Ore Fines.

For Quarrying applications, the Live Pre-screen efficiently scalps out road-base or overburden. This leaves a clean crushed rock suitable for further processing into aggregates.

When used in Recycling applications, the Live pre-screen removes excess sand from the concrete, which would otherwise put the crushed concrete material out of specification.

The McCloskey J50 V2 Jaw Crusher also benefits from a larger chassis, with wider 1200mm discharge belt giving the highest capacity conveyor and stockpile height available in its class.

The uprated McCloskey J50V2 Jaw Crusher is a larger/heavier duty BOLTED jaw design, featuring hydraulic wedge adjustment.

Push button jaw setting with simple hydraulic controls to operate the crushing plant make the J50V2 the ultimate Heavy-Duty Jaw Crusher.

TYPICAL TRANSPORT DIMENSIONS. (estimated)
L = 17.1m, H = 3.6m, W = 3.1m

Transport weight approx. 57 tonnes (includes all options).
