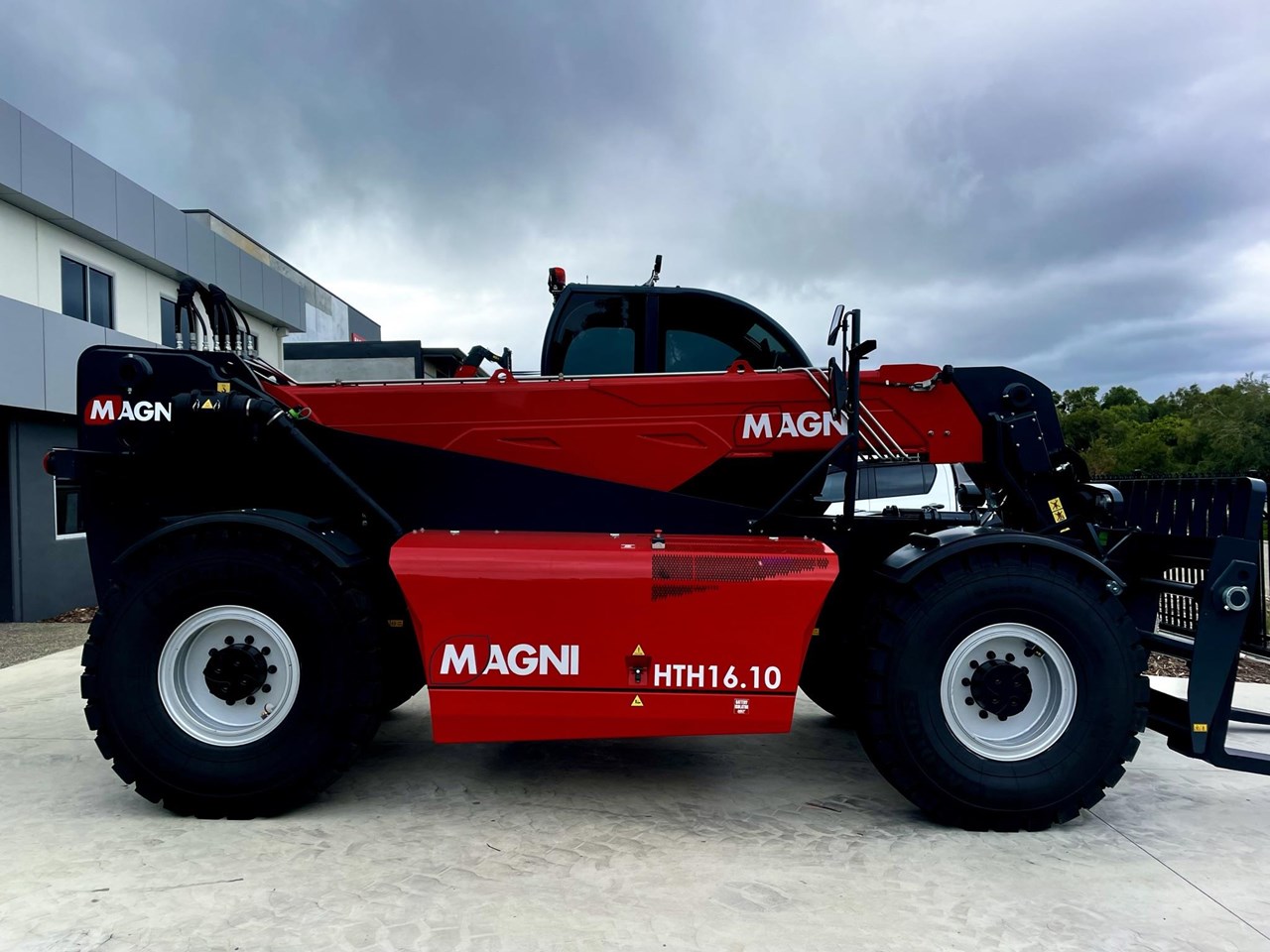

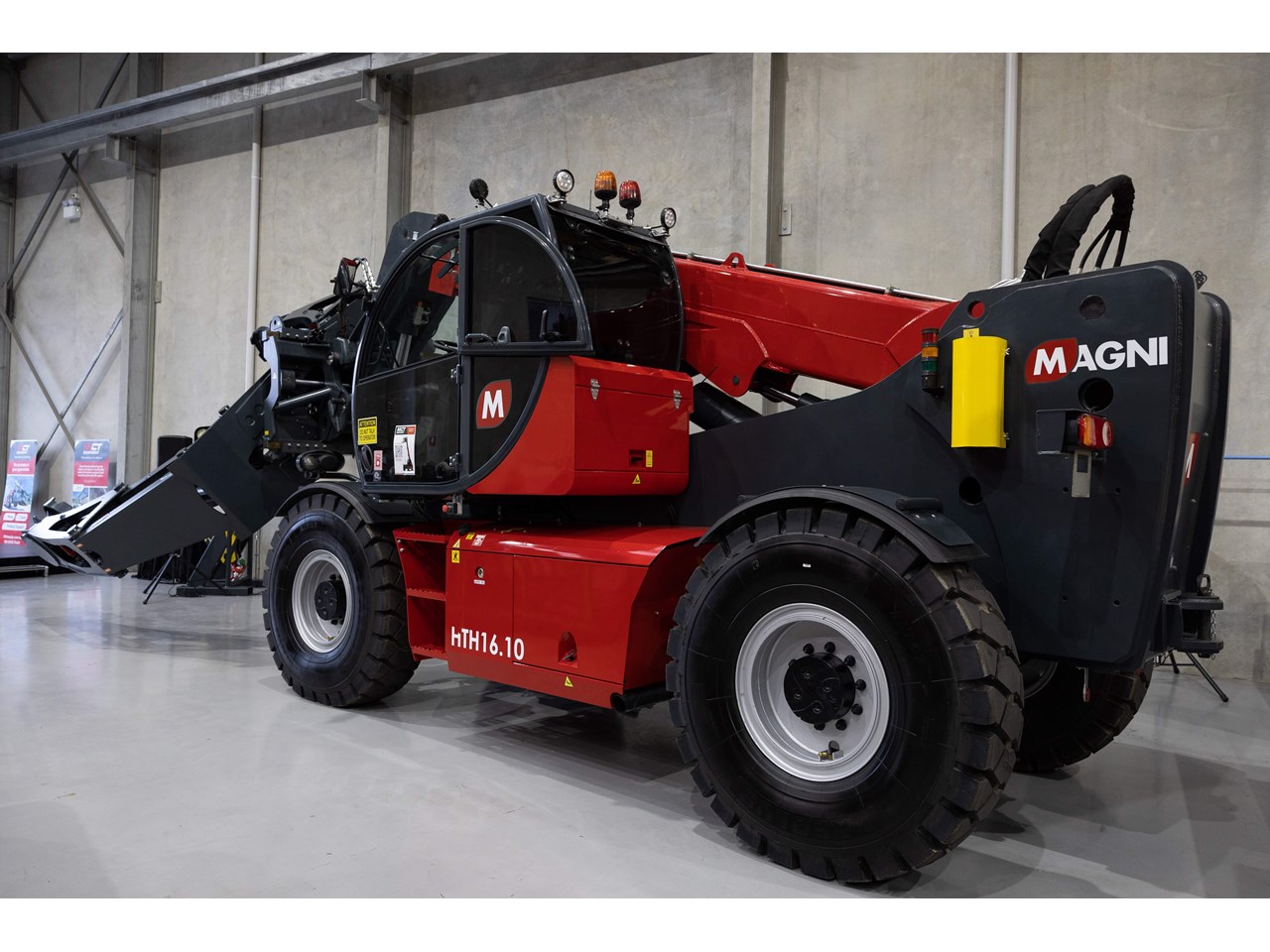

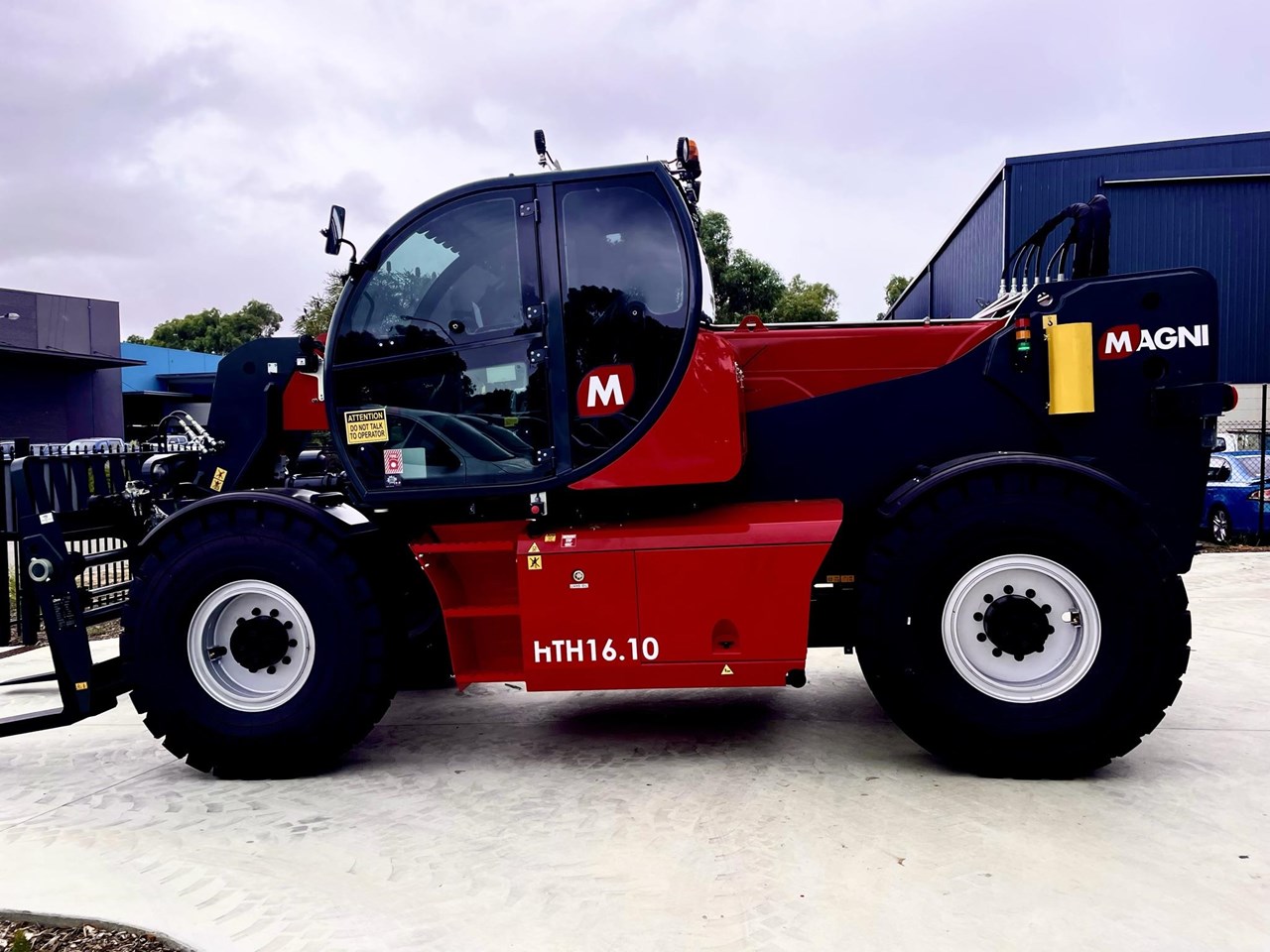

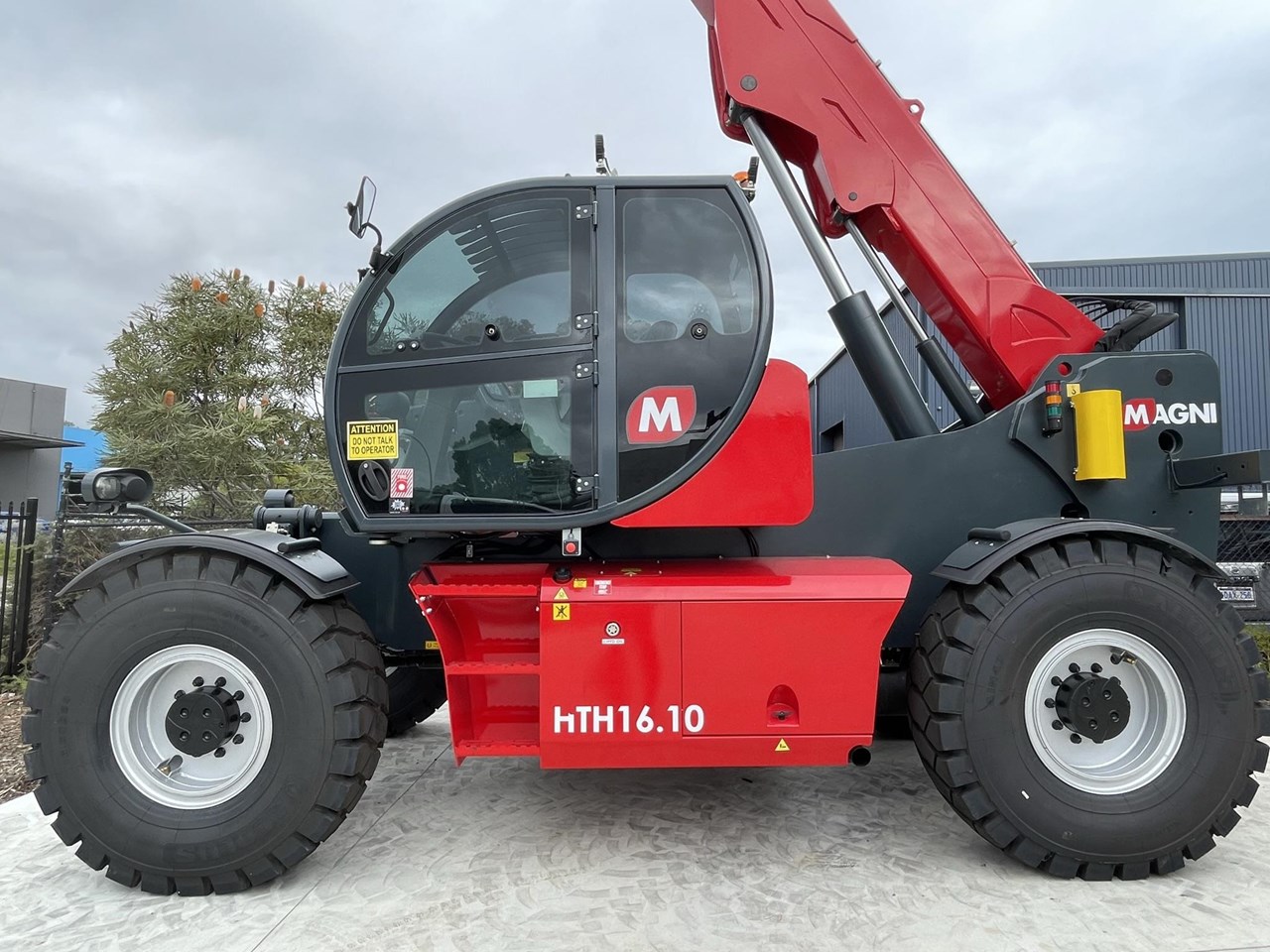

2025 MAGNI HTH 16.10

TheThe HTH 16.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 16 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The standard machine configuration includes:

CAB
Comfort seat
Adjustable steering column
Analogue joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A (5 V) inputs

REAL TIME INFORMATION
Touchscreen, 7
MCTS Magni Combi Touch System on-board software
Automatic RFID tools recognition system
LMI Load Moment Indicator
Onboard and remote integrated diagnostics

TECHNICAL SPECIFICATIONS
Q-Fit Heavy-Duty
Two-line CAN BUS system
Automatic front and rear wheel alignment
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V IP67

Specifications:
o Lifting capacity: 16,000 kg
o Capacity at maximum height: 9,000 kg
o Lifting height: 9.70 m
o Reach: 5.0 m
o Engine: Volvo TAD 582 VE - Stage V
o Rated power: 160 kW (218 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.38 m
o Width: 2.57 m
o Ground clearance: 440 mm
o Unladen weight: 19,200 kg
o Travel speed: 25 km/h
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
o Reversable fan drive: Yes
