HAFCO WOODMASTER ST-12DP2

ST-12DP2 Table Saw Package Deal 820 x 800mm Cast Iron Table ??305mm Saw Blade, Includes 1250mm Slidin

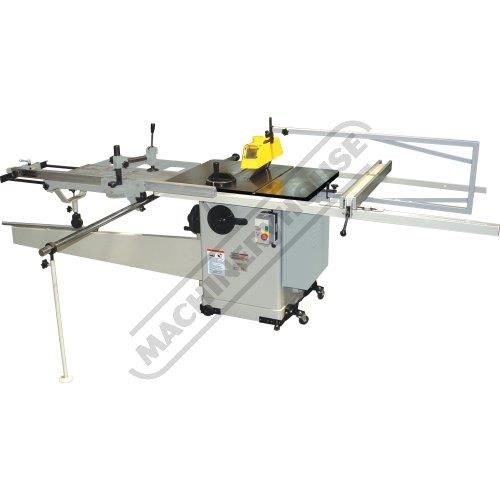

HAFCO-WOODMASTER ST-12DP2 Table Saw Package Deal 820 x 800mm Cast Iron Table ??305mm Saw Blade, Includes 1250mm Sliding Table & Over Head Guard
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K050

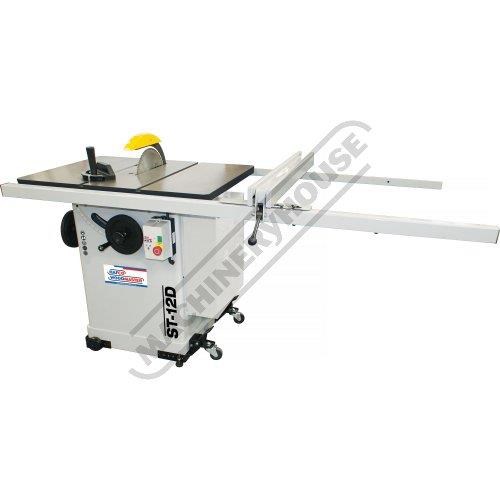

This industrial quality ST-12DP2 table saw package deal with sliding table & over head guard is manufactured in Taiwan and is practically compact in size but of very robust construction and primarily designed to rip through all the hard timbers that is required in many of today???s professional workshops.

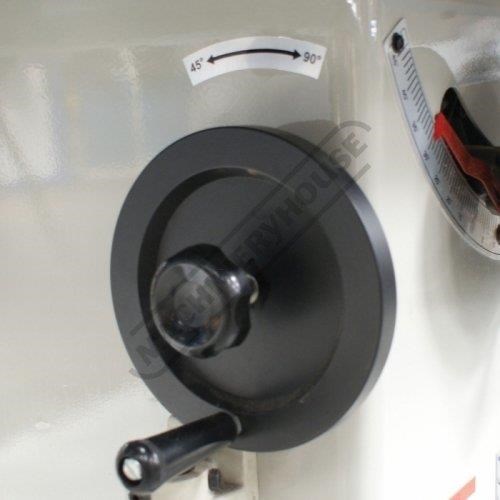

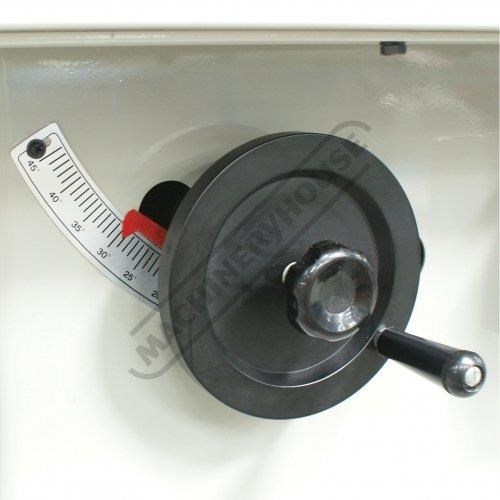

The secret to this great saw is the heavy-duty trunnion that supports the large 305mm blade & drive motor is substantially rigid so it can handle & withstand the workload to perform accurate cuts all day. Furthermore, connected to this mechanism are the two smooth action dials with locks to adjust the desired blade height & tilt angle for each required set up. Like all good industrial saws this saw is built with superior strength in mind and the massive total weight of 249kg is a great example of that.

The main table is extremely heavily webbed cast iron which provides a rigid mounting point to connect the trunnion mechanism to support the 305mm main blade. The induction motor power is provided by a 2.2kW / 3hp 240V via three A-section belts that will drive the blade through the most stubbornness timbers. The heavy-duty fence securely locks onto the front and rear of the extra-long square metal tubes to allow a huge 1220mm ripping capacity.

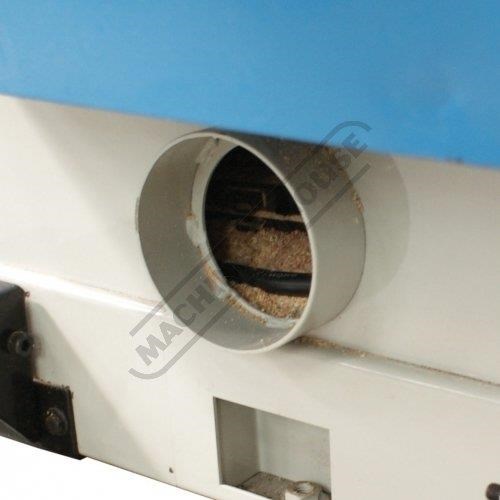

This great saw also includes a mitre guide, mobile wheel base kit that allows you to move the saw around your workshop and a rear dust port that will remove internal dust from underneath the blade when connected to a comparable optional dust extraction system.

Features:
Robust Saw Bench suitable for the professional workshop
Tilt arbor 45??

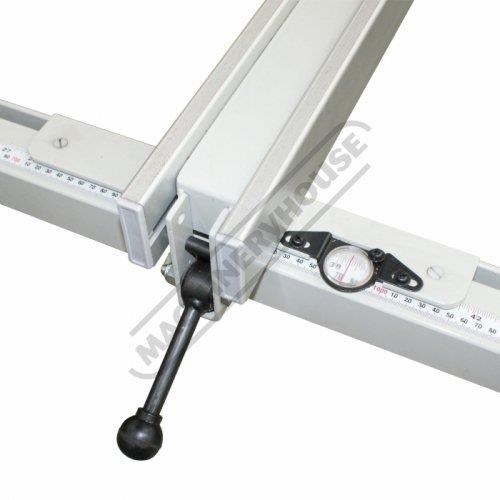

Heavy duty quick-action 1220mm rip fence
Heavy duty 950 x 690mm cast iron table
Triple A section V-belt drive for maximum power transmission
Heavy steel fabricated stand with 100mm dust chute

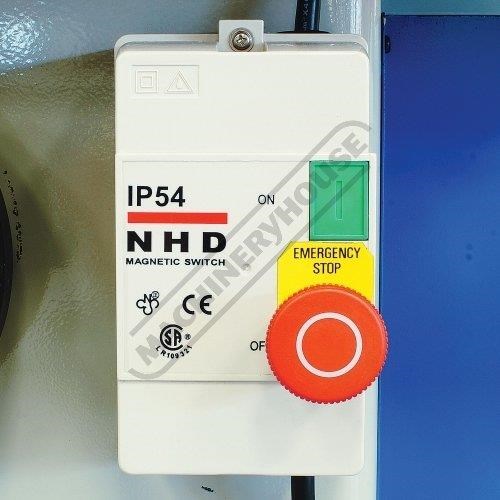

Emergency stop contactor switch with overload protection

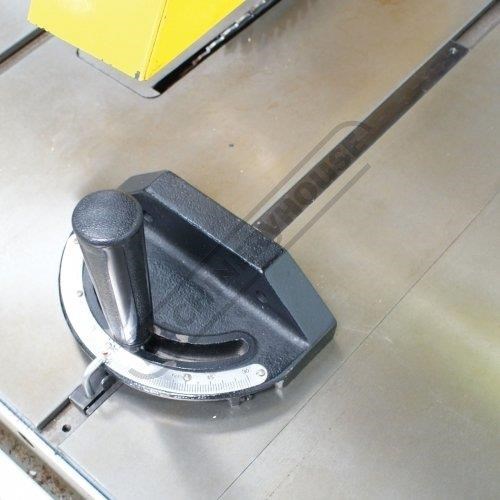

Includes Mitre guide & 305mm TCT blade
Industrial Taiwanese Machine

Please Note:
This machine is not supplied with a 240 volt plug

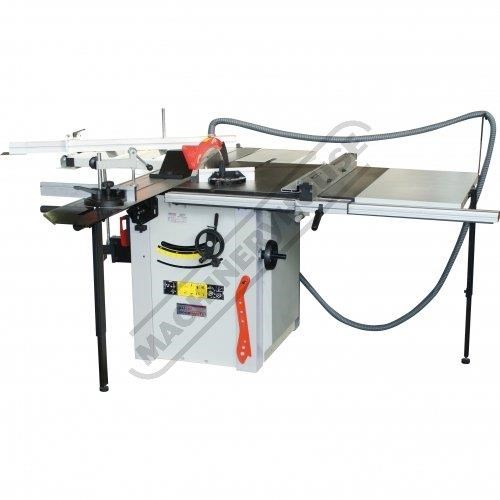

SBST-12D - Sliding Table - (W458)

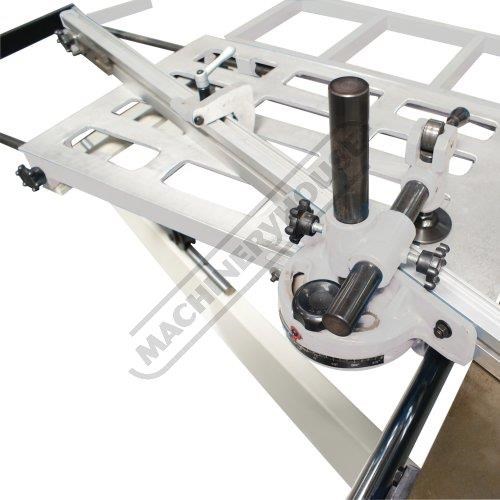

1250mm Sliding table

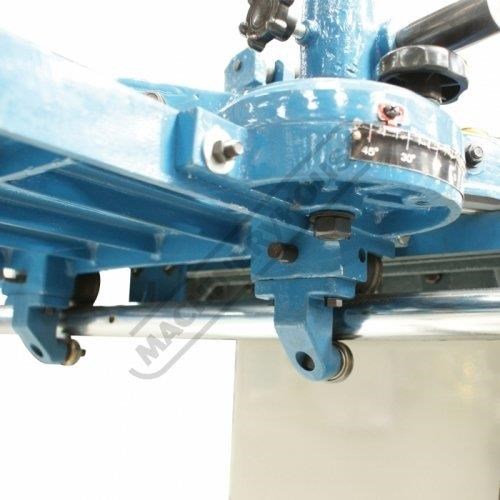

Pivoting work fence & quick action material clamp
Can rip 2440 x 1220mm timber sheets
Includes material length stop

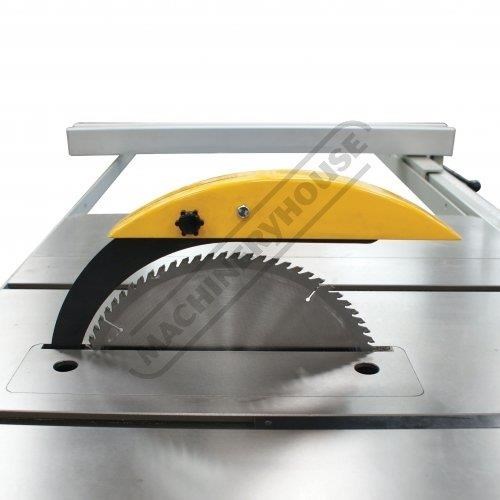

SBG-12D - Saw Guard Hood - (W459)
Saw guard hood with 60mm dust extraction chute
Bolts on to side of table saw
Adjustable height on guard
Clear viewing panel
Guard allows saw blade to tilt

Includes:

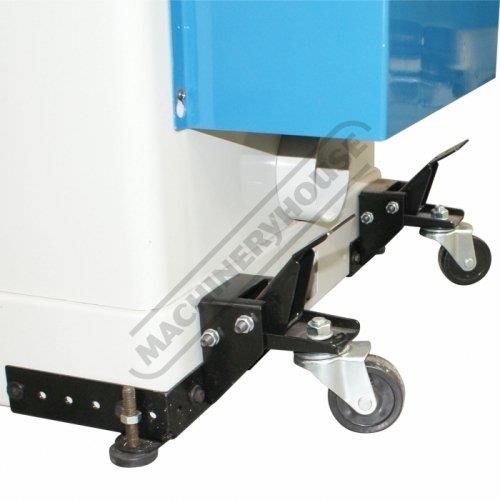

- Mobile wheels
- Mitre guide
- Heavy duty quick action rip fence



Specifications:
ORDER CODE: K050
MODEL: ST-12DP2
Blade Diameter (mm): ??305
Table Size (W x H) (mm): 950 x 690
Table Size With Extensions (mm): -
Max. Depth Of Cut 90?? & 45?? (mm): 95 / 70
Scribe Blade Diameter (mm): ~
Tilt Arbor To 45??: Yes
Sliding Table Stroke (mm): 1250
Cross Cut with Flip Over Stop (mm): 1640
Cross Cut with Extension Stop (mm): 2790
Rip Capacity (mm): 1220
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 20
Floor Space Required (W x D x H) (mm): 4380 x 2500 x 1220
Weight (nett) (kg): 360


To Purchase Online Please Visit The Machineryhouse Website & Search For 'K050'
