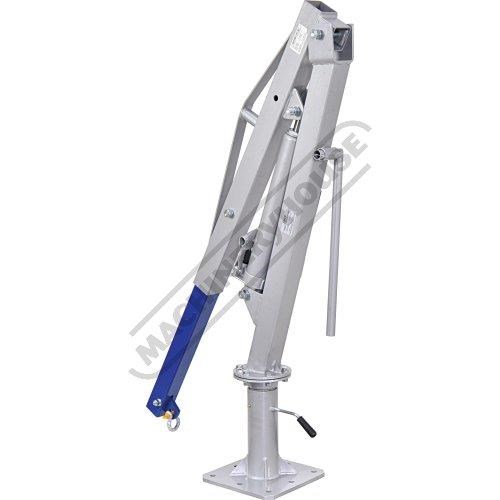

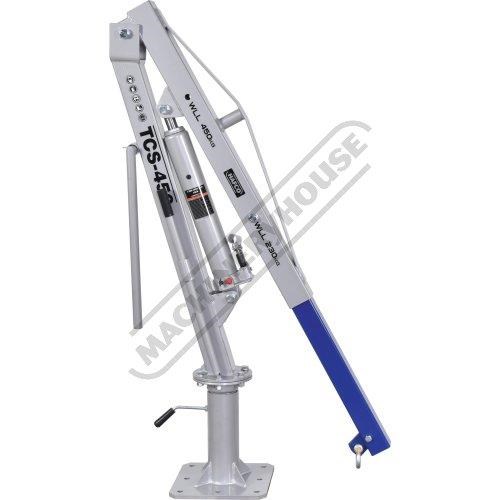

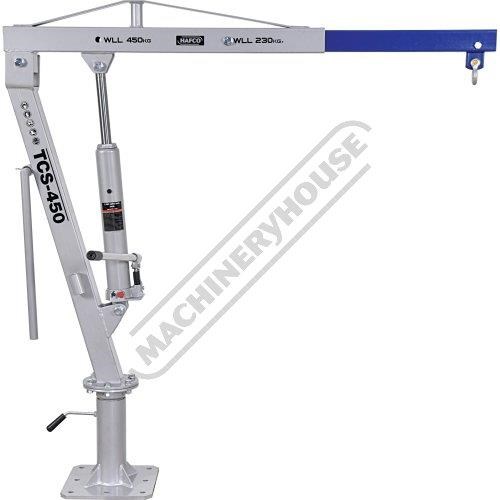

HAFCO TCS-450

TCS-450 Swivel Crane - Truck or Ute 450kg Lifting Capacity 2350mm Max. Lift Height

HAFCO TCS-450 Swivel Crane - Truck or Ute 450kg Lifting Capacity 2350mm Max. Lift Height
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A353

Keep it in your workshop, or the back of your ute or truck

Features:
Heavy duty construction
450kg & 230kg lifting positions

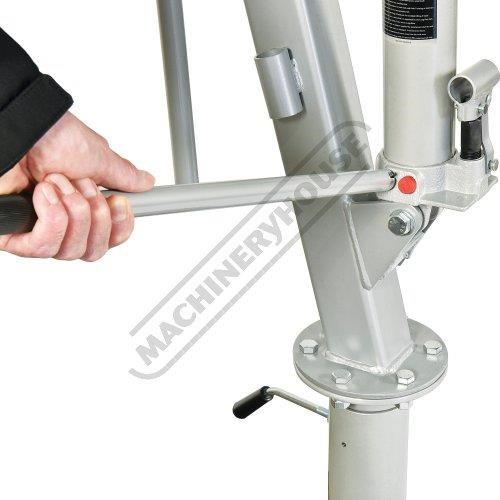

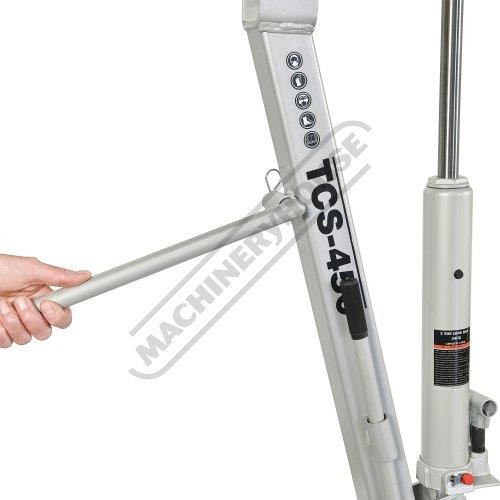

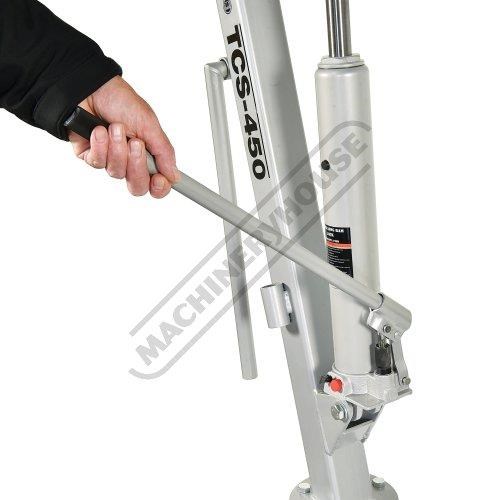

Manual hydraulic lifting pump
360?? continuous manual rotation

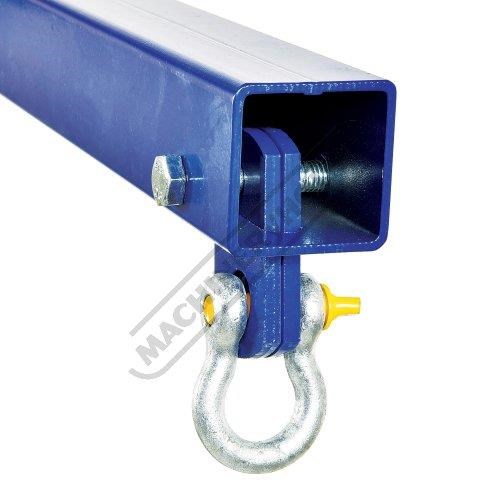

Supplied with a load rated bow shackle

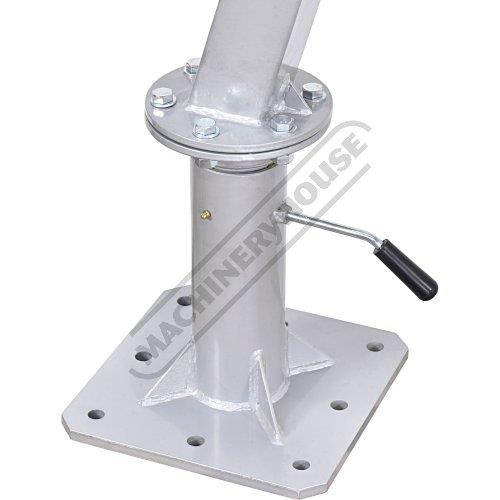

268 x 268mm base plate

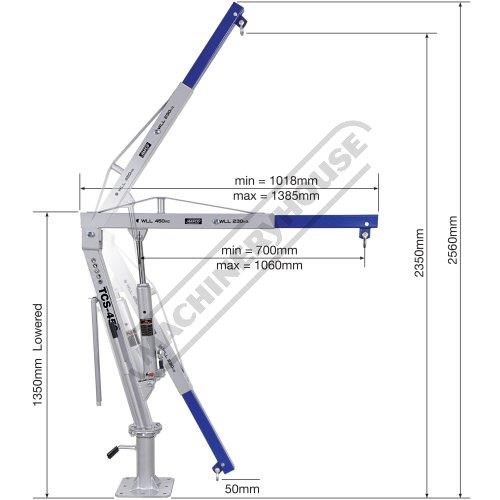

Lifting height (Base to Lifting Shackle): 2350mm
Storage height folded (from base): 1350mm

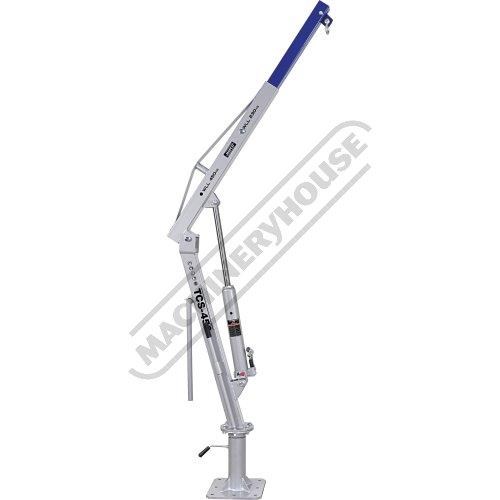

2 position telescoping boom: 450kg @ 700mm Horizontal Throat 230kg @ 1060mm Horizontal Throat


Specifications:
Order Code: A353
MODEL: TCS-450
Hydraulic Ram (Tonne): 3
Power Supply (V): ~
Single Line Lifting Capacity (kg): 450
Double Line Lifting Capacity (kg): ~
Lifting System (Type): Hydraulic - Manual
Lift Capacity Pin Locations (Kg): 450 & 230
Steel Box Section Size - Vertical Support (mm): 70 x 70
Steel Box Section Size - Extension Arm Support (mm): 70 x 70
Max. Lift Height (Base to Lifting Shackle) (mm): 2350
Min. Lift Height (Base to Lifting Shackle) (mm): 50
Overall Height - Boom at Lowest Position (mm): 1350
Nett Weight (kg): 48.5


To Purchase Online Please Visit The Machineryhouse Website & Search For 'A353'
