Contact Seller
Features
| Title | HAFCO METALMASTER HM-51B |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | HM-51B |
| Sale Price | $6,490 GST Exclusive |
| Listing Type | New |
| Stock Number | 498624 |
| RefCode | TA1269422 |
Description

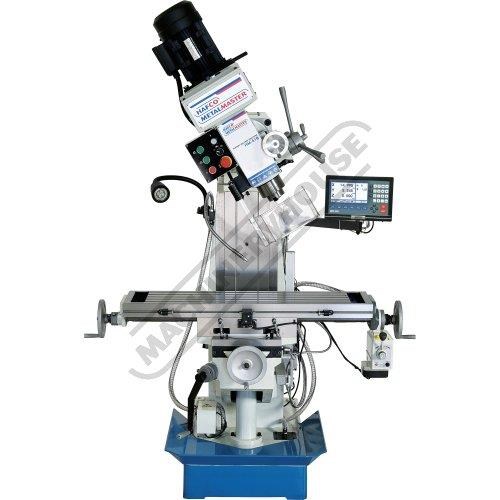

HM-51B Workshop Turret Milling Machine Table Travel: (X) - 580mm (Y) - 190mm (Z) - 350mm Includes Di
HAFCO-METALMASTER HM-51B Workshop Turret Milling Machine Table Travel: (X) - 580mm (Y) - 190mm (Z) - 350mm Includes Digital Readout System & Swivel Table
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M577

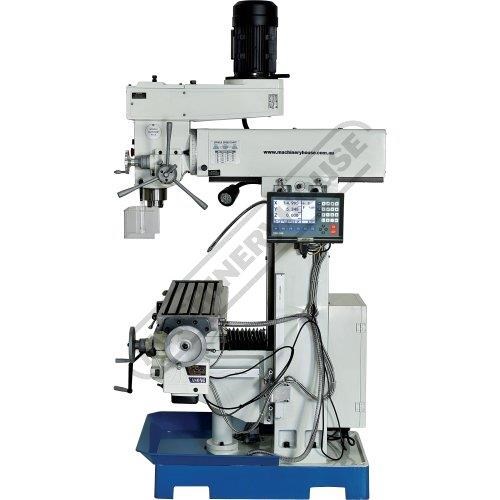

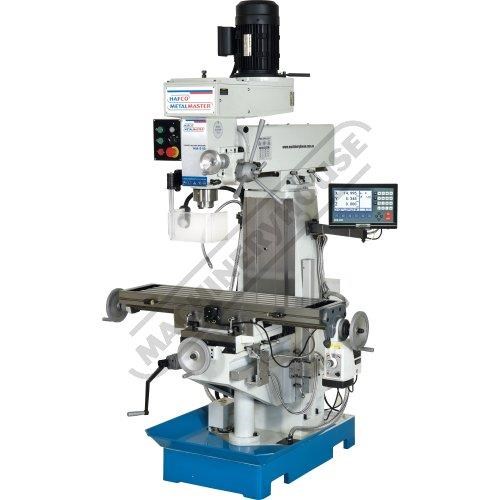

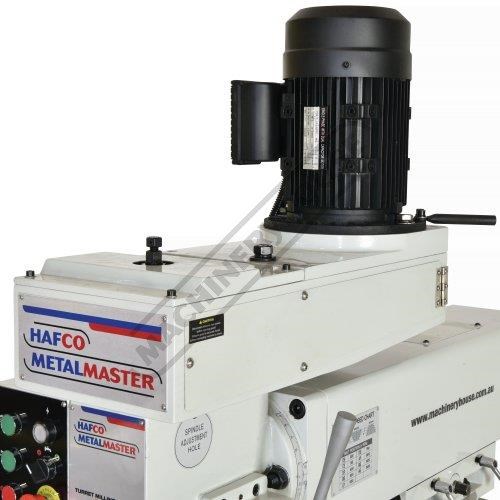

A well-built entry level turret milling / drilling machine with a powerful continuous-load 2.2kW / 3hp motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 580mm X axis by 190mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The screwed belt guard covers on each side of the head offer secure safety whilst providing easy access to the belts and pulleys for speed changing.
Other features include 3 axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, coolant system, X axis power feed unit, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.
Features:

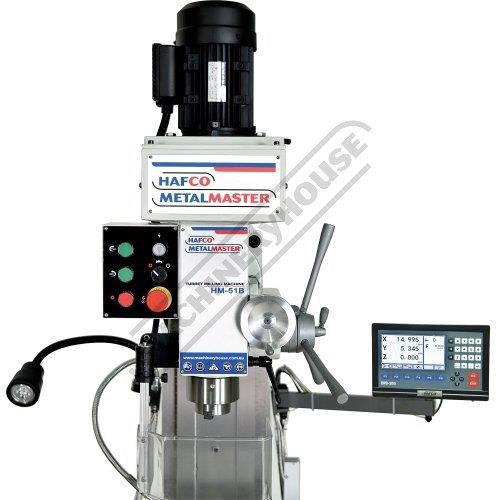

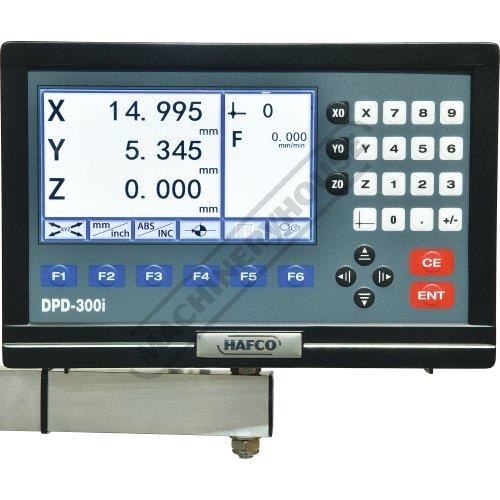

3 Axis digital readout system

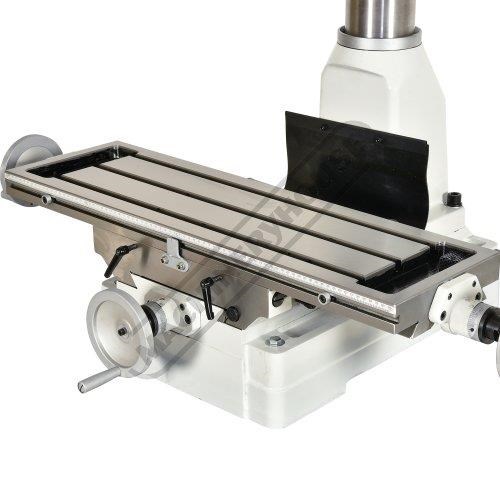

Swivel table left & right with graduated scale

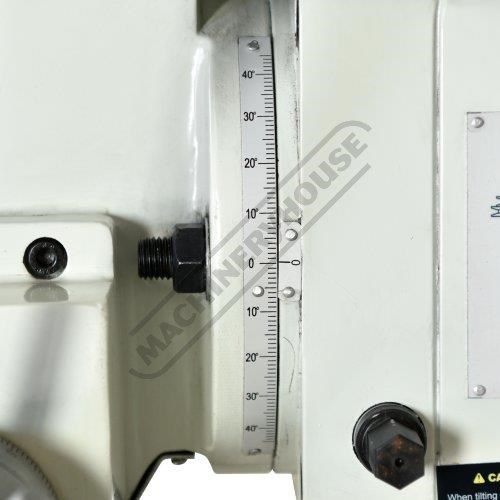

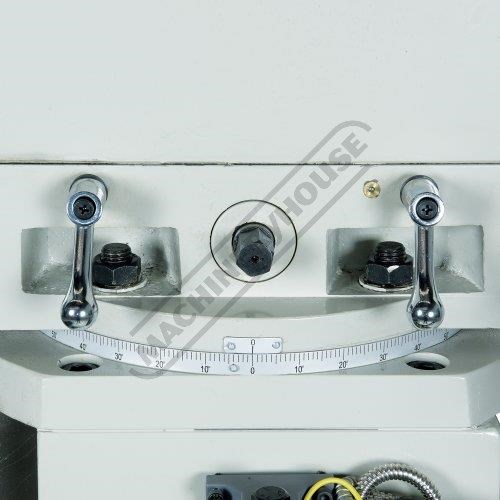

Mill head tilts to ??90?? left to right
300mm horizontally sliding and rotating ram
NT30 vertical spindle is hardened and ground
Precision-ground dovetail slide-ways and table
Precision milling table incorporating machined T-slots

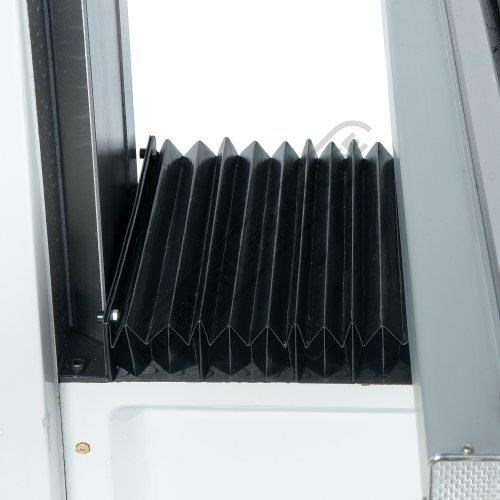

Rear concertina slide-way cover

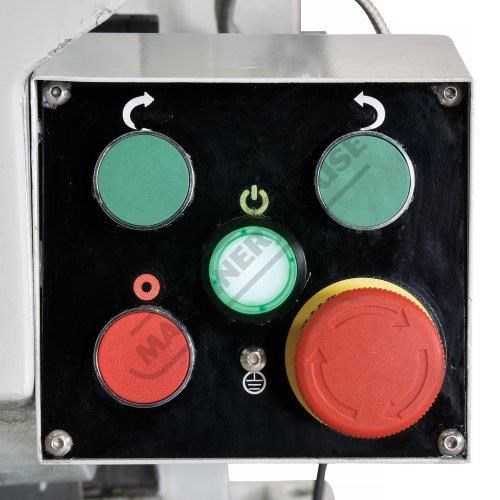

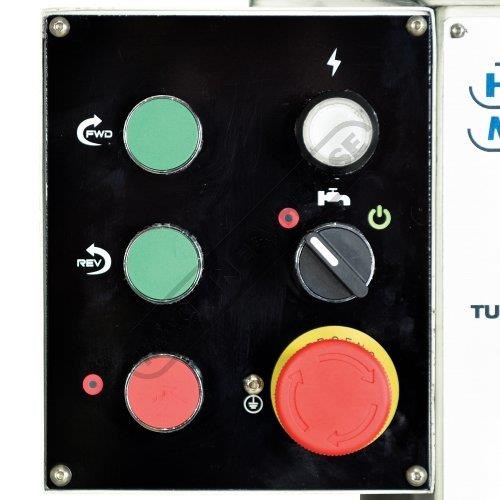

Forward and reverse on/off switch

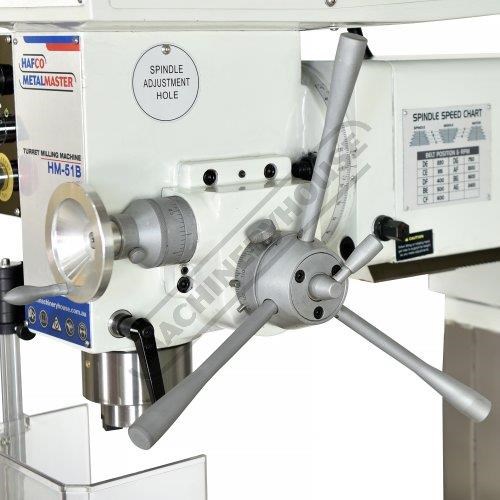

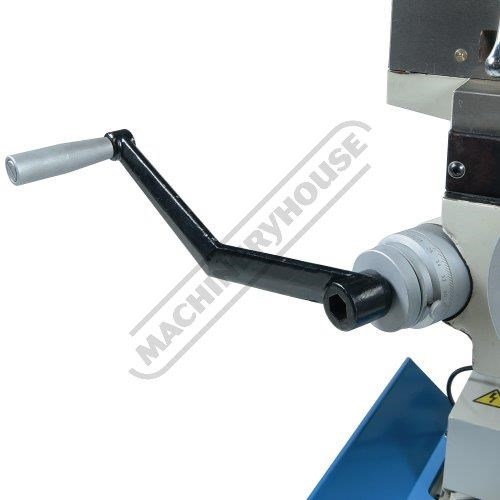

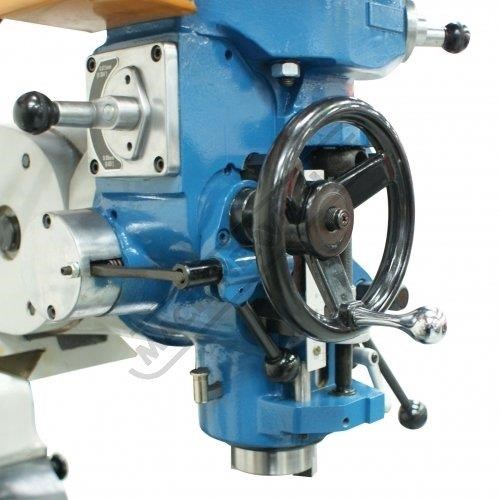

Fine hand wheel operated quill feed
Swarf & splash tray
Spindle lock for quill

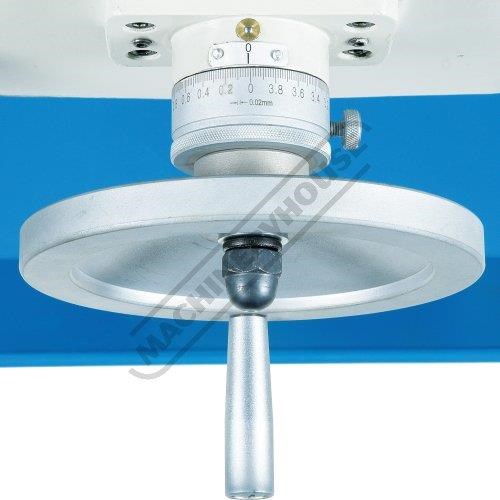

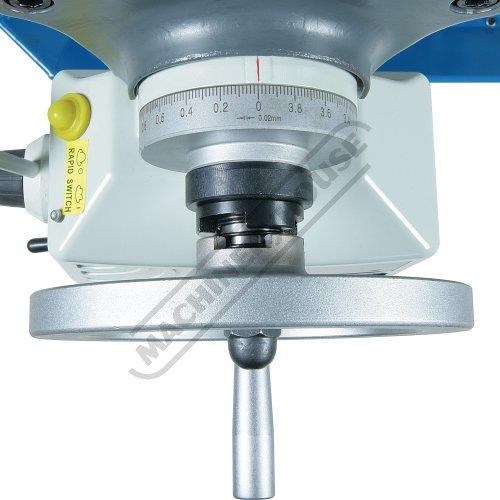

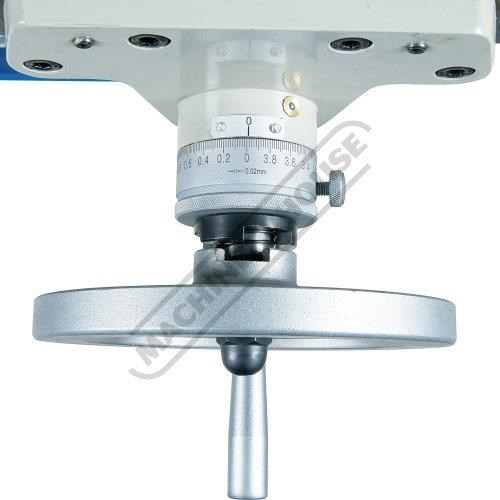

Metric dial graduations @ 0.02mm for X Y & Z-Axis
Vertical quill hand-wheel dial graduations @ 0.05mm
All slides utilise dovetail construction for maximum rigidity
Includes:
- 3 Axis digital readout system

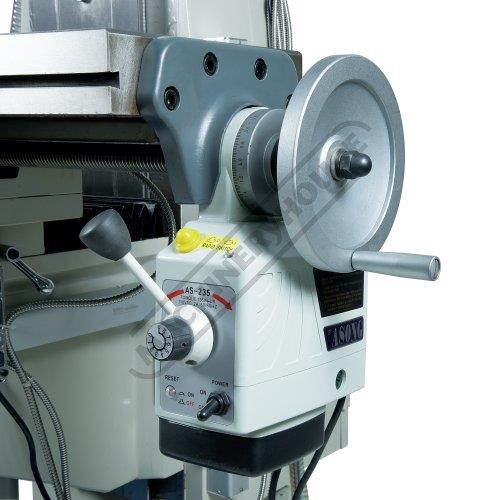

- X-Axis power feed

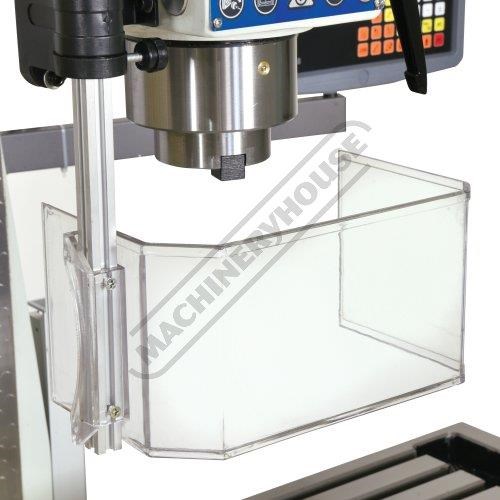

- Safety cutter guard
- Swarf tray

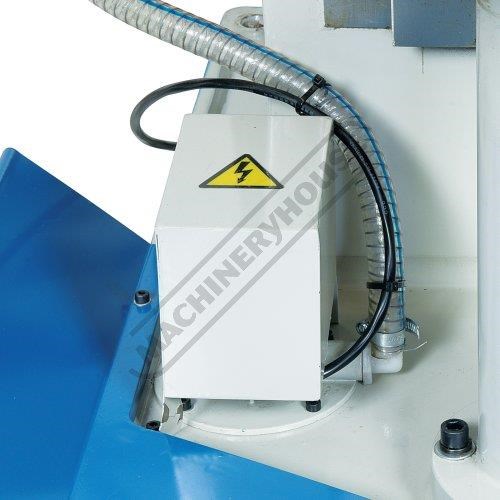

- Coolant system

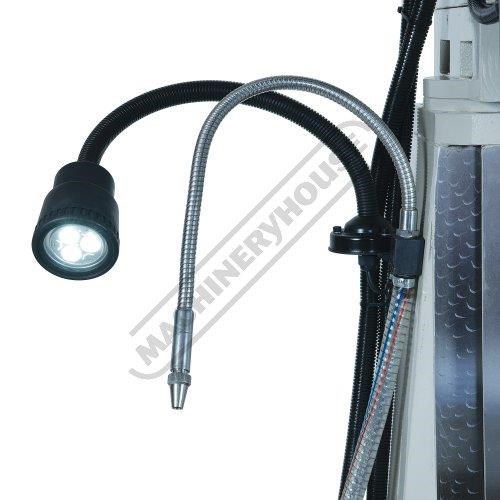

- Halogen lamp
- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar
Specifications:
ORDER CODE: M577
MODEL: HM-51B
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1000 x 240
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 580*
Cross Travel (Y-Axis) (mm): 190*
Vertical Travel (Z-Axis) (mm): 350
Type of Slides: Dovetail
Ram Travel (mm): 350
Spindle to Table (mm): 390
Spindle to Base: ~
Spindle Travel / Diameter (mm): 125 / 90
Throat Depth (max.) (mm): 550
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 30
End Milling Capacity (mm): 25
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): Manual
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional *
Power Feed - Vertical (Z-Axis) (mm/min): Optional *
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 175

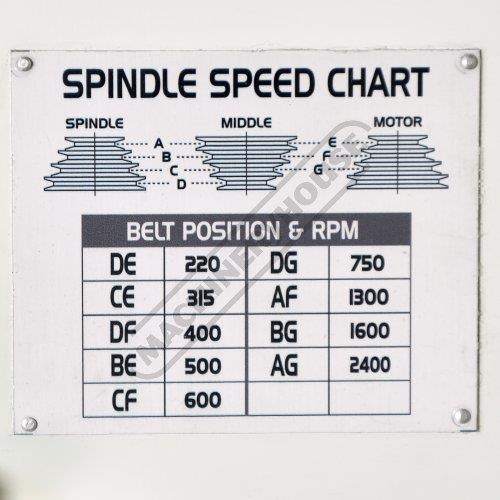

Spindle Speeds Vertical (No./ rpm): 9 (220 - 2400)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 850
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M577'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
