Title HAFCO METALMASTER BS 460FAS
Make HAFCO METALMASTER
Sale Price $65,945
Listing Type New
Stock Number B112
RefCode TA515188

Description

BS-460FAS - Automatic Hitch Feed & Swivel Head Metal Cutting Band Saw (415V)

CALL FOR OUR BEST PRICE

Order Code: B112BS-460FAS - Automatic Hitch Feed & Swivel Head Metal Cutting Band Saw (415V)
610 x 380mm (W x H) Rectangle
45 degree Mitre Cutting

Description
Manufactured in Taiwan

Fully automatic and intelligent HMI touch screen programmable controller accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system

Features
Swivelling head for mitre cutting to 45 degree
Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun
Inverter controlled infinitely variable blade speed 25-85mpm
Precision feed pressure & feed rate dual valve system for optimal performance in any material

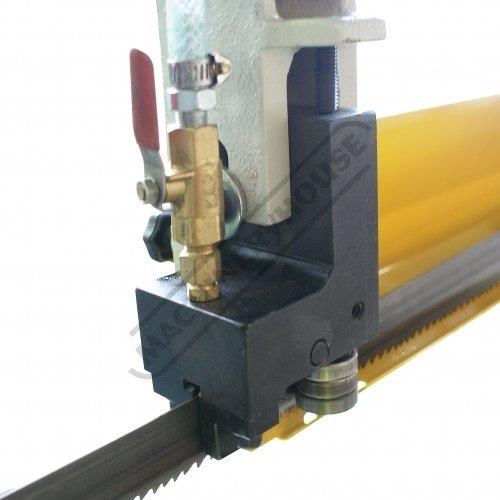

Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
Synchronised power driven blade cleaning brush removes swarf from blade

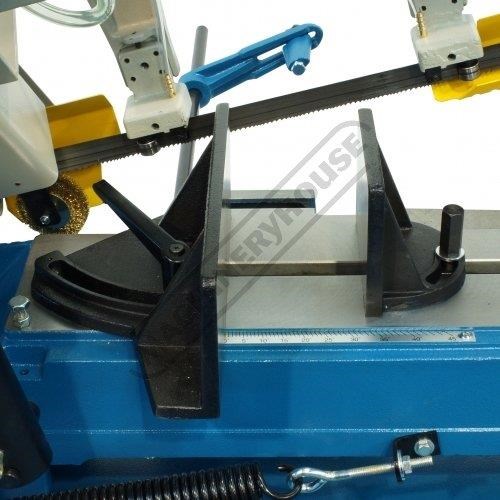

Dual vice clamping providing burr free cut
Full stroke hydraulic vice for quick & easy set-up of jobs
Hydraulic swarf conveyor directs excess waist to side of machine

ORDER CODE B112
Model BS-460FAS
Cutting Head Beam Fully-Automatic
Operation Type Swivel Head
Round @ 90º 460mm
Round @ 45º 380mm
Square @ 90º 460mm
Square @ 45º 380mm
Rectangle (W x H) @ 90º 610 x 380mm
Cutting Beam Return Automatic-Hydraulic
Vice Clamping Fixture Automatic-Hydraulic
Bundle Cutting Fixture
Coolant System
Table Working Height 925mm
Blade Steps / Speeds Variable 25-85 M/min
Blade Size (L x W x T) 5330 x 41 x 1.3mm
Motor Power 3.75kW / 5hp
Voltage 415V
Weight (nett) 1770kg

all prices and specifications are subject to change
