| Title | HAFCO METALMASTER AL-346V |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | HAFCO METALMASTER |
| Model | AL-346V |
| Sale Price | $7,290 GST Exclusive |
| Listing Type | New |
| Stock Number | 276785 |
| RefCode | TA1276036 |
Description

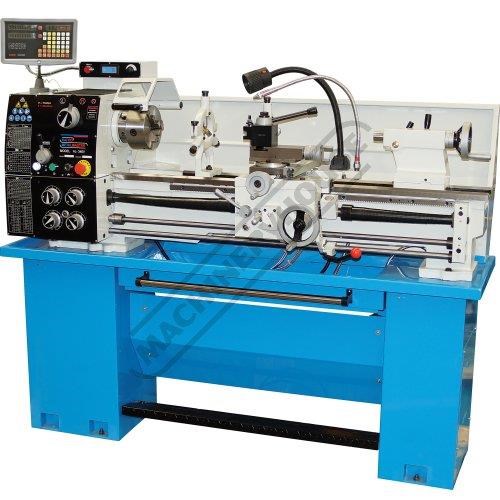

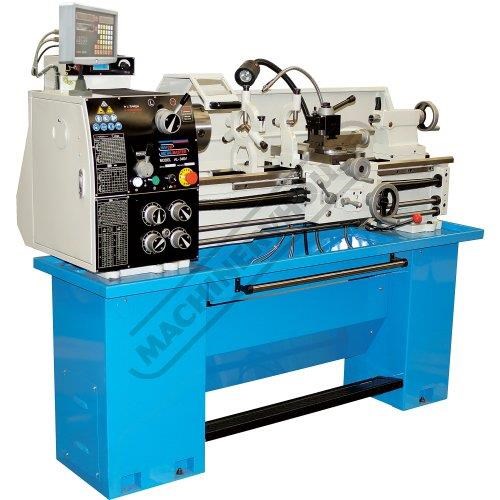

AL-346V Centre Lathe ??330 x 1000mm Turning Capacity - ??40mm Spindle Bore Includes Digital Readout Sy
HAFCO-METALMASTER AL-346V Centre Lathe ??330 x 1000mm Turning Capacity - ??40mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost & Electronic Variable Speed With Digital Display
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L555D
Features:

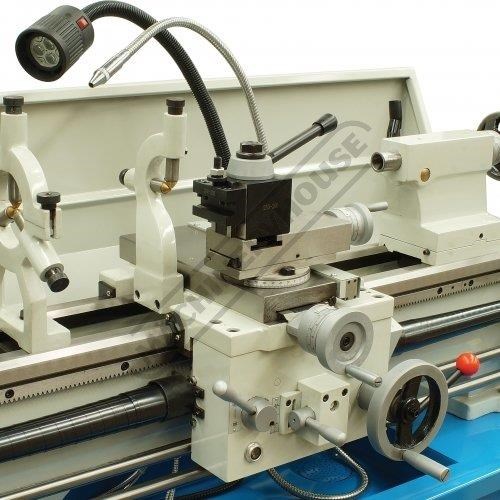

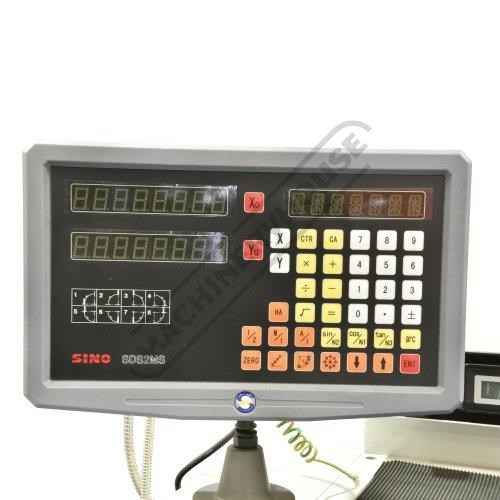

2 Axis digital readout system

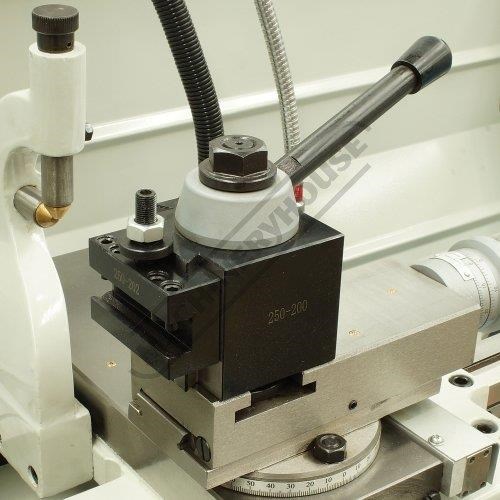

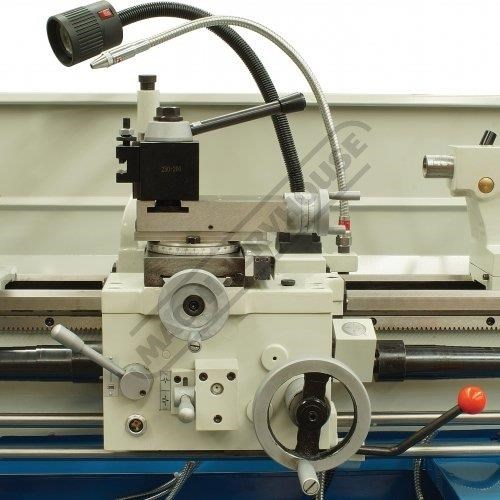

Quick change toolpost with 4 holders
Concertina leadscrew cover

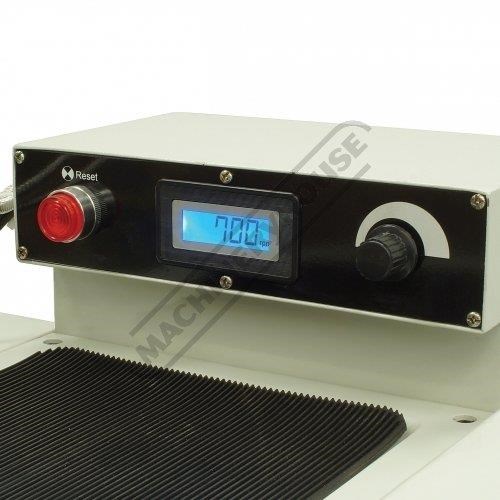

Electronic infinitely variable inverter spindle speed with digital display

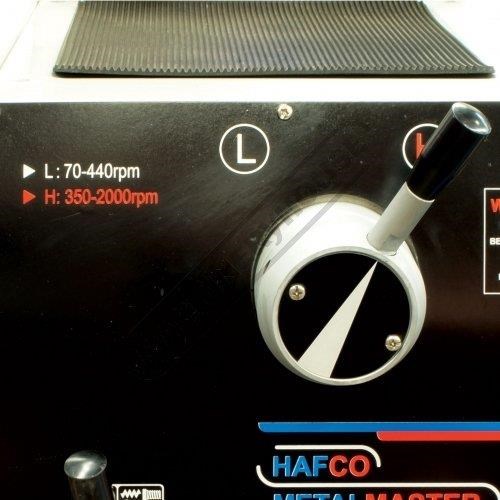

Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting

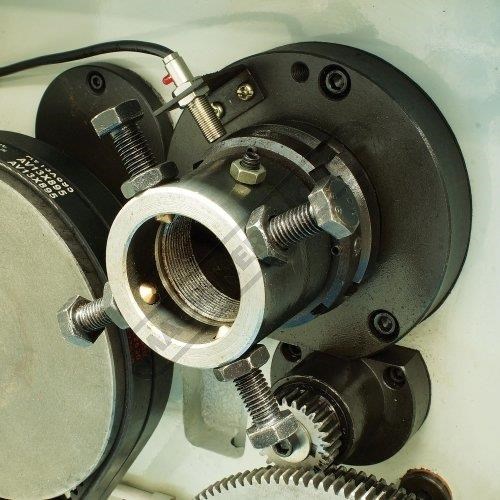

Adjustable spindle bore bar support mechanism
Slide out swarf tray with handle
Headstock protection rubber matt

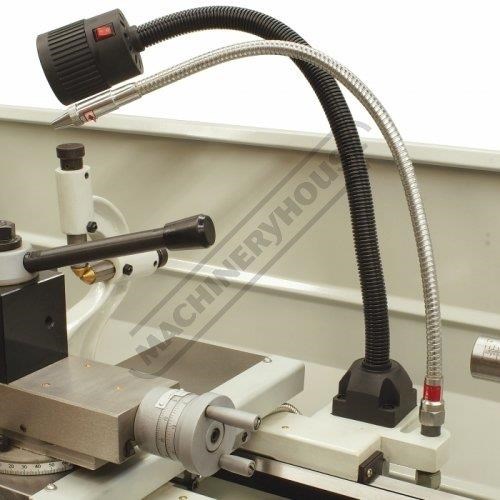

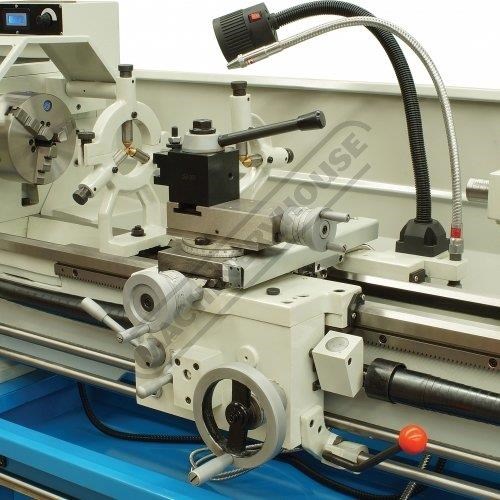

Low voltage LED work light
Foot operated cut out safety switch for electric motor
Slide out front swarf tray for easy cleaning
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle

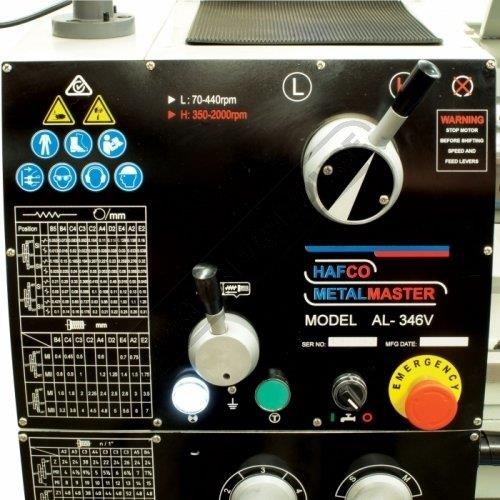

Inching button is incorporated on the control panel for convenient spindle speed selection

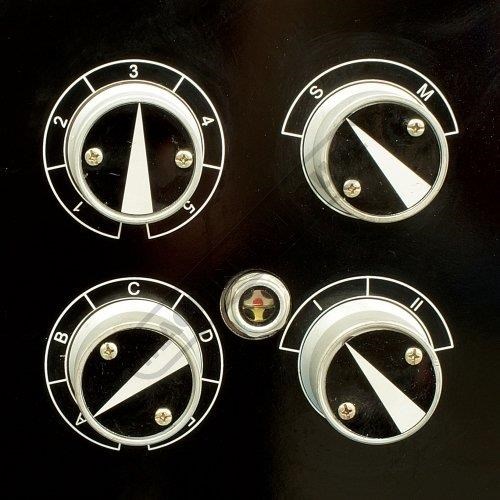

Enclosed quick action gearbox for thread cutting and auto feeding
Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs

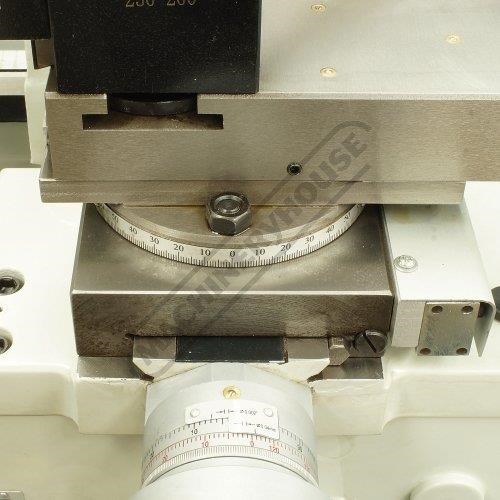

Dual calibrated dials (except for saddle hand-wheel)

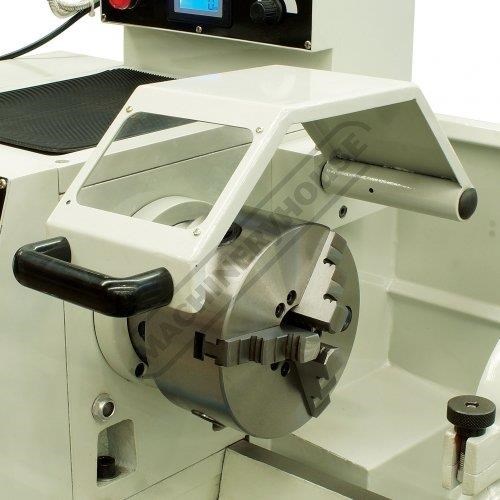

Chuck & change gear guards are fitted with micro switches
Coolant system with flexible hose
Includes:
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 4 holders

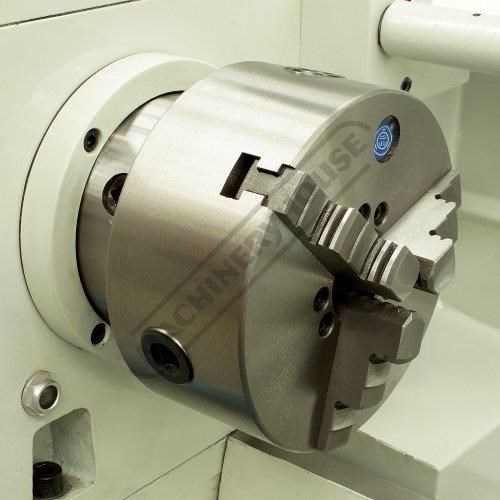

- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

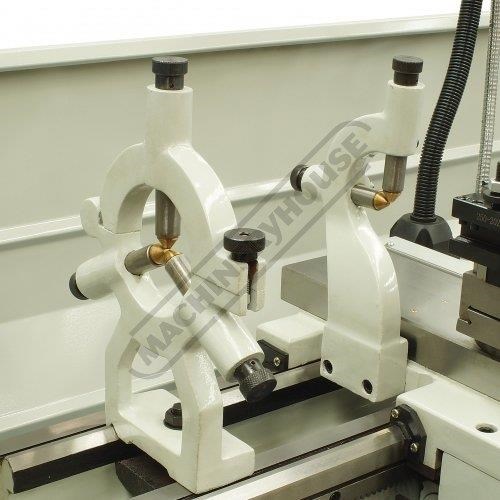

- Fixed steady
- Travelling steady
- Change gears
- Dead centres
- Thread-chasing dial
- LED work light
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet
Specifications:
ORDER CODE: L555D
MODEL: AL-346V
Swing Over Bed (mm): 330
Distance Between Centres (mm): 1000
Spindle Bore (mm): 40
Swing In Gap (mm): 450
Swing Over Cross-slide (mm): 200
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 165
Spindle Nose Size or Type: D1-4 Camlock
Bed Width (mm): 181
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 160
Compound Slide Travel (mm): 85
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.013 - 0.31
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.053 - 1.29
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~

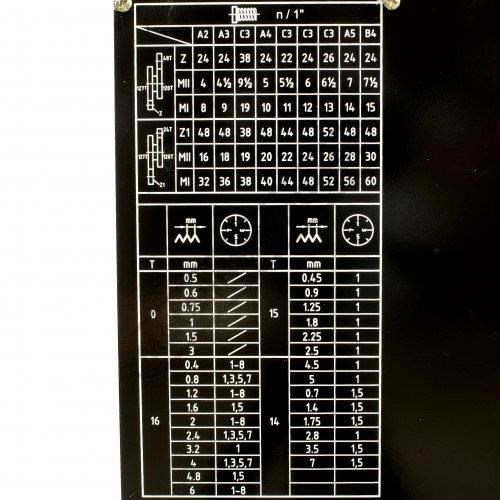

Metric Thread Steps & Pitch (No. / mm): 32 (0.4 - 7)
Imperial Thread Steps & TPI (No. / TPI): 36 (4-60)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200
Spindle Steps / Speeds (No. / rpm): Variable (70 - 2000)
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 636
