CLEANPACK 24/24/6

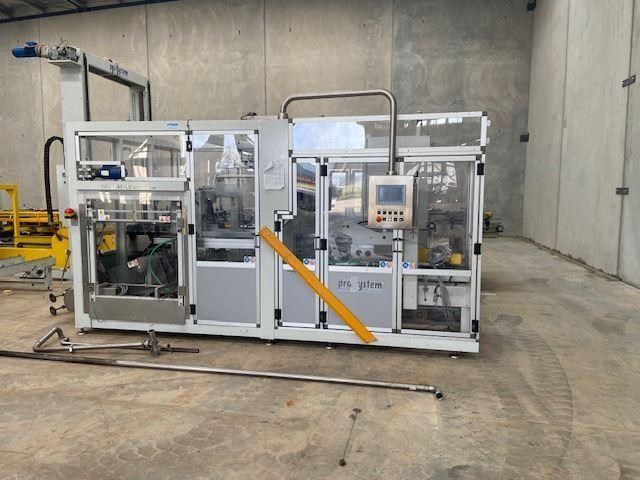

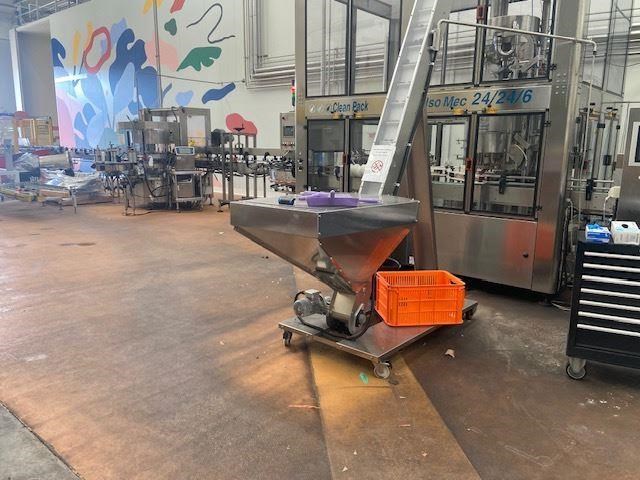

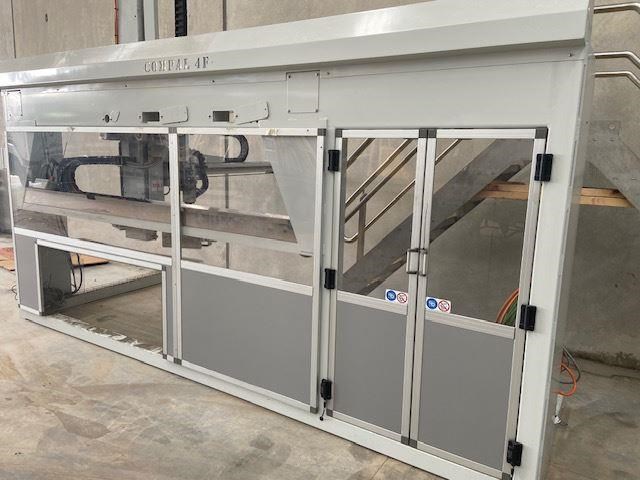

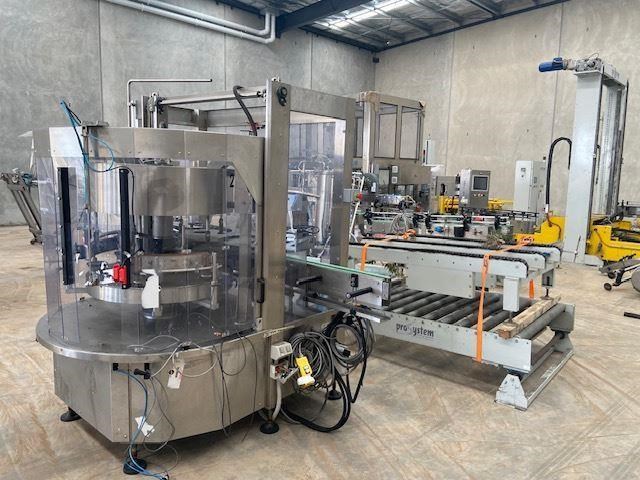

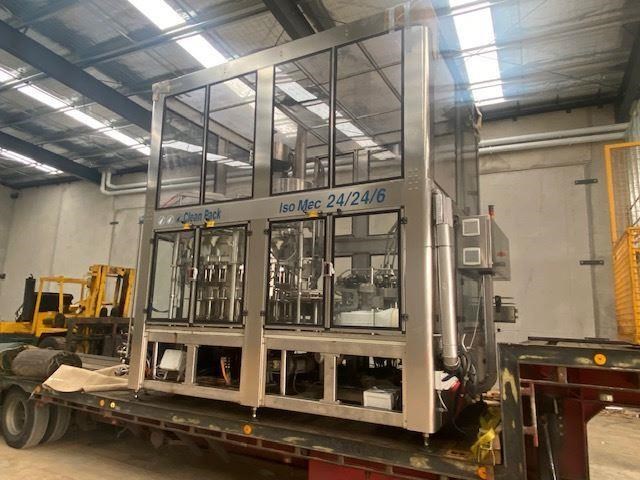

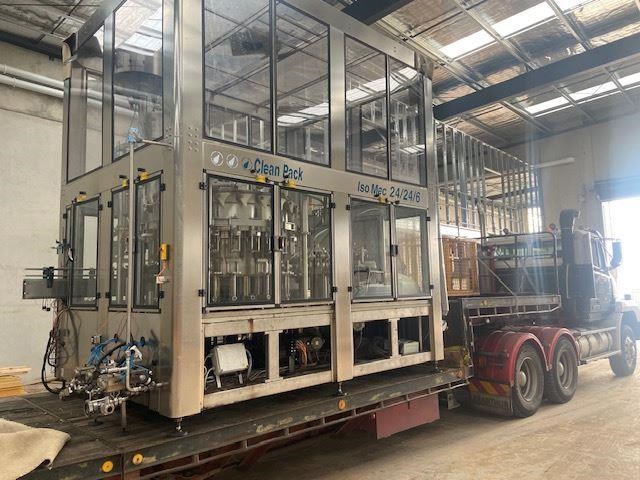

Kombucha Bottle filling Line for Glass and PET. Complete Line for sale consisting of the main components below. De Palletizer: AUTOMATIC DEPALLETIZER Mod. DPB-0051 designed to depalletize the following formats: GLASS BOTTLES - 330 ml - 750 ml PET BOTTLES - 300 ml - 700 ml Filler: ISO MEC 24 / 24 / 6 AV - PF PP Bottle Filler. Suitable to bottle KOMBUCHA into GLASS and PET BOTTLES by means of a THREE-BLOCK composed by a 24 head gripper rinsing turret, a 24 valve counter pressure filler and a 6 head capper Pick and place which can do ROPP and PRE-THREADED CAPS. Aluminium cap and plastic cap. Approx speeds below. 100 bpm (6.000 bph) by 300 and 330 ml 66 bpm (4.000 bph) by 700 and 750 ml Labeller: LABELMATIC R 6T AD S3 E2 it's a ROTARY 6 HEADAS labelling machine suitable to apply 1 self-adhesive labels by 2 labelling stations. The machine is suitable to process cylindrical and / or shaped bottles with application of WRAP-AROUND labels. Palletizer. COMPAL-4F-NVE-006-MEC-NS is designed to form the carton, fill it and seal it with adhesive tape at the top- bottom part and palletizing it, all in compact dimensions and spaces. COMPAL incorporates all 4 phases of the packaging process, coordinating them by SIEMENS programmable logic system AUTOMATIC STRETCH WRAPPER Mod. ROTAFILM -PR1200 SATURATION SYSTEM - Clean Pack. Carbon dioxide saturation at 3.000 Lt P hour Volume Material Packing speed Bottle per carton 330 ml. GLASS 60 bpm 6 (3x2) 330 ml. GLASS 120 bpm 12 (3x4) 750 ml. GLASS 60 bpm 6 (3x2) 750 ml. GLASS 120 bpm 12 (3x4) 300 ml. PET 60 bpm 6 (3x2) 300 ml. PET 120 bpm 12 (3x4) 700 ml. PET 60 bpm 6 (3x2) 700 ml. PET 120 bpm 12 (3x4)
