Contact Seller
Features
| Title | BRAMLEY 022E |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BRAMLEY |
| Model | 022E |
| Sale Price | $3,850 GST Exclusive |
| Listing Type | New |
| Stock Number | 143722 |
| RefCode | TA1266898 |
Description

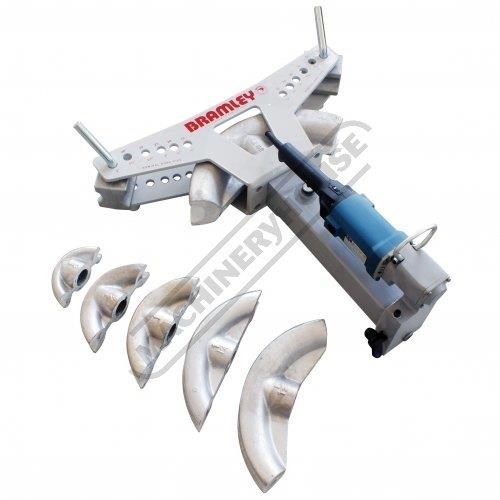

PB2-E Electric Hydraulic Pipe Bender ??1/2 - ??2`` NB Pipe Capacity Includes ??1/2``, ??3/4``, ??1``, ??1-1/4``
BRAMLEY PB2-E Electric Hydraulic Pipe Bender ??1/2 - ??2`` NB Pipe Capacity Includes ??1/2``, ??3/4``, ??1``, ??1-1/4``, ??1-1/2``, ??2`` Cast Aluminium Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P080
Features:
Easy and simple operation connect direct into 240V power
Light weight aluminium alloy formers with large angle of arc to support pipe during bending
Enclosed maintenance-free mono-block hydraulic system with automatic piston return
High thrust hydraulic pump with 150kN (15T) piston rating for high speed operation
Powerful 240V compact motor for efficiency with portability
Quick & easy to adjust guide pins to suit pipe
Bends pipe up to a maximum of 90??

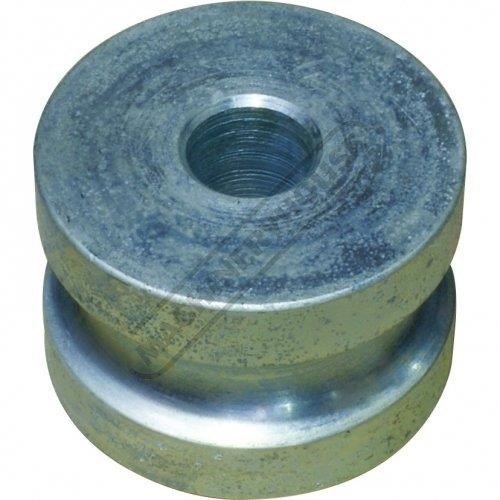

Complete with six formers two bobbins (support rollers) & pins
Includes:

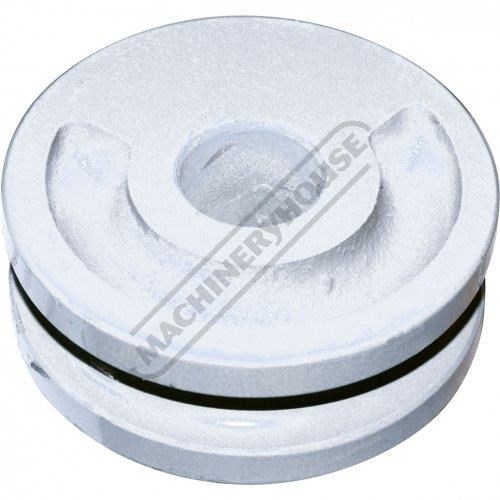

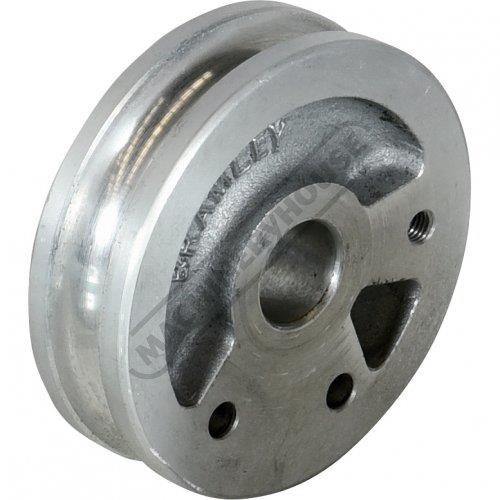

- Cast Aluminium Pipe Formers:
- ??1/2`` has 75mm centreline radius
- ??3/4`` has 105mm centreline radius
- ??1`` has 140mm centreline radius
- ??1-1/4`` has 175mm centreline radius
- ??1-1/2`` has 200mm centreline radius
- ??2`` has 240mm centreline radius
Specifications:
ORDER CODE: P080
MODEL: PB2-E
Material (Type): Pipe
Material Section (Type): Round
Machine (Type): Electric Hydraulic
Hydraulic Jack Size (Tonne): 15
Round Pipe Range (NB) - Mild Steel (inch / mm): ??1/2`` - ??2``
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2``, 3/4``, 1``, 1-1/4``,
Pipe Formers Included (inch / mm): 1-1/2``, 2``
Spigot Size on Ram (inch / mm): 38
Angle Capacity (deg): ~
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 68
To Purchase Online Please Visit The Machineryhouse Website & Search For 'P080'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
BRAMLEY PB2-E Electric Hydraulic Pipe Bender ??1/2 - ??2`` NB Pipe Capacity Includes ??1/2``, ??3/4``, ??1``, ??1-1/4``, ??1-1/2``, ??2`` Cast Aluminium Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P080
Features:
Easy and simple operation connect direct into 240V power
Light weight aluminium alloy formers with large angle of arc to support pipe during bending
Enclosed maintenance-free mono-block hydraulic system with automatic piston return
High thrust hydraulic pump with 150kN (15T) piston rating for high speed operation
Powerful 240V compact motor for efficiency with portability
Quick & easy to adjust guide pins to suit pipe
Bends pipe up to a maximum of 90??
Complete with six formers two bobbins (support rollers) & pins
Includes:
- Cast Aluminium Pipe Formers:
- ??1/2`` has 75mm centreline radius
- ??3/4`` has 105mm centreline radius
- ??1`` has 140mm centreline radius
- ??1-1/4`` has 175mm centreline radius
- ??1-1/2`` has 200mm centreline radius
- ??2`` has 240mm centreline radius
Specifications:
ORDER CODE: P080
MODEL: PB2-E
Material (Type): Pipe
Material Section (Type): Round
Machine (Type): Electric Hydraulic
Hydraulic Jack Size (Tonne): 15
Round Pipe Range (NB) - Mild Steel (inch / mm): ??1/2`` - ??2``
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2``, 3/4``, 1``, 1-1/4``,
Pipe Formers Included (inch / mm): 1-1/2``, 2``
Spigot Size on Ram (inch / mm): 38
Angle Capacity (deg): ~
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 68
To Purchase Online Please Visit The Machineryhouse Website & Search For 'P080'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
