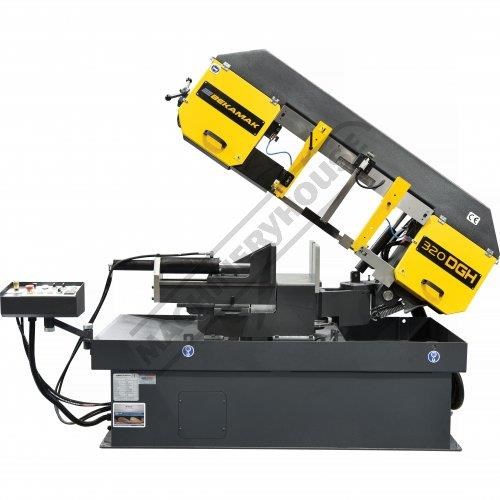

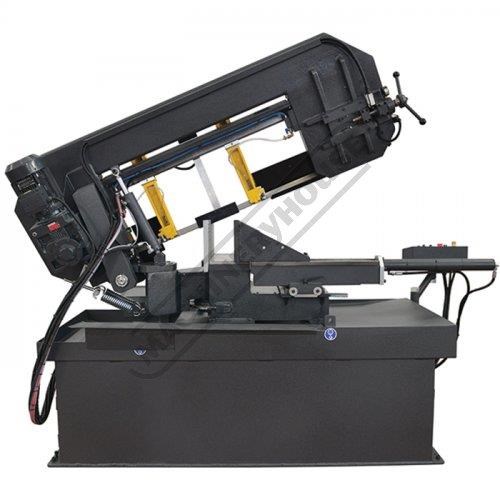

BMSY-320DGH Semi - Automatic Swivel Head-Dual Mitre Metal Cutting Band Saw Inverter Variable Cutting
BEKA-MAK BMSY-320DGH Semi - Automatic Swivel Head-Dual Mitre Metal Cutting Band Saw Inverter Variable Cutting Speeds, Dual Mitre Cuts Up To 60??, Hydraulic Vice Clamping & Includes Hydro Mechanical Blade Tension 450 x 320mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B136

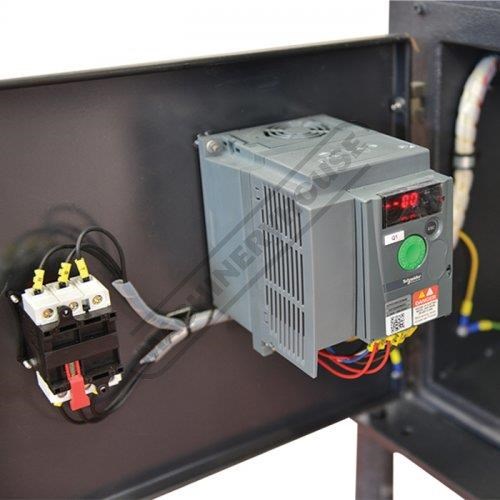

The European made BMSY-320DGH dual mitre up to -60??, semi-automatic band saw can cut a large 450 x 320mm rectangle. This saw can also cut up to 320mm round material at 90?? and with a quick release mechanism that allows the operator to change the mitre angle in seconds. The inverter controlled infinitely variable speed is easily adjusted to suit desired blade speed via the control dial mounted conveniently on the control panel. The vice uses a full stroke hydraulic clamping system and after the cut is complete the blade stops and the head lifts to the start position ready for the next piece to be cut.
The blades are guided via roller bearings & tungsten carbide inserts offering superior rigidity, cutting accuracy and longer blade life. The feed is hydraulic controlled and fine-tuned from the control panel for the perfect feed rate required to suit your application. This band saw has a powerful coolant system and a blade tensioning device that shuts down the machine if the blade breaks.
The BMSY-320DGH metal cutting saw series uses a wide 34mm saw blade by 1.1mm band thickness, making this machine a very precise mitre saw. This band saw is built to offer great reliability and cutting accuracy for many years and we believe this represents valuable quality an exceptional investment value.
Features:
Large 320mm round & 450 x 320mm (W x H) rectangular capacity
Swivel head dual mitre between +45?? and -60?? for easy angle cutting without moving material
Digital readout display mounted on pendant to measure angles for accurate mitre cutting
Inverter controlled infinitely variable blade speed 20-100mpm
Semi-automatic operation saw head returns to open height position after finishing the cutting process

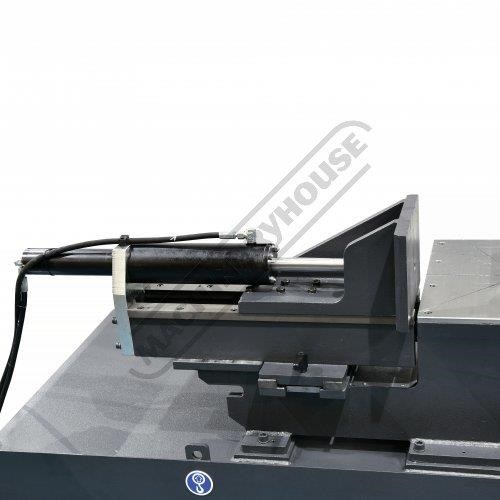

Full stroke hydraulic clamping vice provides quicker set-up of jobs
Hydraulic vice is adjustable to slide left & right side of the blade to suit multiple applications
Hydraulic operated system raising and lowering the cutting beam
Adjustable hydraulic feed cutting rate for multiple applications

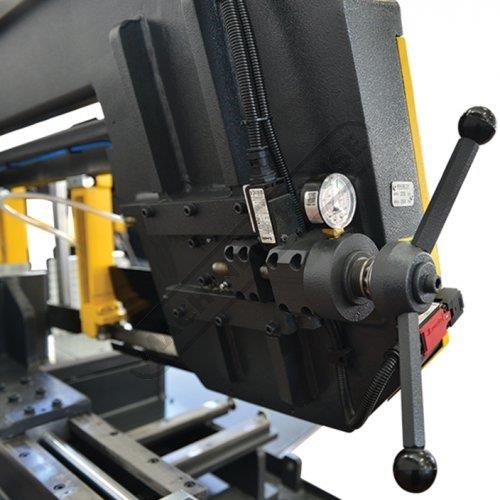

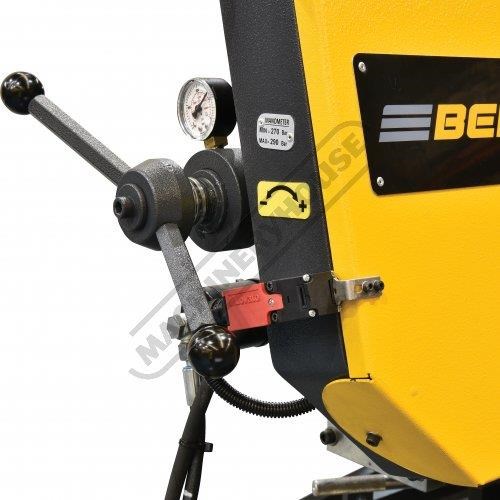

Manual hydraulic blade tension device with gauge
Blade breakage sensor fitted that automatically shuts machine off

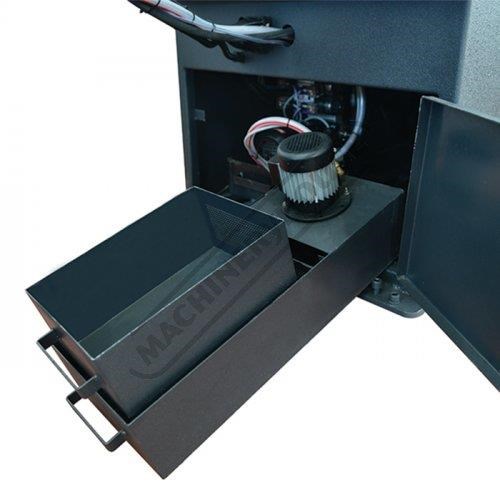

Built-in coolant system for maximum cutting efficiency

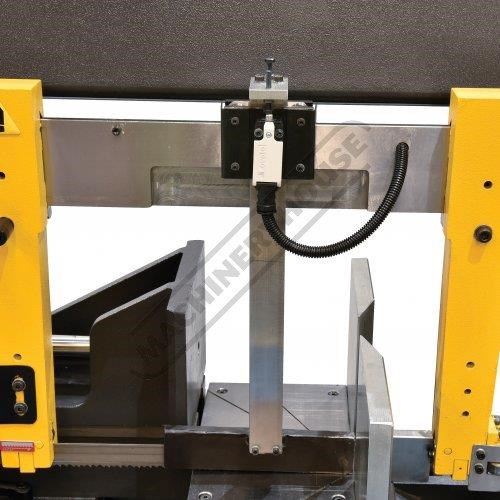

Limit switch stops machine and raises cutting beam when cut is complete

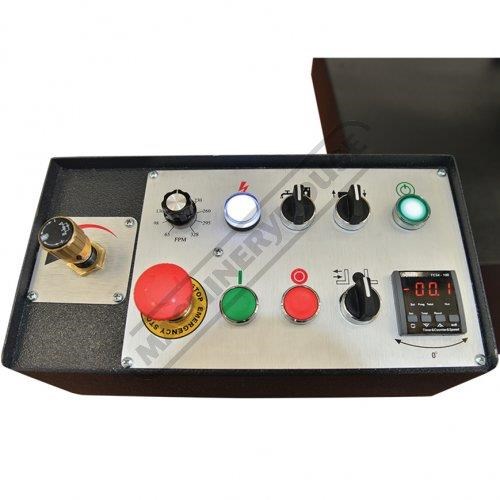

Swivelling pendant control panel mounted on base for quick operation
Heavy duty steel fabricated frame swivel centre & base
Heavy duty cast-iron blade wheels
Rigid cast-iron guide arms

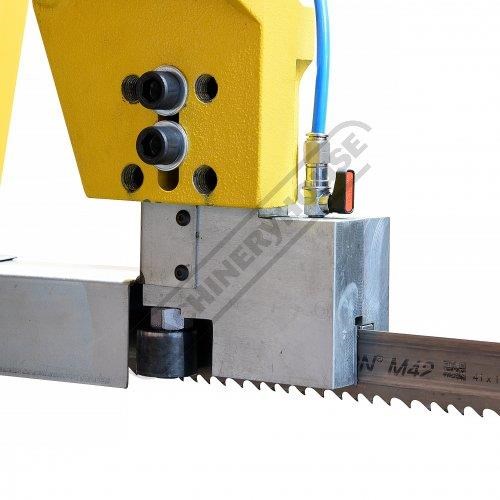

Roller bearing with carbide blade guide system provide additional blade support for accurate cutting

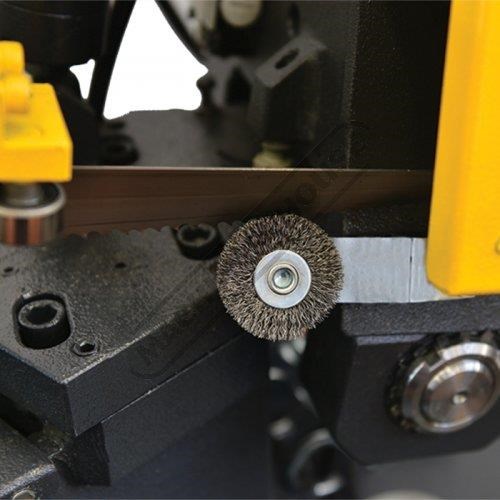

Wire wheel brush to clean swarf from blade
Quality Hydro-pack hydraulic system

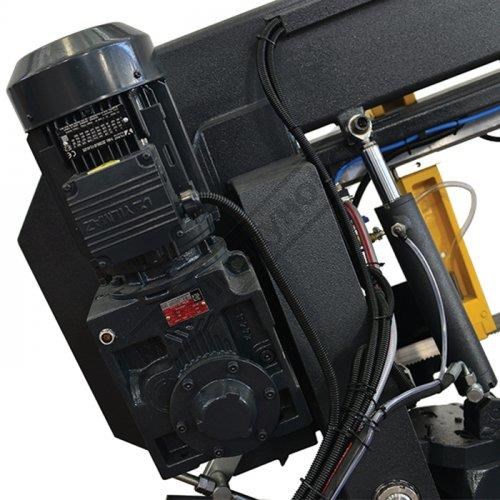

Industrial duty gearbox driven by a 2.25kW / 3hp 415V motor
All electrical components are of European quality supplied by Schneider Electric Omron & Relpol
Specifications:
ORDER CODE: B136
MODEL: BMSY-320DGH
Operation Type: Swivel Head - Dual Mitre
Operation Type: Semi - Automatic
Round @ 90?? (mm): 320
Round @ 45?? (mm): 320
Round @ 60?? (mm): 240
Square @ 90?? (mm): 320
Square @ 45?? (mm): 320
Square @ 60?? (mm): 220
Rectangle (W x H) @ 90?? (mm): 450 x 320
Rectangle (W x H) @ 45?? (mm): 330 x 320
Rectangle (W x H) @ 60?? (mm): 230 x 220
Coolant System: Yes
Table Working Height (mm): 860
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 4160 x 34 x 1.1
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1040
