BAUERMEISTER UT32

Universal Mill. Brand: Bauermeister, Model: UT32

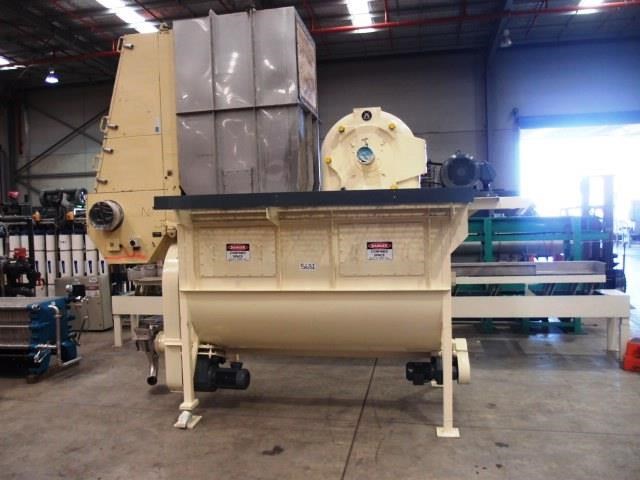

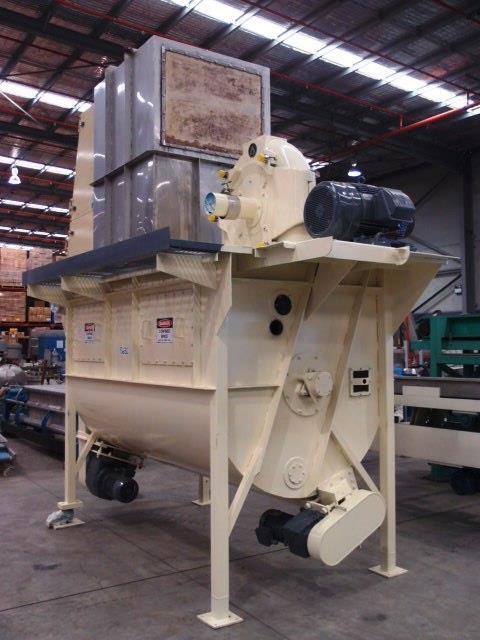

This a complete system manufactured by Bauermeister for the grinding, receival & blending of powders.
The versatile Universal Mill from Bauermeister allows maximum grinding flexibility for fine and ultra-fine particle size reduction.

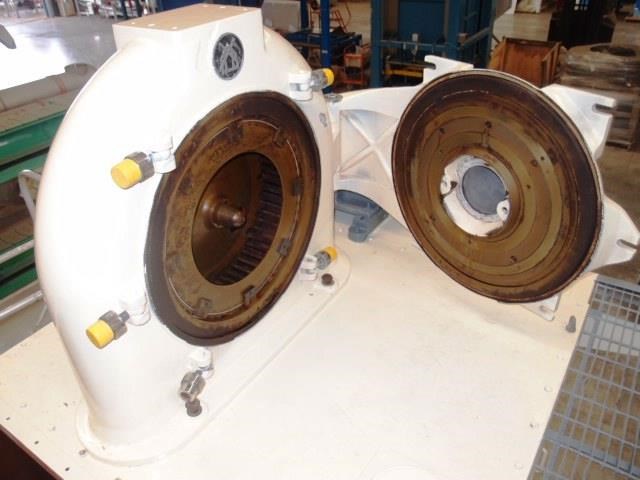

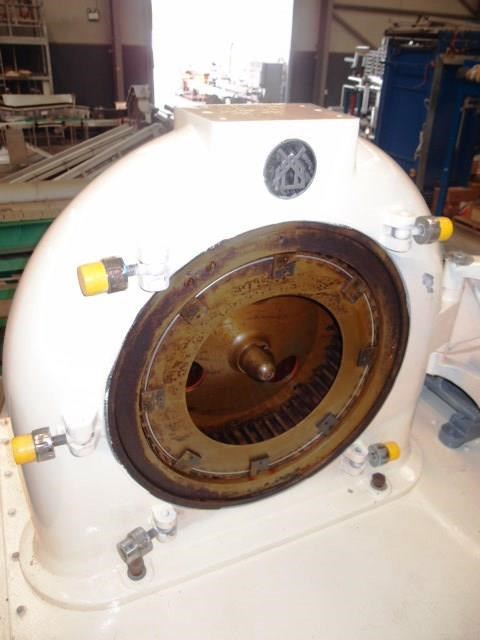

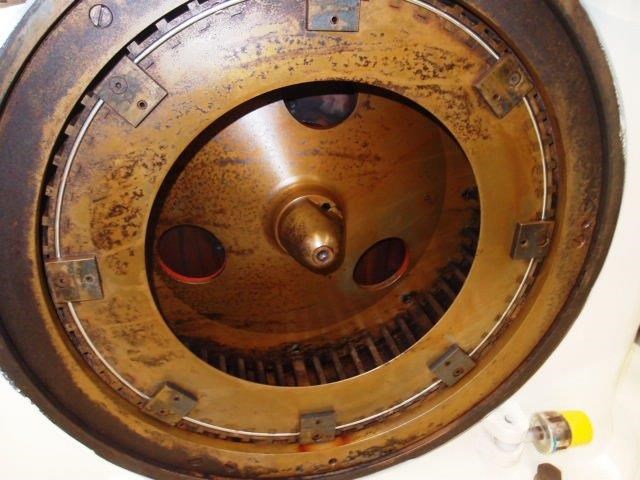

With interchangeable grinding elements, the Universal Mill is suitable for the vast majority of soft to medium-hard material grinding applications.
Our system comprises of the following main items.

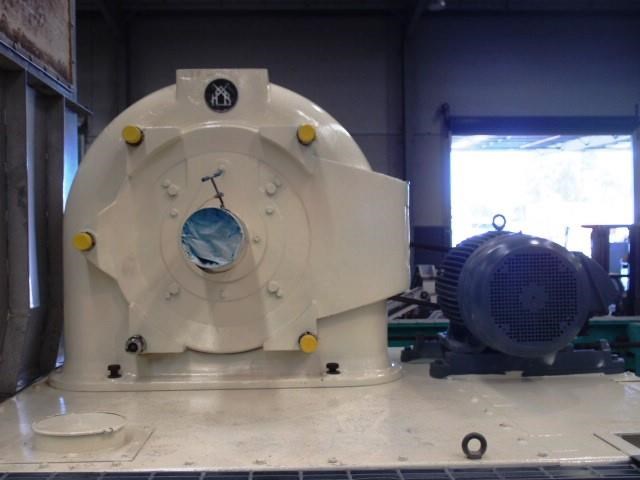

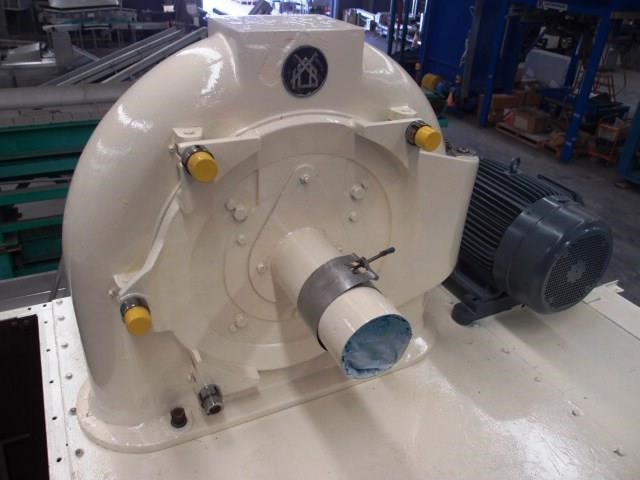

Universal Mill:
Model: UT32.
Machine RPM: 2600.
Motor: 37Kw, 415V.
Serial No. 940962.
Year: 1990.
Infeed Inlet: 165mm Dia.

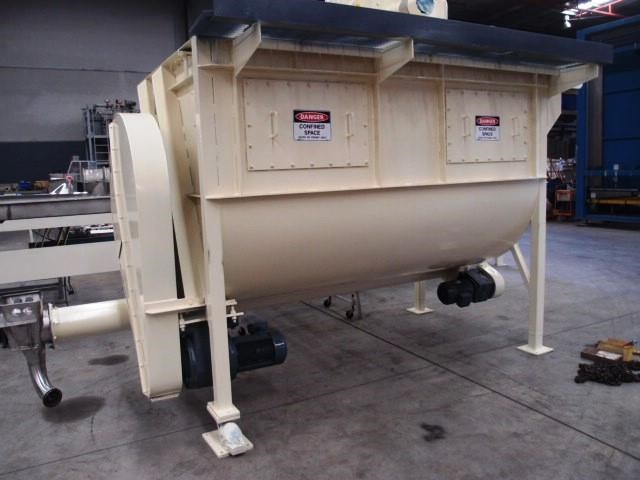

Product Revceival Blender:
Capacity: Approx 5 Cubic Mtr.
Internal Dimensions: 2500mm L x 1500mm W x 1500mm H.

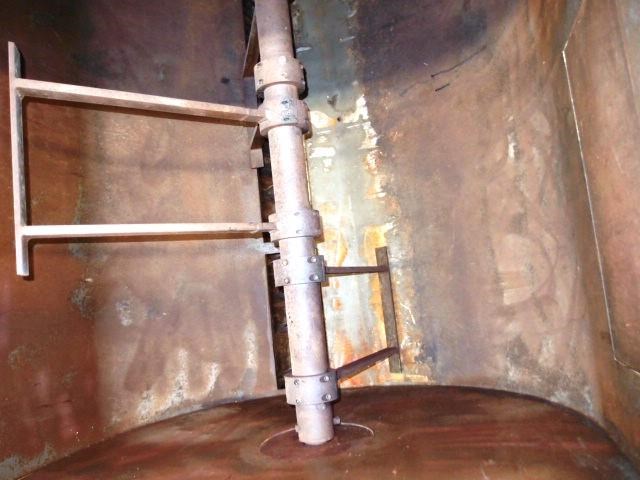

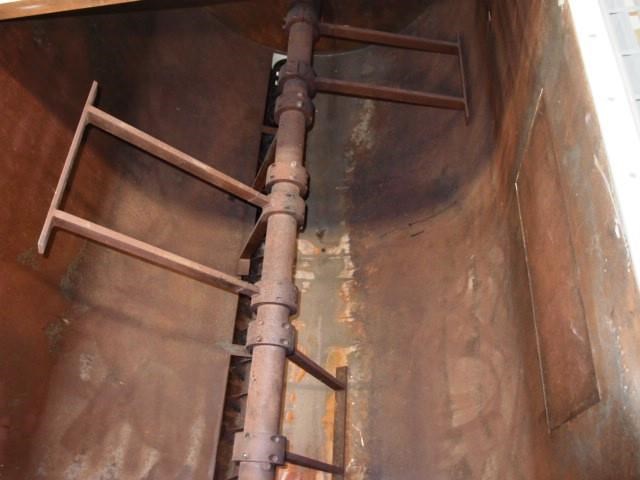

Diameter of Paddle: 1440mm.
Blender is chain driven by a 5.5Kw SEW gear motor.
Blender is fitted with a 200mm screw auger live bottom discharge driven by a 2.2Kw SEW gear motor.

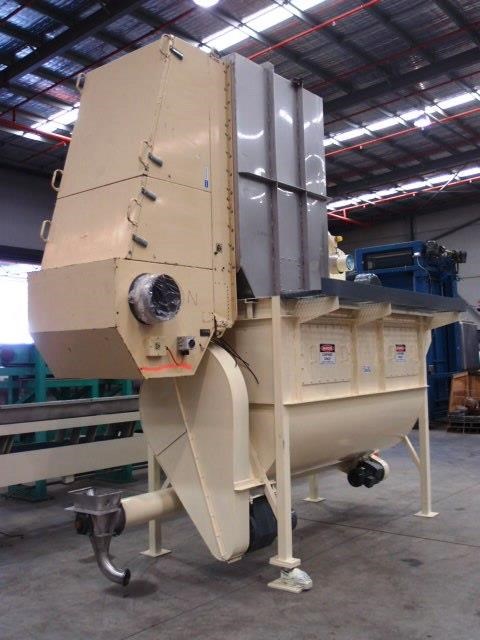

Dust Collector (Bin Type Reverse Pulse):
Brand: DCE Dalamatic.
Model: DLMV38/12K10.
Fan: 5.5Kw.
Number of Bags: 10.
Dimensions of Bags: 1600mm L x 1250mm W.

This system was previously used on sugar but is also suitable for a wide range of other products.
