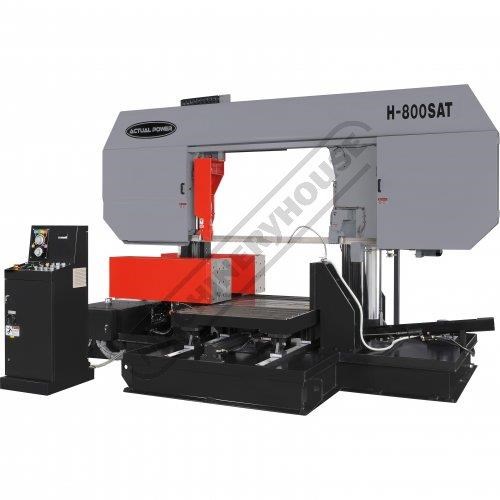

ACTUAL POWER H-800SAT

H-800SAT Semi Automatic Double Column Heavy Duty Metal Cutting Band Saw 800 x 800mm (W x H) Square ACTUAL POWER H-800SAT Semi Automatic Double Column Heavy Duty Metal Cutting Band Saw 800 x 800mm (W x H) Square Capacity CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: B130 Manufactured in Taiwan Features: Hydraulic table feed system operated via control panel Idle wheel motion proximity switches shuts off machine if blade breaks or slips Coolant system incorporating a wash down hose with trigger gun Inverter controlled infinitely variable blade speed 20-85mpm Precision feed pressure & feed rate dual valve system for optimal performance in any material Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life Hydraulic swarf conveyor directs excess waste to side of machine Large double columns precision ground for additional support Hydraulic lift up roller designed with manual material feed for set up Automatic (work height) material sensor with rapid approach Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2 Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped Synchronised power driven blade cleaning brush removes swarf from blade Dual vice clamping providing burr free cut Full stroke hydraulic cylinder vice provides quicker set-up of jobs Specifications: ORDER CODE: B130 MODEL: H-800SAT Operation Type: Fixed (Double Column) Operation Type: Semi - Automatic Round @ 90?? (mm): 800 Round @ 45?? (mm): ~ Round @ 60?? (mm): ~ Square @ 90?? (mm): 800 Square @ 45?? (mm): ~ Square @ 60?? (mm): ~ Rectangle (W x H) @ 90?? (mm): 800 x 800 Rectangle (W x H) @ 45?? (mm): ~ Rectangle (W x H) @ 60?? (mm): ~ Coolant System: Yes Table Working Height (mm): 680 Cutting Head Beam Type: Semi-Automatic Cutting Head Beam Return: Auto-Hydraulic Return Cutting Head Down Feed Control: Adjustable Hydraulic Vice Clamping Fixture: Automatic-Hydraulic Bundle Cutting Fixture: ~ Blade Steps / Speeds (m/min): Variable 20-85 Blade Size (L x W x T) (mm): 8300 x 54 x 1.6 Motor Power (kW / hp): 7.5 / 10 Voltage / Amperage (V / amp): 415 Nett Weight (kg): 6800 To Purchase Online Please Visit The Machineryhouse Website & Search For 'B130' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
